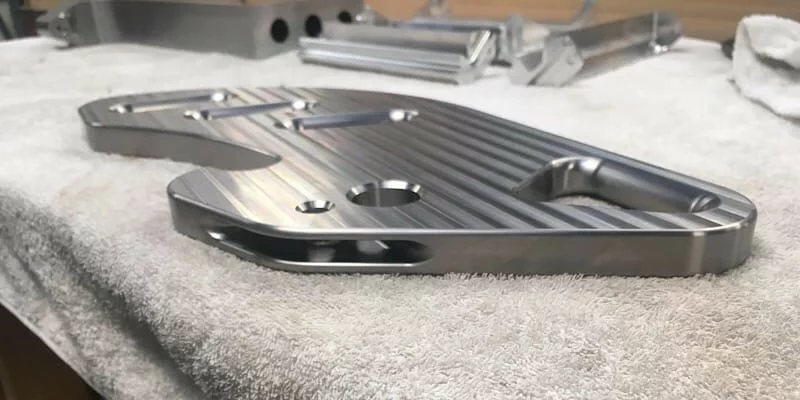

Due to its superior properties, titanium is one of the most wanted materials in CNC machining. But machining this titanium metal comes with a lot of challenges. In this article, we will discuss these challenges, their solutions, and give actionable tips to improve your results. Let’s explore how to master the art of titanium CNC machining while keeping costs manageable and quality high.
Why Choose Titanium for CNC Machining Parts?
The unique advantages of titanium make it incomparable for CNC machining. What makes industries like aerospace and medical depend on this metal so much? Its exceptional strength-to-weight ratio, resistance to corrosion, and biocompatibility make it stand out from the rest. Whether you design with pure titanium or its alloy, the material promises unbeatable performance.
Titanium material Suppliers often boast about the great strength-to-weight ratio and resistance to extreme temperatures that make it perfect for very demanding applications. Be it pure or alloyed, this metal is one of the most sought-after materials in industries where durability is a prime factor.
Useful Tips for Titanium Machining
Machining titanium can feel like an uphill battle. Does it sound familiar? You’ve just started a project, and your cutting tools wear out too quickly, or the workpiece overheats. Don’t worry—this is a common scenario. Here are some practical tips to make titanium cnc machining more efficient, from managing heat to optimizing speeds for longevity and precision.Machining of titanium metallic is complicated by its properties of low thermal conductivity and high strength. Some critical tips are as follows:
Sharp and Rigid Cutting Tools
Titanium’s toughness requires cutting tools to be sharp and rigid to resist the high cutting forces involved. Dull tools can lead to excessive heat generation and tool wear, thus resulting in poor results.
- Tool Material: Carbide or coated carbide tools are preferable for improved durability and heat resistance.
- Tool Design: Choose tools with positive rake angles to minimize cutting resistance.
Maintain Proper Cooling to Avoid Overheating
Titanium has low thermal conductivity, causing heat to concentrate at the cutting edge, which can degrade tool life and workpiece quality. Efficient cooling is critical.
- Coolant Type: Use high-pressure, water-based coolants designed for titanium machining.
- Application Method: Direct the coolant precisely at the cutting zone to dissipate heat effectively.
Optimize Cutting Speeds to Reduce Tool Wear and Ensure Precision
Balancing the level of cutting speeds and feeds is critical toward sustaining tool life while attaining high precision.
- Speed Control: Running machines at lower speeds results in reduced heat generation in the machine and minimizes tool wear.
- Feed Rate: The feed rate should be moderate to high to reduce the amount of time heat can accumulate in one spot.
- Chip Management: Chips must be removed quickly to avoid re-cutting, which may damage the workpiece.
Different Titanium Grades for CNC Machining
Did you know there are multiple titanium grades, each tailored for specific applications? Choosing the wrong grade can lead to costly inefficiencies. For example, pure titanium like Grade 1 is perfect for chemical resistance, but you might need Grade 5 titanium alloys for aerospace parts. Let’s dive deeper into the characteristics of these grades to help you pick the right one for your next project.
| Grade | Description | Properties | Applications |
| Grade 1 | Commercially pure, low oxygen. | – Excellent corrosion resistance.- High toughness, easy to machine.- Low strength. | – Chemical processing, heat exchangers, airframes, medical, automotive, desalination. |
| Grade 2 | Commercially pure, standard oxygen. | – Stronger than Grade 1.- High corrosion resistance.- Good formability, weldability. | – Aircraft, hydrocarbon processing, marine, medical, chlorate manufacturing. |
| Grade 3 | Commercially pure, medium oxygen. | – High strength, corrosion resistance.- Decent machinability, harder to form. | – Aerospace, marine, medical. |
| Grade 4 | Commercially pure, high oxygen. | – Highest strength among pure grades.- Excellent corrosion resistance.- Difficult to machine. | – Cryogenic containers, heat transfer systems, aviation, medical equipment, maritime, chemical process industries. |
| Grade 5 | Ti-6Al-4V alloy. | – High strength, corrosion resistance.- Excellent formability, poor machinability. | – Airframes, jet engines, medical, marine, power generation. |
| Grade 6 | Ti-5Al-2.5Sn alloy. | – Good weldability.- Stable at high temperatures. | – Rockets, jet engines, airframes, space vehicles. |
| Grade 7 | Ti-0.15Pd, corrosion-resistant. | – Superior corrosion resistance.- Excellent weldability. | – Chemical processing, marine, desalination. |
| Grade 11 | Ti-0.15Pd, ductile. | – Excellent corrosion resistance.- High formability. | – Desalination, marine, chlorate manufacturing. |
| Grade 12 | Ti-0.3Mo-0.8Ni alloy. | – High strength, great weldability.- Corrosion resistant. | – Heat exchangers, aircraft, marine, hydrometallurgy. |
| Grade 23 | Ti-6Al-4V ELI. | – Biocompatible, ductile.- Fair toughness, poor machinability. | – Medical implants, orthopedic pins, surgical staples. |
How to Choose the Right Cutting Tools for Machining Titanium？
Proper tool selection is paramount in machining raw titanium metal. Have you ever experienced premature tool failure or inconsistent machining results? This section will provide information on selecting durable carbide tools and coatings designed to withstand the challenges of titanium, ensuring longer tool life and smoother operations.Cutting raw titanium metal requires tools designed for high strength and heat resistance. Carbide tools are often preferred for titanium cnc machining, while coatings like TiAlN provide additional heat resistance.
Number of Flutes Consideration
During the machining of titanium, the number of flutes on the end mill is an important consideration. Increasing the flute count reduces chatter and helps achieve better cycle times. This is because a 10-flute end mill is best used on titanium because it minimizes radial engagement and keeps a smoother approach to the material.
Sharp Cutting Edges and Avoid Interrupted Cuts
Elasticity combined with a low Young’s modulus requires titanium is machined with sharp-edged tools that provide sufficient sharpness to effectively remove the material without rubbing and causing damage. When possible, avoid interrupted cuts because these conditions could hammer chips into the cutting edge, causing rapid tool wear or even failure.
Select the Correct Tool Coating
For titanium machining, application or usage of tool coatings helps enhance their performance and life span drastically. Coatings of particular note include variations with high lubricity to resist build-up edges, galling, and chip welding, such as TiAlN. A characteristic property of TiAlN, furthermore, is its properties concerning wear, specifically temperature resistance during titanium machining.
High-feed milling for machining titanium
High-feed mills are also quite suitable for machining titanium, as they maintain low radial and axial engagement. Such tools handle the difficult cutting conditions of titanium efficiently for smooth operations and longer tool life.
Surface Finishes for Machined Titanium Parts
Surface finishes can make or break your project. Imagine holding a beautifully polished or anodized titanium hammer head—the finish not only enhances its durability but also adds aesthetic appeal. Learn about various finishing techniques, like anodizing and polishing, and discover how they improve functionality and appearance in titanium cnc machining.Surface finishes can enhance the performance of anodized titanium parts. For instance, anodized titanium hammer heads offer improved durability and aesthetic appeal. Techniques like polishing, anodizing, or sandblasting can be applied depending on the application requirements.
Applications of Titanium Machined Parts
Titanium is a versatile alloy and opens many doors to boundless opportunities. Ever thought of how industries harness the potential of titanium metallic parts? From aerospace engine components to anodized titanium hammer heads in consumer goods, this metal impacts various applications. So let’s get into its very uses in reality and its impact on driving innovation further.
Aerospace Engine Parts
It is used in jet engines and airframes because it is lightweight and resistant to high temperatures, which helps increase the efficiency and performance of aircraft better.
Medical Implants
Anodized titanium gives higher biocompatibility and resistance to corrosion, hence is considered for implants such as hip replacements, bone screws, and surgical tooling.
High-End Consumer Products
The durability and style of titanium are well applied in high-end products, including anodized hammer heads, watches, and smartphone cases.
Common problems and solutions in titanium processing
Titanium machining offers immense benefits, but it comes with unique challenges. Below are common problems encountered during titanium processing and practical solutions to address them:
High Material Costs
Titanium is expensive, with high per-pound costs influenced by availability and processing complexities.
Solution: Source titanium from suppliers offering competitive pricing and consider bulk purchasing to reduce costs. Additionally, optimizing material usage and minimizing waste can help manage expenses effectively.
Wear and Overheating of the Tool
The low thermal conductivity of titanium causes heat generation around the cutting edge, leading to rapid wear of the tool.
Solution: Utilize cutting tools with the appropriate geometry and high thermal resistance properties. Ensure ample coolant flow in order to dissipate the heat and maintain good conditions for cutting.
Material Issues
The elasticity of titanium leads to work hardening; therefore, when compared to Inconel or stainless steel, machining becomes highly critical.
Solution: Employ sharp tools and cutting speeds that are lower to prevent work hardening. Again, choose the appropriate cutting methods for the peculiar properties of the material, such as climb milling or high-feed machining.
Surface Treatment Difficulties
Uniform finishing of raw or anodized titanium is difficult owing to its reactivity and sensitivity of the surface.
Solution: Play with anodizing voltages to achieve desired finishes, refine the process for consistency. For example, with items such as anodized hammer heads, retain tight process control over surface treatments.
Conclusion
CNC machining with titanium is both challenging and rewarding, all at the same time. Fully understanding the properties of the material and using appropriate titanium material suppliers will allow producers to manufacture high-quality parts with an advantage in durability and performance. It may be pure, alloys, or even developments that use titanium 3D printing; the secret is proper preparation and precision.
For businesses looking for reliable solutions, our CNC machining services have specialized handling of titanium metal projects. Reach out to us for effective and affordable machining of raw titanium metal, anodized titanium, and other high-performance materials according to your needs.
Final thoughts
As a professional with 15 years of CNC machining service experience, I’ve encountered titanium’s challenges firsthand, such as tool wear, overheating, and work hardening. For instance, during a project involving aerospace engine components, titanium’s low thermal conductivity caused rapid tool degradation. By optimizing cutting parameters and using high-performance coatings like TiAlN, we extended tool life by 40%, ensuring precision and efficiency.
At Ultirapid, we specialize in tackling such challenges with advanced CNC solutions. Our expertise in titanium machining has helped clients achieve consistent surface finishes, even for complex parts like medical implants. If you’re seeking reliable partners for titanium CNC machining, Ultirapid provides tailored solutions, backed by years of proven success in demanding industries.
Faqs
Is titanium harder to machine than steel?
Yes, titanium is harder to machine than steel. Its low thermal conductivity leads to heat buildup, causing rapid tool wear. Additionally, titanium is more prone to work hardening, requiring slower cutting speeds and sharp, coated tools. Its high strength and toughness also make it more challenging to cut compared to many steel alloys. Proper machining techniques, including high feed rates and effective cooling, are essential for efficient titanium processing.
What is the feed rate of milling titanium?
The feed rate for milling titanium typically ranges from 0.005 to 0.01 inches per tooth (IPT), or about 0.125 to 0.25 mm per tooth. For rough milling, this feed rate works well, but for finishing, it may need to be adjusted for a smoother surface. Proper coolant application and consistent feed rates are essential to prevent tool wear and work hardening, ensuring efficient machining without overheating.
How do you stress relief titanium after machining?
Stress relieving titanium after machining typically involves heat treatment. The process includes heating the titanium to 550°C to 650°C (1022°F to 1202°F) for 1 to 2 hours to reduce internal stresses. After soaking, the part should be cooled slowly to room temperature, avoiding rapid cooling that could induce distortion. This process improves the material’s stability, ensuring dimensional accuracy and preventing cracking, particularly in aerospace or medical applications where precision is critical.
What is the recommended cutting speed for titanium?
The recommended cutting speed for titanium typically ranges from 30 to 90 meters per minute (m/min), or about 100 to 300 feet per minute (ft/min). This varies based on factors like the specific titanium alloy, tool material (e.g., carbide tools can handle higher speeds), coolant application, and the type of machining operation. For roughing, lower speeds are preferred, while finishing can accommodate slightly higher speeds for better surface quality. Proper balance is essential to minimize tool wear.
