Background And Development Of CNC Machining
CNC machining began in the 1950s with the development of the first computer-controlled machine tools, culminating in the first practical CNC machine created in 1961 by the U.S. Navy. This innovation facilitated the widespread adoption of CNC technology across industries such as aerospace, automotive, and manufacturing. Key milestones include Seiko’s release of the first commercial CNC machine in 1965, advancements in high-speed machines during the 1980s, and the introduction of programming languages like G-code in the 1990s, enhancing usability.
Over the years, CNC machining has evolved with significant advancements in various technologies, including mechanical, hydraulic, pneumatic, electric, and solid-state systems. Innovations like high-speed and 5-axis machining have improved production rates and precision, while automation systems have boosted manufacturing efficiency. The introduction of 3D printing and CAD software in the 2010s further expanded capabilities for creating complex parts.
Today, CNC machining continues to evolve, focusing on trends such as artificial intelligence, the Internet of Things for real-time monitoring, and advancements in grinding and polishing technologies. These developments are shaping the future of the industry, ensuring CNC machining remains vital in modern manufacturing processes.

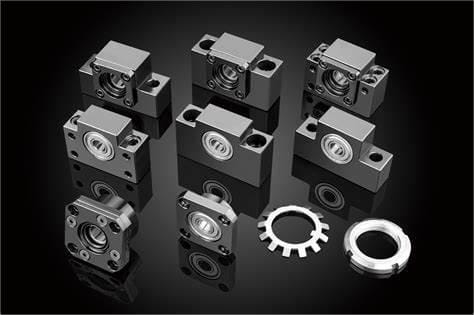

What Is CNC Machining ?
CNC machining (Computer Numerical Control Machining), also known as computer numerical control machining, is a technology that uses computer programs to control machine tools for precision machining.It automatically manages toolpaths, cutting speeds, and feeds through pre-written codes (e.g., G-code, M-code), allowing for accurate material machining.
This versatile process can produce a wide range of complex shapes and works with various materials, including metals, plastics, glass, ceramics, foam, paper, and wood. CNC machining enhances manufacturing possibilities, driving innovation and enabling fast, cost-effective production.
Compared to manual machining, CNC machining offers superior accuracy and repeatability, and it can create intricate shapes unattainable by manual methods. Most machine shops now have CNC capabilities, with common techniques including CNC milling, CNC turning, and CNC EDM wire cutting. The equipment for CNC milling is referred to as CNC milling machines or CNC machining centers.
Types Of CNC Machining
CNC Milling

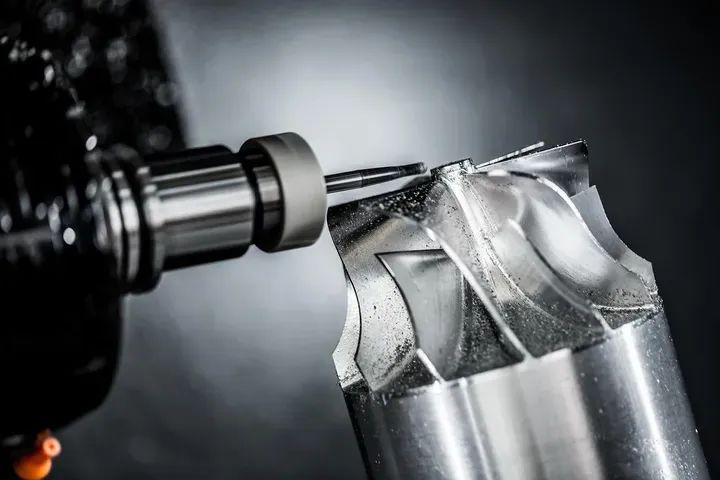

CNC milling is the most common CNC machining operation, using a rotating cutting tool to remove material from a block. A motor-driven spindle drives the tool into a workpiece on a worktable, with movements controlled by a microprocessor for precise access to various areas.
CNC milling can create complex features and shapes, including cubic geometries and contours, through various techniques like face milling and angular milling. It also supports drilling and routing but typically employs dedicated machines for these tasks.
CNC mills, particularly 3-axis and 5-axis types, allow movement in multiple directions, enhancing efficiency in manufacturing intricate parts. While 3-axis machines are user-friendly and cost-effective for simple geometries, they may struggle with complex designs due to limited reach.
CNC Turning
In CNC turning, the workpiece is secured on a rotating spindle, typically held by a chuck, with possible support from a tailstock. The process begins with the spindle spinning the workpiece at high speeds while a stationary cutting tool carves out the desired shape.
CNC turning primarily creates cylindrical, conical, and hexagonal features using techniques like straight cutting, taper cutting, facing, and grooving. Although turning is faster and simpler than milling, it is limited to geometries with rotational symmetry, making it ideal for mass-producing parts like washers and screws.
The cutting tool remains stationary, moving radially and lengthwise as the workpiece rotates, allowing precise shaping of the material.
CNC Drilling
NC drilling creates straight vertical holes in a workpiece using a rotating drill bit, ensuring precision in speed, depth, and position. While CNC milling and turning machines can also drill, dedicated CNC drilling machines are specifically designed for this purpose.
These machines typically feature a large platform and a gantry x-y motion system for accommodating flat workpieces. Advanced models may include turret drill heads that hold multiple bits, allowing for tool changes without halting operations.
CNC drilling operations are less complex and more cost-effective than milling. Common techniques include drilling, tapping, threading, and boring. Utilizing CAD and CAM software, CNC drilling achieves high precision and efficiency, with the drill bit moving according to a programmed sequence.
CNC Routing
CNC routing is a surface operation that removes material from a workpiece to create patterns or details. A rotating cutting tool penetrates the surface at shallow depths. While CNC milling machines can perform routing, dedicated CNC routers are simpler and optimized for speed and fluidity, making them ideal for softer materials like wood and aluminum.
CNC routers typically feature a gantry x-y motion system, accommodating large, flat workpieces. The cutting head moves in the Z axis at shallow depths, with teeth primarily at the tip. Advanced models may include an additional rotational axis for working on cylindrical surfaces. Common operations include routing, engraving, and shaping, guided by G-code instructions generated from CAD software.
CNC Cutting
CNC cutting involves slicing through a workpiece using a cutting tool or medium, typically applied to flat, thin materials. While commonly associated with sheet metal fabrication, CNC cutting also extends to various shapes and materials. Although CNC mills and lathes can perform cutting, the term primarily refers to operations on sheets and similar materials.
Different CNC cutting technologies vary based on the cutting method. Basic CNC cutters use sharp metal blades for soft materials, while advanced ones employ energy, liquids, or other mediums. Notably, CNC machines excel in precise, efficient cutting and can utilize advanced techniques like sinker EDM and wire EDM. Sinker EDM uses thermal erosion between two electrodes without direct contact, while wire EDM employs wire electrodes for accurate cuts.
Electronic Discharge Machining (EDM)
Electrical Discharge Machining (EDM) is a precise manufacturing method that removes material from a workpiece using thermal energy, rather than mechanical force. It effectively machines hard materials and complex shapes that are challenging for conventional techniques.
In the EDM process, a tool electrode, typically made of graphite or copper, and the workpiece are submerged in a dielectric fluid, preventing direct contact. Rapid electrical discharges generate intense heat, melting and vaporizing material at specific points, while the dielectric fluid cools the vaporized material and removes debris. EDM is widely used for manufacturing metal molds and precision machinery, especially where high accuracy and intricate geometries are essential.
What Is The Process Of CNC Machining?
CNC machining is a highly precise manufacturing process that involves the use of computer-controlled machines to create parts from various materials, including metals, plastics, and composites. The process typically follows several key steps, ensuring accuracy and efficiency in production.
Design And Planning
CNC Machining involves a detailed design and planning phase that lays the foundation for the entire process. Initially, engineers and designers create a precise 3D model using CAD software, ensuring all dimensions and specifications meet the project’s ultimate requirements. This model is then converted into a machine-readable format, allowing for accurate execution.
Once the design is finalized, planning focuses on selecting the appropriate materials, tools, and machining techniques. This includes determining the sequence of operations and setting parameters such as feed rates and cutting speeds. A thorough plan ensures efficiency and precision, ultimately leading to successful manufacturing outcomes.
Material Selection
Material selection in CNC Machining is crucial for achieving the desired properties and performance of the final product. Factors such as strength, durability, and machinability must be considered, ensuring that the chosen material aligns with the ultimate design specifications. Common materials include metals, plastics, and composites, each offering unique advantages for various applications.
Once potential materials are identified, they undergo evaluation based on factors like cost, availability, and compatibility with the machining process. Testing and prototyping may be employed to delve deeper into material performance under specific conditions. This comprehensive approach ensures optimal results in the manufacturing process.
Setup
The CNC machining setup is a critical stage that prepares the machine for production. It begins with securing the workpiece onto the machine’s bed, using fixtures or clamps to ensure stability during machining. Operators then load the appropriate cutting tools into the spindle, carefully selecting based on the material and desired operations.
After the physical setup, the next step involves programming the CNC machine with the correct parameters. This includes inputting tool paths, feed rates, and cutting speeds into the machine’s controller. A thorough setup minimizes errors, ensuring that the machining process runs smoothly and efficiently, ultimately leading to high-quality results.
Machining Operations
The machining process involves removing material from the workpiece to create the desired shape. This can be achieved through various methods, including:
Milling: A rotating cutting tool removes material from the workpiece, creating complex shapes and features.
Turning: The workpiece is rotated while a stationary cutting tool removes material, ideal for cylindrical parts.
Drilling: Holes are created in the workpiece using rotating drill bits.
Grinding: Abrasive wheels refine the surface finish of the part.
During these operations, the CNC machine follows the G-code instructions, which dictate the speed, feed rate, and tool paths. This automation ensures high precision and repeatability.
Quality Control
Quality control in CNC machining is essential to ensure that each component meets stringent specifications. Throughout the machining process, operators conduct regular inspections using tools like calipers and micrometers to measure dimensions and tolerances. This proactive approach allows for immediate adjustments, reducing the likelihood of defects.
After production, a final inspection is performed, often using advanced techniques such as coordinate measuring machines (CMM). This comprehensive assessment verifies that the finished product aligns with design requirements. Implementing robust quality control measures not only enhances product reliability but also boosts customer satisfaction and reduces waste in the manufacturing process.
Finishing

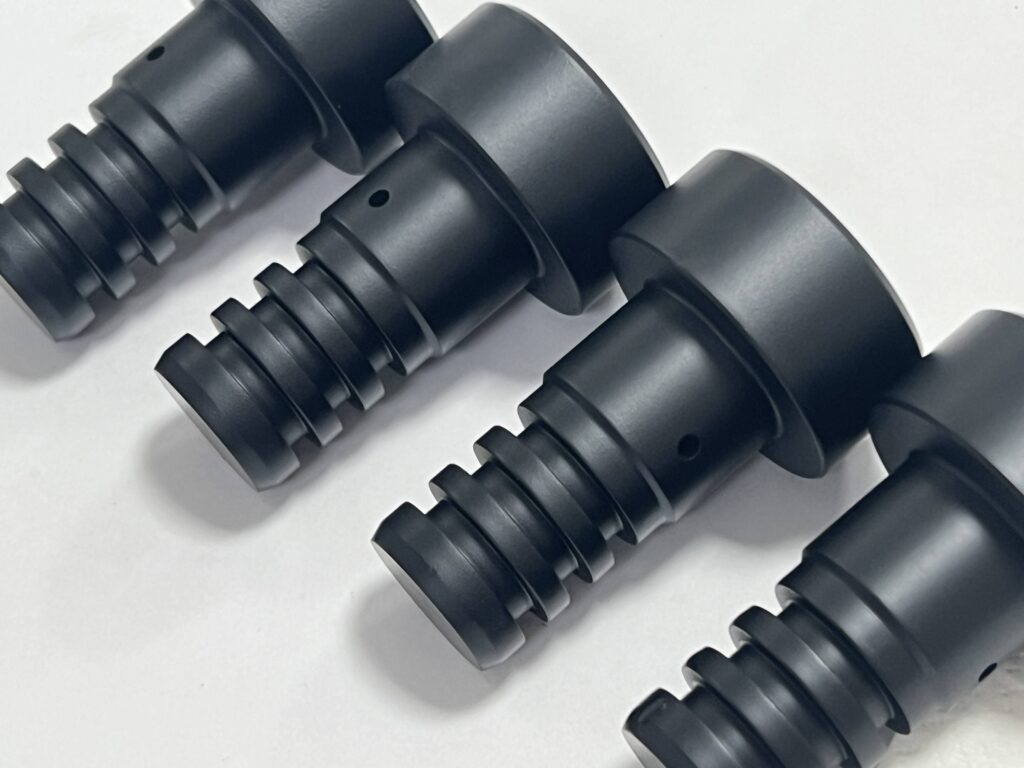

Finishing in CNC machining is the final step that enhances the surface quality and aesthetic appeal of a component. This process may involve techniques such as sanding, polishing, or anodizing, depending on the material and desired finish. Finishing ensures that the product not only meets functional requirements but also achieves the visual standards expected by customers.
During the finishing phase, precision is crucial to avoid altering the part’s dimensions. Operators often use specialized tools and methods tailored to the specific material. A thorough finishing process results in components that exhibit improved durability, corrosion resistance, and a professional appearance, thereby adding value to the final product.
Assembly And Testing
Assembly in CNC machining involves bringing together various components produced through machining processes. Skilled technicians carefully fit these parts, ensuring proper alignment and functionality. Thisstep may include installing fasteners, securing joints, and integrating additional systems, depending on the complexity of the assembly. Attention to detail during assembly is vital to achieve the desired performance of the final product.
Once assembled, rigorous testing is conducted to validate the functionality and quality of the product. This may involve operational tests, performance evaluations, and safety checks. By systematically assessing each aspect, manufacturers can ensure that the final product meets specifications and is ready for reliable use in its intended application.
In conclusion, CNC machining is a multifaceted process that combines advanced technology with precision engineering. By utilizing automated controls, it allows for the efficient production of high-quality parts tailored to specific applications across various industries, from aerospace to automotive and medical devices.
CNC Machining Material Selection
CNC machining is highly advantageous due to its compatibility with a wide variety of materials, including metals, plastics, composites, wood, glass, ceramics, foam, and paper. Predominantly, metals and thermoplastics are used across various industries for diverse applications, with Geomiq offering a broad selection of these materials. Each material has unique properties that make it suitable for specific uses, and several factors should be considered when selecting the best CNC machining material.
Metals

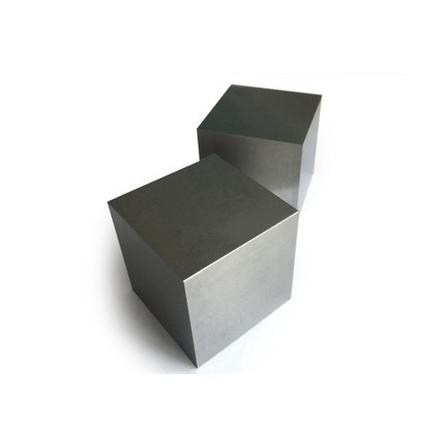

Metal is a prevalent material in CNC machining due to its hardness, which makes manual methods less efficient and precise. CNC machines streamline the process, allowing for faster and more accurate production of metal parts. Common metals used include aluminum, known for its high strength-to-weight ratio; magnesium, which is 33% lighter than aluminum and ideal for lightweight electronics; titanium, favored in aerospace and military applications for its toughness; and cast iron, which enables faster production than steel with less tool wear.
Alloys
CNC machines effectively process metal alloys alongside pure metals. Commonly machined alloys include stainless steel, known for its hardness and popularity; carbon steel, which is widely used due to its affordability and high strength; and brass, valued for its softness and corrosion resistance. Various brass types, with differing zinc and copper ratios, can also be precisely shaped using CNC machining.
Plastic
CNC machining is also effective for shaping plastic parts, with several common materials used in manufacturing. Nylon is strong, flexible, and fire-resistant, often replacing metal parts due to its lubrication properties. ABS is favored for prototypes over injection molding, while PMAA acrylic is a strong, transparent plastic used to replace glass in optical equipment and containers. PEEK, a high-cost plastic known for its exceptional temperature resistance, is machined for applications in aerospace and medical fields.
Wood
Wood is a common material in CNC machining, valued for its ease of processing due to its soft nature. It is primarily used in applications such as furniture manufacturing.
CNC Machining Surface Treatment
CNC machining surface treatment is essential for enhancing the performance, durability, and aesthetics of machined parts. Here are several key surface treatment methods commonly used after CNC machining:
Anodizing
Anodizing is a vital surface treatment for aluminum parts in CNC machining, enhancing corrosion resistance and surface hardness. This electrochemical process thickens the natural oxide layer, providing a durable finish that withstands wear and environmental factors.
Additionally, anodizing allows for the application of dyes, enablingaesthetic customization in various colors. This versatility makes anodized components ideal for industries such as aerospace and automotive, where both functionality and appearance are crucial for performance and branding.
Plating
Plating is a widely used surface treatment in CNC machining that involves applying a thin layer of metal onto a part’s surface. This process, which includes techniques like electroplating and electroless plating, enhances properties such as corrosion resistance, conductivity, and wear resistance.
Plating is a widely used surface treatment in CNC machining that involves applying a thin layer of metal onto a part’s surface. This process, which includes techniques like electroplating and electroless plating, enhances properties such as corrosion resistance, conductivity, and wear resistance.
Powder Coating
Powder coating is an effective surface treatment for CNC-machined parts, involving the application of a dry powder that is cured under heat. This process creates a tough, durable finish that offers excellent resistance to chipping, scratching, and fading.
Available in a wide variety of colors and textures, powder coating enhances both the appearance and longevity of components. It is particularly beneficial in industries such as automotive and consumer goods, where aesthetics and durability are crucial for product success.
Vapor Deposition
Vapor deposition is a sophisticated surface treatment method used in CNC machining, encompassing techniques like physical vapor deposition (PVD) and chemical vapor deposition (CVD). These processes involve depositing thin films of material onto a part’s surface, significantly enhancing properties such as hardness, wear resistance, and corrosion protection.
This treatment is particularly advantageous for components requiring precise specifications and high-performance characteristics, making it popular in industries like aerospace and electronics. The resulting finish not only improves functionality but also adds aesthetic value to the parts.
Sandblasting
Sandblasting, or abrasive blasting, is a crucial surface treatment in CNC machining that cleans and prepares parts for further finishing. By blasting surfaces with fine abrasive materials, it effectively removes contaminants, scales, and old coatings, resulting in a clean, uniform texture.
This process also enhances the adhesion of subsequent coatings or treatments, ensuring better performance and durability. Sandblasting is commonly used in industries such as automotive and manufacturing, where surface preparation is essential for quality and longevity of the final products.
Heat Treatment
Heat treatment is a vital surface treatment process in CNC machining that alters the mechanical properties of materials to enhance strength and durability. Techniques such as hardening and annealing are employed to improve toughness, hardness, and wear resistance, making components suitable for demanding applications.
This treatment is particularly important for metals like steel and alloys, which require specific properties to perform effectively in industries such as automotive and aerospace. By optimizing material performance, heat treatment ensures longer lifespans and greater reliability in finished products.
Polishing
Polishing is an essential surface treatment in CNC machining that aims to achieve a smooth, shiny finish on machined parts. This mechanical process removes surface imperfections, enhancing both aesthetics and functionality by reducing friction and improving wear characteristics.
Often used for metals and plastics, polishing is critical in industries like automotive and medical devices, where appearance and performance are paramount. The resulting finish not only elevates the visual appeal but also contributes to better performance in applications where precise tolerances are required.
Shot Peening
Shot peening is a specialized surface treatment in CNC machining that enhances the fatigue resistance of components. By bombarding the surface with small spherical media, this process induces compressive stresses, which helps improve the overall durability and longevity of parts.
Commonly used in aerospace and automotive industries, shot peening is particularly effective for high-stress applications such as gears and turbine blades. This treatment not only prolongs the lifespan of components but also reduces the likelihood of failure, ensuring reliability in critical systems.
Chemical Treatments
Chemical treatments are important surface processes in CNC machining that enhance the properties of materials. Methods like passivation for stainless steel improve corrosion resistance by removing free iron and promoting a protective oxide layer on the surface.
These treatments are essential in industries such as food processing and pharmaceuticals, where hygiene and material integrity are critical. By ensuring surfaces are well-protected, chemical treatments contribute to the longevity and reliability of components in demanding environments.
These surface treatments, applied after CNC machining, not only improve the functionality and lifespan of parts but also enhance their appearance, making them suitable for a wide range of applications across various industries.
CNC machining Conventional Parameters
In CNC machining, conventional parameters are crucial for ensuring quality and efficiency. Here are some key parameters:
Cutting Speed
Cutting speed is a critical parameter in CNC machining, referring to the relative speed between the cutting tool and the workpiece. Measured in meters per minute (m/min) or feet per minute (ft/min), the optimal cutting speed depends on factors such as material type, tool material, and machining operations.
Selecting the appropriate cutting speed enhances machining efficiency and surface finish while minimizing tool wear. Proper management of this parameter is essential for achieving high precision and maintaining the quality of machined components.
Feed Rate
Feed rate is a vital parameter in CNC machining, indicating the distance the cutting tool advances during each rotation or minute. Measured in millimeters per minute (mm/min) or inches per minute (in/min), the feed rate impacts the machining efficiency and surface finish.
An optimal feed rate balances productivity and tool longevity, as too high a rate can lead to poor surface quality and increased wear. Properly adjusting the feed rate is essential for achieving precise and high-quality machined parts.
Depth Of Cut
Depth of cut is a key parameter in CNC machining that specifies how deep the cutting tool penetrates the workpiece during each pass. Measured in millimeters or inches, it directly influences the material removal rate and the overall machining efficiency.
Selecting the appropriate depth of cut is crucial for balancing productivity and tool longevity. A deeper cut can increase material removal but may also lead to increased tool wear and potential damage, making careful adjustment essential for optimal results.
Tool Radius
Tool radius is an important parameter in CNC machining that affects the cutting performance and surface finish of machined parts. A smaller tool radius can create intricate features, while a larger radius is better suited for general cutting applications.
Choosing the appropriate tool radius is crucial for achieving high precision and smooth surfaces. An optimal radius helps minimize tool wear and enhances the quality of the finished product, making it a vital consideration in the machining process.
Tool Material
Tool material is a critical parameter in CNC machining, directly influencing cutting efficiency, durability, and overall performance. Common materials include high-speed steel (HSS), carbide, and ceramics, each offering unique advantages in terms of hardness and wear resistance.
Selecting the right tool material is essential for achieving optimal machining results. For instance, carbide tools excel in high-speed applications, while HSS tools are often preferred for their versatility and ease of sharpening. The choice impacts both productivity and tool longevity.
Coolant
Coolant is a vital parameter in CNC machining, used to reduce heat generated during cutting, improve surface finish, and extend tool life. Effective coolant application helps dissipate heat and minimize friction, which can otherwise lead to tool wear and part distortion.
Selecting the appropriate coolant type—such as oil-based, water-soluble, or synthetic—depends on the material being machined and the specific application. Proper coolant management enhances machining efficiency, ensuring high-quality results while maintaining optimal operating conditions.
Cutting Method
The cutting method is a crucial parameter in CNC machining that determines how the tool interacts with the workpiece. Common methods include continuous cutting and interrupted cutting, each suited for different applications and materials.
Choosing the appropriate cutting method affects efficiency, surface quality, and tool wear. Continuous cutting is ideal for smooth operations, while interrupted cutting is often used for machining features like slots or holes. Proper selection ensures optimal performance and quality in the finished components.
Proper adjustment of these parameters can optimize CNC machining for better results and cost-effectiveness.
What Are The Advantages Of CNC Machining?
CNC (Computer Numerical Control) machining offers numerous advantages that make it a preferred method in modern manufacturing.
Capability
CNC machining offers remarkable capability advantages, primarily through its precision and accuracy. Machines can produce parts with tolerances as tight as a few microns, ensuring that each component meets stringent specifications. This high level of precision is essential for industries such as aerospace and medical devices, where even minor deviations can lead to significant issues.
Additionally, CNC machining excels in producing complex geometries that would be challenging with traditional methods. The ability to program intricate designs into the machine allows for efficient production of detailed parts, enhancing overall manufacturing flexibility. This capability not only streamlines the production process but also fosters innovation in design.
Accuracy And Precision
CNC machining is renowned for its exceptional accuracy and precision, making it a preferred choice in high-stakes manufacturing environments. The use of computer-controlled systems allows for incredibly tight tolerances, often within microns. This ensures that each part produced consistently meets exact specifications, reducing the likelihood of errors and rework.
Moreover, CNC machines maintain this level of accuracy over extended production runs. Unlike manual machining, which can be prone to human error, CNC processes are repeatable and reliable. This consistency not only enhances product quality but also improves overall efficiency, making CNC machining indispensable in industries requiring high standards of performance.
Speed
CNC machining significantly enhances production speed, enabling manufacturers to produce parts more quickly than traditional methods. Once a design is programmed into the machine, CNC systems can operate continuously, reducing cycle times and allowing for rapid turnaround on projects. This efficiency is especially valuable in industries where time-to-market is critical.
Furthermore, CNC machining minimizes manual intervention, streamlining workflows and reducing bottlenecks. The automation of cutting, shaping, and finishing processes leads to faster production rates without compromising quality. This speed not only meets customer demands but also improves overall productivity, making CNC machining a vital asset in competitive manufacturing environments.
Versatility And Scalability
CNC machining offers remarkable versatility, enabling the production of a wide range of parts across various industries. It can work with diverse materials, including metals, plastics, and composites, and accommodate different machining processes like milling, turning, and grinding. This adaptability allows manufacturers to quickly switch between projects and meet unique design requirements, making CNC machining suitable for both prototyping and large-scale production.
Scalability is another key advantage, as CNC machining can easily ramp up production to meet increasing demand. Once a program is established, manufacturers can produce thousands of identical parts with consistent quality. This flexibility ensures that businesses can efficiently grow and adapt to market changes without significant retooling or downtime.
Material Compatibility
CNC machining boasts excellent material compatibility, making it suitable for a wide array of materials, including metals, plastics, and composites. This versatility allows manufacturers to select the best material for each specific application, whether it’s aluminum for lightweight components or stainless steel for durability. Such compatibility enables the production of parts that meet diverse performance and aesthetic requirements across various industries.
Moreover, CNC machining techniques can be adapted to optimize the properties of different materials. By adjusting cutting speeds, feed rates, and tooling, manufacturers can achieve superior finishes and precise tolerances regardless of the material used. This adaptability not only enhances product quality but also expands design possibilities, fostering innovation in engineering and manufacturing.
Automation And Efficiency
CNC machining significantly enhances automation in manufacturing processes, reducing the need for manual labor. Once programmed, CNC machines can operate independently, executing complex tasks without continuous supervision. This automation minimizes human error and ensures consistent quality across production runs, ultimately leading to higher reliability in manufacturing outputs.
In addition to automation, CNC machining improves efficiency by streamlining workflows. Machines can run continuously, optimizing cycle times and reducing downtime between setups. This efficient operation allows manufacturers to increase production rates and meet tight deadlines, ultimately driving profitability and enabling businesses to respond swiftly to market demands.
Reduced Waste
CNC machining contributes to reduced waste through its precise cutting and shaping capabilities. By using computer-controlled systems, the material is only removed where necessary, minimizing excess scrap. This efficient material usage not only conserves resources but also lowers costs associated with purchasing raw materials.
Additionally, the consistency and repeatability of CNC machining processes help maintain quality standards, reducing the likelihood of defects and rework. This further decreases waste, as fewer faulty parts need to be discarded or repaired. Overall, CNC machining enhances sustainability in manufacturing, promoting responsible resource management while improving economic efficiency.
Flexibility
CNC machining offers exceptional flexibility, allowing manufacturers to easily adapt to changing design specifications and production requirements. With the ability to quickly reprogram machines, businesses can switch between different parts and components without extensive downtime. This adaptability is particularly valuable in industries that demand rapid prototyping and customization.
Moreover, CNC machining can accommodate a wide variety of materials and processes, from intricate designs to large-scale production runs. This versatility ensures that manufacturers can respond swiftly to market trends and customer needs, ultimately enhancing their competitiveness. The flexibility of CNC machining empowers businesses to innovate while efficiently meeting diverse manufacturing challenges.
Enhanced Safety
CNC machining significantly enhances safety in manufacturing environments by reducing human interaction with dangerous machinery. With automated processes, operators can oversee multiple machines from a safe distance, minimizing the risk of accidents associated with manual handling and tool changes. This automation creates a safer workplace, allowing staff to focus on monitoring and quality control rather than direct operation.
Furthermore, CNC machines are designed with built-in safety features, such as emergency stops and protective enclosures, which further mitigate risks. By prioritizing safety, CNC machining not only protects workers but also fosters a more productive and efficient manufacturing atmosphere, ultimately benefiting the entire operation.
Improved Surface Finish
CNC machining significantly improves surface finish quality due to its precise control over cutting tools and processes. The ability to use specific feeds and speeds allows for smoother cuts, resulting in parts with superior surface textures. This enhanced finish is crucial in industries such as aerospace and medical devices, where aesthetics and functionality are paramount.
Moreover, CNC machines can employ various finishing techniques, suchas milling and grinding, to achieve the desired surface characteristics. This versatility not only meets stringent quality standards but also reduces the need for additional finishing processes. Overall, CNC machining delivers high-quality components that require minimal post-processing, increasing efficiency and reducing production time.
Cost Efficiency
CNC machining offers significant cost efficiency by minimizing material waste and reducing production time. Its precise cutting capabilities ensure that materials are utilized optimally, lowering raw material costs. Additionally, CNC machines can operate continuously, enabling high-volume production runs that spread setup costs over a larger number of parts, further driving down per-unit costs.
Moreover, the automation of CNC machining reduces labor expenses, as fewer operators are needed to oversee the process. This efficiency not only accelerates production but also enhances consistency and quality, reducing the likelihood of costly rework. Ultimately, CNC machining provides a competitive edge through its ability to deliver high-quality products at lower costs.
These advantages highlight why CNC machining is widely utilized across various manufacturing industries, providing high precision, efficiency, and flexibility to meet diverse production needs.
What Are The Limitations Of CNC Machining?
CNC machining, while highly advantageous, also has some limitations:
High Initial Costs
CNC machining comes with high initial costs, primarily due to the significant investment in equipment and technology. Advanced CNC machines can be expensive, and additional expenses for software, tooling, and setup can further strain budgets, especially for small businesses.
Moreover, training personnel to operate and program CNC machines adds to the overall costs. While these investments can lead to long-term savings through efficiency and reduced waste, the upfront financial barrier can be a challenge for many companies considering CNC machining.
Material Limitations
CNC machining has material limitations, as not all materials are suitable for this process. While metals and certain plastics can be machined effectively, some composites and soft materials may produce suboptimal results or be difficult to work with.Additionally, the properties of certain materials can affect machining speed and tool wear, leading to increased costs and potential quality issues. This restricts the versatility of CNC machining, requiring careful material selection to ensure optimal performance and outcomes in production.
Complex Setup
CNC machining often involves a complex setup process that can be time-consuming. Preparing the machine for a new project requires precise calibration, tool changes, and programming, which can lead to delays, especially for intricate parts.
Moreover, the complexity of the setup demands skilled personnel familiar with both the machinery and the programming software. This reliance on expertise can create challenges for companies lacking experienced staff, ultimately affecting productivity and increasing lead times for projects.
Dependence On Programming
CNC machining heavily relies on programming, making it vulnerable to errors in code. Mistakes in the programming phase can lead to defects in the finished product, requiring costly rework and wasted materials.
Additionally, debugging programming issues can be complex and time-consuming, particularly for intricate designs. This dependence onprecise coding means that manufacturers must invest in skilled programmers, and any oversight can disrupt production timelines and affect overall efficiency.
Maintenance Requirements
CNC machining requires regular maintenance to ensure optimal performance and precision. This upkeep can be time-consuming and may lead to unexpected downtime if not managed properly, affecting production schedules.
Moreover, the cost of routine maintenance and repairs can accumulate, impacting overall operational budgets. Companies must invest in skilled technicians to perform maintenance, adding another layer of complexity and expense to CNC operations, which can be a challenge for smaller businesses with limited resources.
Size Constraint
CNC machining has size constraints, as each machine has a maximum workpiece capacity determined by its design. Larger parts may require specialized equipment, limiting the range of projects that can be handled.
Additionally, managing oversized components can complicate the setup and machining processes, leading to increased costs and longer lead times. This limitation can restrict manufacturers from taking on certain contracts or projects, potentially impacting their competitiveness in the market.
Limited Flexibility For Small Batches
CNC machining often lacks flexibility for small batch production, as the high setup costs may not be economical for limited runs. The initial investment in programming and tooling can outweigh the benefits when producing only a few parts.
Moreover, the time required for machine setup and calibration can extend lead times, making it challenging to efficiently fulfill low-volume orders. This limitation can deter manufacturers from pursuing niche markets or custom projects, impacting their overall competitiveness.
Learning Curve
CNC machining has a steep learning curve, requiring operators to master both the machinery and programming software. New users may find it challenging to understand complex codes and machine settings, which can lead to errors during operation.
Additionally, the need for specialized training can increase onboarding time and costs for companies. This reliance on skilled personnel means that businesses must invest in ongoing education, which can strain resources and affect productivity, especially in fast-paced environments.Understanding these limitations is crucial for manufacturers to effectively leverage CNC machining in their operations.
The Different Types Of CNC Machines
CNC (Computer Numerical Control) machines play a vital role in modern manufacturing, facilitating the precise and efficient production of complex shapes and designs. These machines come in various types, each tailored for specific applications:
CNC Milling Machines
CNC milling machines use rotating cutting tools to remove material from a workpiece, allowing for the precise shaping of complex parts. They are commonly employed in industries like aerospace and automotive for machining components such as gears and brackets.
These machines can operate on various axes, enhancing their versatility. With advancements in technology, CNC milling machines now offer improved speed and accuracy, making them indispensable in modern manufacturing processes.
CNC Turning Machines
CNC turning machines are designed to produce cylindrical parts by rotating the workpiece against a cutting tool. This process allows for high precision in shaping components like shafts, engine blocks, and fittings. Their automation leads to reduced labor costs and enhanced production efficiency.
These machines come equipped with advanced features such as live tooling, enabling additional operations like drilling and milling during the turning process. As technology evolves, CNC turning machines continue to improve in speed and accuracy, making them essential in industries such as automotive and aerospace manufacturing.
CNC Machining Centers
CNC machining centers are versatile machines that integrate milling, drilling, and tapping functions into a single unit. This multifunctionality allows for the efficient production of complex parts, reducing setup times and increasing overall productivity. They are commonly used in industries such as aerospace, automotive, and mold-making.
Equipped with automated tool changers, CNC machining centers can switch between various cutting tools seamlessly, enhancing flexibility and precision. As technology advances, these centers are incorporating more sophisticated features, such as 5-axis capabilities, which allow for machining intricate geometries and improving surface finishes significantly.
CNC Grinding Machines
CNC grinding machines are essential tools in precision manufacturing, utilizing abrasive wheels to achieve fine surface finishes and tight tolerances. These machines are often employed in industries like aerospace, automotive, and toolmaking, where precision is critical.
Equipped with computer numerical control, CNC grinding machines can automate complex grinding processes, enhancing efficiency and consistency. They can handle various materials, including metals and ceramics, making them versatile for producing components such as gears, shafts, and molds. As technology advances, these machines continue to evolve, incorporating features like adaptive control and advanced diagnostics to further improve performance.
CNC Routers
CNC routers are versatile machines designed for cutting and shaping various materials, including wood, plastic, and composites. They are commonly used in industries like furniture manufacturing and signage for their precision and ability to create intricate designs.
These machines operate using computer numerical control, enabling automated processes that enhance speed and consistency. Their multi-axis capabilities allow for complex contouring, making them ideal for detailed prototypes and custom components in modern manufacturing.
CNC Laser Cutters
CNC laser cutters utilize focused laser beams to precisely cut and engrave various materials, including metals, plastics, and wood. Their high accuracy and clean edges make them ideal for intricate designs and detailed work.
These machines are widely used in industries like manufacturing, signage, and prototyping. They offer quick setup and adaptability, allowing for rapid production while minimizing material waste, making them essential in modern fabrication processes.
CNC Plasma Cutters
CNC plasma cutters use a high-velocity jet of ionized gas (plasma) to cut through conductive materials like steel and aluminum. They are known for their speed and efficiency, making them suitable for both thick and thin metal sheets.
These machines are commonly used in industries such as metal fabrication, automotive, and construction. Their ability to produce clean cuts with minimal waste enhances productivity, making CNC plasma cutters a vital tool in modern manufacturing.
CNC Electrical Discharge Machining (EDM)
CNC Electrical Discharge Machining (EDM) utilizes electrical discharges to erode material from a workpiece, allowing for the creation of complex shapes and fine details. This technique is particularly effective for hard materials like tool steel.
EDM is widely used in industries such as aerospace and automotive for producing molds, dies, and intricate components. Its precision and ability to machine challenging geometries make CNC EDM an essential process in modern manufacturing.
CNC 3D Printers
CNC 3D printers utilize additive manufacturing techniques to create objects layer by layer from digital models. They are widely used for rapid prototyping, allowing designers to quickly iterate on concepts and test functionalities without the lengthy production times associated with traditional methods.
These printers can work with a variety of materials, including plastics, metals, and ceramics, enabling the production of complex shapes that would be difficult to achieve with conventional machining. As 3D printing technology continues to evolve, CNC 3D printers are becoming integral in industries such as aerospace, automotive, and healthcare for creating customized parts and components.
CNC Bending Machines
CNC bending machines are essential tools in metal fabrication, allowing for precise bending and shaping of sheet metal. Utilizing computer numerical control, these machines enable operators to create complex geometries with high accuracy, making them vital in industries like automotive and aerospace.
By automating the bending process, CNC bending machines enhance productivity and consistency, reducing human error and production time. They can handle various materials and thicknesses, making them versatile for different applications, from simple brackets to intricate components required for sophisticated machinery.
CNC Waterjet Cutters
CNC waterjet cutters utilize high-pressure streams of water mixed with abrasive materials to cut through a wide range of materials, including metal, stone, and glass. This versatile technology is known for its ability to produce intricate designs with minimal heat-affected zones, preserving material integrity.
The precision and adaptability of CNC waterjet cutters make them ideal for various industries, from aerospace to architecture. They can handle thick materials and complex shapes, making them a popular choice for both prototyping and production applications, enhancing efficiency and reducing waste.
CNC Welding Machines
CNC welding machines automate the welding process, ensuring consistent and precise welds across various materials. By using computer numerical control, these machines can execute complex welding patterns, enhancing accuracy and reducing human error. This automation leads to higher production speeds and improved quality.
In industries such as automotive and aerospace, CNC welding machines are invaluable for joining metal parts efficiently. Their ability to adapt to different welding techniques, like MIG and TIG, allows for versatility in applications, making them essential for both large-scale manufacturing and custom projects.
Each CNC machine type has unique capabilities, suited for specific tasks, making them indispensable in manufacturing. The choice of machine depends on project requirements, including material type, complexity, precision, and speed needed. This diversity allows industries to optimize production processes, improve quality, and enhance efficiency.
The Importance Of CNC Machining
CNC machining is essential in modern manufacturing due to its ability to produce high-precision parts with exceptional repeatability. This technology employs computer-controlled machines to execute complex designs accurately, significantly reducing human error and ensuring consistency across large production runs. Industries such as aerospace, automotive, and medical rely on CNC machining for components that meet stringent quality standards, as even minor deviations can lead to critical failures.
Another key advantage of CNC machining is its efficiency. Automated processes streamline production, reducing labor costs and lead times. Unlike traditional methods, CNC machines can operate continuously, maximizing output and minimizing downtime. Additionally, they are capable of working with a wide range of materials, including metals, plastics, and composites, making them versatile for various applications.
CNC machining also fosters innovation by enabling the creation of complex geometries that are often difficult or impossible to achieve through manual machining. This opens up new possibilities for product design, allowing engineers and designers to explore intricate shapes and features that enhance functionality and aesthetics.
Furthermore, the technology supports rapid prototyping, allowing businesses to quickly develop and test new products. This adaptability is crucial in today’s fast-paced market, where speed and flexibility are vital for staying competitive. Overall, CNC machining not only enhances productivity and quality but also drives innovation and efficiency in the manufacturing sector.
Applications Of CNC Machining

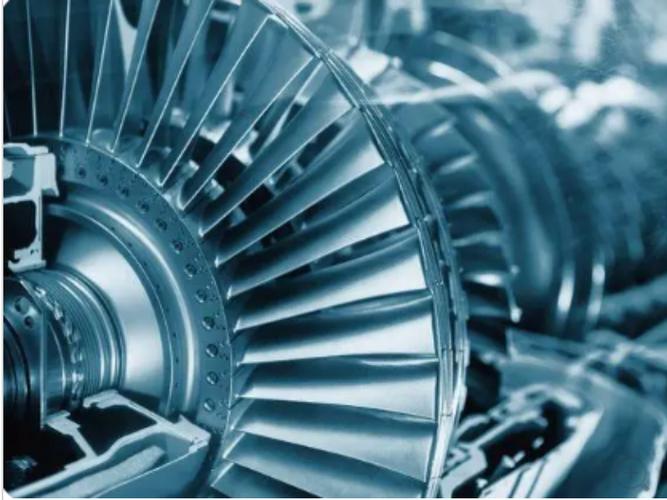

Aerospace
CNC machining is vital in the aerospace industry, enabling the production of complex components like engine parts, landing gear, and structural elements. Its precision ensures that parts meet strict safety and performance standards, using materials such as aluminum, titanium.
Additionally, CNC machining facilitates rapid prototyping, allowing for quick design iterations and testing. The automation inherent in CNC processes improves efficiency and minimizes human error, making it essential for both production and maintenance. As aerospace technology advances, CNC machining continues to evolve, incorporating innovations like 5-axis machining to meet the industry’s demands.
Automotive Manufacturing
CNC machining plays a crucial role in automotive manufacturing by producing high-precision components such as engine blocks, transmission parts, and chassis elements. The ability to machine complex geometries ensures that each part fits perfectly, contributing to vehicle performance and safety.
Moreover, CNC machining supports rapid prototyping, allowing manufacturers to test designs before full-scale production. This reduces development time and costs. The automation and repeatability of CNC processes also enhance efficiency, minimizing waste and maximizing productivity, making it an essential technology in the competitive automotive industry.

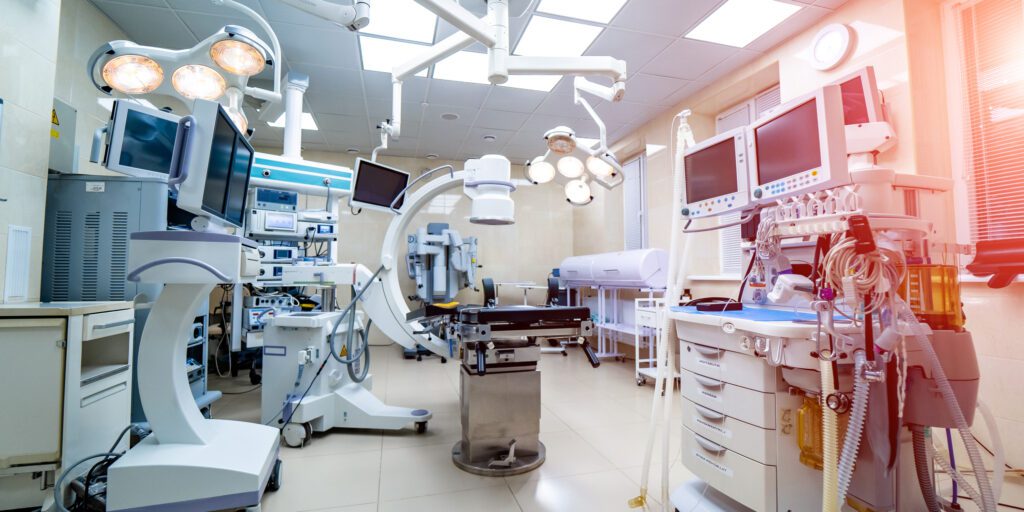

Medical Devices
CNC machining is vital in the medical device industry, enabling the production of high-precision components like surgical instruments, implants, and prosthetics. Its ability to create complex shapes ensures thatdevices meet stringent safety and performance standards.
Additionally, CNC machining facilitates rapid prototyping, allowing for quick iterations and testing of new designs. This capability accelerates the development process while maintaining accuracy. The automation of CNC machines also enhances consistency, ensuring that each device produced meets the exact specifications required for patient safety and effective treatment.
Electronics
CNC machining plays a crucial role in the electronics industry by producing intricate components such as housings, connectors, and circuit boards. Its precision allows for the tight tolerances needed in electronic devices, ensuring proper fit and function.
Moreover, CNC technology supports rapid prototyping, enabling engineers to test and refine designs quickly. This adaptability helps manufacturers keep pace with the fast-moving electronics market, ensuring that new products can be developed efficiently while maintaining high quality and reliability in every component produced.
General Manufacturing
CNC machining is integral to general manufacturing, providing precision and efficiency across various industries. It enables the production of intricate parts with tight tolerances, making it suitable for components used in machinery, tools, and equipment.
Moreover, CNC machines can work with diverse materials, including metals, plastics, and composites. This versatility allows manufacturers to meet specific design requirements while ensuring consistent quality and reduced production time, thereby enhancing overall productivity and competitiveness in the market.
Case Studies
CNC machine tools are essential in modern manufacturing, offering efficient and precise production capabilities that are highly valued in high-volume settings. Various types of CNC machines, such as Vertical Machining Centers (VMCs), Horizontal Machining Centers (HMCs), and Universal Machining Centers (UMCs), each have unique characteristics suited for different machining needs. For instance, VMCs excel in high-precision tasks, while HMCs facilitate continuous production and save space.
Bunorm Maschinenbau AG, a Swiss family-owned company with over 37 years of experience in CNC manufacturing, recently upgraded its Forest-Liné series of machines. This retrofit improved the CNC system while maintaining original functionality and ensuring compatibility with over 10,000 existing programs. The upgrade enhances productivity, reduces downtime, and eliminates defects, all without the need for a new foundation.
Additionally, SyBridge offers a user-friendly platform for CNC programming, allowing users to easily start projects by uploading part designs and receiving instant DFM feedback. This streamlined process lowers barriers for customers, enhancing project startup efficiency.
Future Trends In CNC Machining
Automation And Smart Manufacturing
The future of CNC machining is heavily influenced by automation and smart manufacturing. Integrating advanced robotics and AI technologies allows for greater efficiency, enabling machines to operate autonomously and adapt to changing production needs. This shift reduces labor costs and minimizes human error, ensuring consistent quality.
Additionally, smart manufacturing leverages IoT connectivity to provide real-time data analysis and monitoring. This technology enables predictive maintenance, optimizing machine uptime and performance. As these trends continue to evolve, CNC machining will become increasingly responsive, agile, and capable of producing complex parts with minimal intervention, driving innovation across various industries.
Applications Of New Materials
Future trends in CNC machining increasingly focus on the application of new materials, enhancing capabilities and expanding possibilities in manufacturing. Advanced composites, such as carbon fiber and glass fiber, are becoming more prevalent, allowing for lighter, stronger components that meet modern engineering demands.
Moreover, the rise of materials like titanium and specialized alloys requires CNC machines to adapt, incorporating advanced tooling and techniques for optimal machining. As industries seek to innovate and improve performance, CNC machining will play a crucial role in processing these new materials, driving advancements in sectors such as aerospace, automotive, and medical devices.
Integration With LoT
The integration of CNC machining with the Internet of Things (IoT) is setto revolutionize manufacturing processes. By connecting machines to a network, manufacturers can collect real-time data on performance, maintenance needs, and production efficiency. This data-driven approach enables predictive maintenance, reducing downtime and optimizing machine usage.
Additionally, IoT integration allows for remote monitoring and control of CNC machines, enhancing flexibility and responsiveness in production environments. Manufacturers can quickly adapt to changes in demand and streamline operations, leading to improved productivity and reduced costs. Overall, this trend will significantly enhance the agility and competitiveness of CNC machining.
Hybrid Processes With Additive Manufacturing
The future of CNC machining is increasingly leaning toward hybrid processes that combine traditional subtractive methods with additive manufacturing (AM). This integration allows for the creation of complex geometries and lightweight structures that would be challenging to achieve through machining alone. By first 3D printing a component and then refining it with CNC machining, manufacturers can enhance precision while reducing material waste.
Moreover, hybrid processes facilitate rapid prototyping and design iteration, enabling quicker response times to market demands. This synergy not only expands the capabilities of CNC machining but also fosters innovation in product development, paving the way for more efficient and versatile manufacturing solutions.
Conclusion
CNC machining is a revolutionary technology that has transformed the manufacturing industry through its high precision, efficiency, and versatility in producing components across various sectors. This highly automated process employs computer numerical control to cut and shape materials like metals, plastics, and composites, starting with detailed designs in CAD software, which are converted into G-code via CAM software.
While CNC machining excels in creating complex geometries and ensuring repeatability, it also faces limitations such as high setup costs and material waste. Finished parts undergo rigorous inspection to meet design specifications, and additional processes may be applied to achieve the desired quality. Overall, CNC machining remains an essential tool in modern manufacturing, driving efficiency and quality across multiple industries.
Final Thoughts
CNC machining (Computer Numerical Control machining) is a technology that uses computer-controlled machines to achieve high-precision manufacturing. It is suitable for materials like metals, ceramics, and more. By programming instructions, machines can automatically perform complex operations such as cutting, drilling, and grinding, ensuring the accuracy and consistency of parts. CNC machining is widely used in aerospace, navigation, automotive, and other industries, particularly for complex designs and tight tolerances.
As someone with 15 years of CNC Machining Service experience, I highly recommend Ultirapid. We have extensive expertise in CNC machining, especially for demanding projects, and have provided precision manufacturing solutions for numerous aerospace and navigation companies, ensuring top-quality delivery.
Faqs
What Is CNC Machining In Simple Terms?
CNC machining is a process that uses computer programs to control machines that cut and shape materials like metal and plastic. It allows for precise and automated production of complex parts, making it faster and more accurate than traditional manual methods.
Why Is CNC Machining Used?
CNC machining is used for its precision, efficiency, and versatility. It enables the production of complex shapes with high accuracy, reduces manual labor, and minimizes errors. Industries rely on CNC machining for rapid prototyping, mass production, and consistent quality across various materials, making it essential in modern manufacturing.
What Is The Most Used CNC Machine?
The most used CNC machine is the CNC milling machine. It is versatile and can perform various operations like cutting, drilling, and shaping materials, making it essential in many manufacturing processes.
How CNC Is Working?
CNC works by using computer software to control machine tools. First, a design is created in CAD, then converted into G-code through CAM. The CNC machine follows this code to automate precise movements, cutting or shaping materials according to the design specifications.
What Is The Principle Of CNC Machining?
The principle of CNC machining is based on the use of computer numerical control to automate machine tools. It involves creating a digital design, converting it into G-code, and directing the machine to precisely move cutting tools along defined paths, enabling accurate material shaping and machining.
What Are Advantages Of A CNC Machining?
CNC machining offers several advantages, including high precision and repeatability, which ensure consistent quality in manufactured parts. It also enhances production speed and efficiency, allowing for complex designs and shapes to be created with ease. Additionally, CNC machining reduces human error and labor costs while improving safety in the workplace. Lastly, it provides versatility, enabling the use of various materials and the ability to switch between different production tasks quickly.
What Are The 5 Common Types Of CNC Machines?
The five common types of CNC machines are CNC milling machines, CNC lathes, CNC routers, CNC plasma cutters, and CNC laser cutters.
