Computer Numerical Control (CNC) grinding is a cutting-edge machining technology that blends precision engineering with advanced computer software to produce high-quality components with exceptional accuracy. Have you ever wondered how intricate metal parts with flawless finishes are made? CNC grinding is the answer. In this article, we’ll explore CNC grinding .
What Is Grinding?
Grinding machining stands as a pivotal aspect in mechanical processing, its fundamental principle lies in the friction, abrasion, and scraping actions between the abrasive tool (such as a grinding wheel) and the surface of the workpiece. By employing high-speed rotation of the abrasive tool, material is removed from the surface of the workpiece, thereby achieving the desired dimensions, shapes, and surface quality. The characteristics of grinding machining reside in its high efficiency, precision, and broad material applicability. It is capable of rapidly and accurately processing various metals, non-metals, and other materials, with the resulting workpiece exhibiting high surface quality and low roughness. Additionally, grinding machining allows for the adjustment of grinding parameters according to specific requirements, catering to diverse machining precision and surface quality demands.
Types Of Grinding Machining
Grinding operations in CNC machining encompass a diverse array of techniques and methodologies, each tailored to meet specific requirements for precision, surface finish, and material removal rates. From surface grinding to cylindrical grinding, these processes play a crucial role in achieving the desired dimensions and surface qualities of machined components. Here, we delve into some of the most commonly used types of grinding operations in CNC machining:

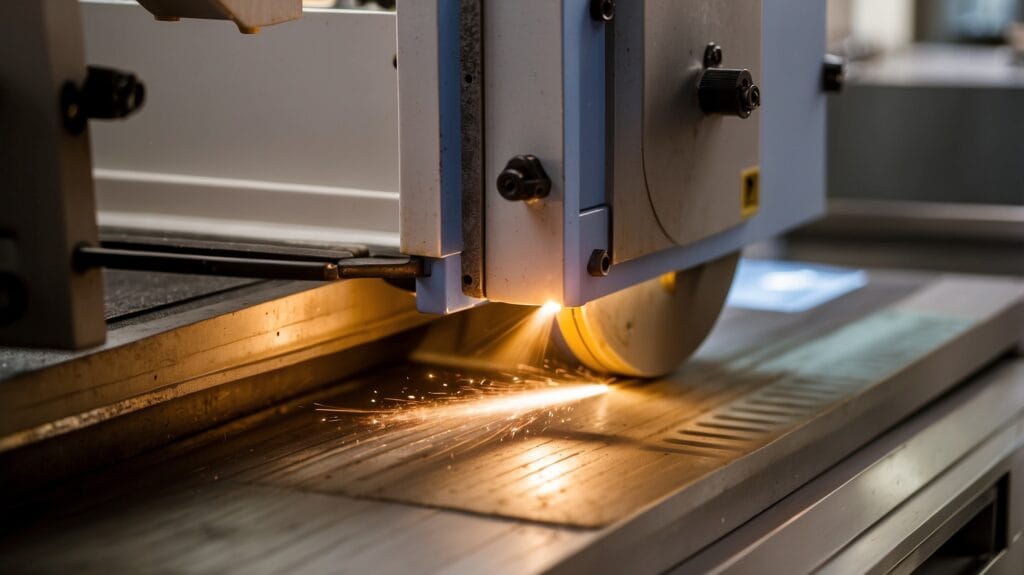

- Surface Grinding: Surface grinding is a widely employed technique for producing flat surfaces on a workpiece. In this process, an abrasive wheel rotates at high speeds while traversing across the surface of the workpiece, removing material to achieve the desired flatness and smoothness. Surface grinding is particularly suited for applications requiring tight tolerances and excellent surface finishes, such as producing precision tooling, dies, and molds.
- Cylindrical Grinding: Cylindrical grinding is used to create cylindrical surfaces or contours on a workpiece. The process involves rotating the workpiece on a spindle while an abrasive wheel traverses along its length, removing material to achieve the desired diameter, roundness, and surface finish. Cylindrical grinding is commonly employed in the production of shafts, bearings, and other rotational components where precise dimensions and geometries are critical.
- Centerless Grinding: Centerless grinding is a highly efficient technique for machining cylindrical parts with tight tolerances and excellent surface finishes. Unlike conventional cylindrical grinding, centerless grinding does not require a center hole or chucking mechanism to hold the workpiece. Instead, the workpiece is supported by a workrest blade and regulated by the grinding wheel and regulating wheel. This setup allows for continuous grinding of long, slender workpieces with minimal setup time, making it ideal for high-volume production runs.
- Internal Grinding: Internal grinding is utilized to machine the internal surfaces of cylindrical workpieces, such as bores and holes. This process employs a small grinding wheel mounted on a spindle that can reach inside the workpiece to remove material. Internal grinding is commonly used in the production of precision components with tight tolerances, such as hydraulic cylinders, engine components, and bearings.
- Thread Grinding: Thread grinding is a specialized form of cylindrical grinding used to produce threads on cylindrical workpieces with high precision and accuracy. This process involves the use of a grinding wheel with multiple grooves or teeth that correspond to the shape of the thread. As the wheel rotates, it cuts into the workpiece to form the thread profile. Thread grinding is commonly employed in the production of screws, bolts, and other threaded components requiring precise pitch, profile, and surface finish.

What Are Differences Between Grinding And Other Machining Operations?
Grinding, compared with other cutting processes such as turning, milling, and planing, possesses the following characteristics:
- Grinding operates at high speeds, reaching 30m to 50m per second, with temperatures soaring to 1000°C to 1500°C. Despite this, the grinding process is incredibly brief, lasting only about one-millionth of a second.
- Precision grinding achieves high machining accuracy and minimal surface roughness values.
- Not limited to soft materials like annealed steel and cast iron, grinding can handle hardened steel and other hard materials like ceramics and carbides, which are challenging for other cutting tools.
- Grinding involves shallow cutting depths, with thin metal layers removed in a single pass.
- During grinding, fine abrasives fly off the grinding wheel, while metal chips splash off the workpiece, posing risks to operators’ eyes and respiratory systems due to dust inhalation.
- Poor-quality or mishandled grinding wheels, improper selection of specifications, eccentric installation, or excessive feed rates can lead to wheel fragmentation, resulting in severe injuries to workers.
- Manual operations near rotating grinding wheels, such as tool dressing, workpiece cleaning, or wheel adjustment, can cause hand injuries if not performed correctly.
- Grinding generates noise levels exceeding 110 decibels, posing health risks if noise reduction measures are not implemented.
How Does CNC Grinding Work?
Understanding the CNC grinding process might seem complex at first glance, but breaking it down makes it more approachable. Let’s dive into the step-by-step journey of how raw material transforms into a precise component using CNC grinding.
Designing The Component
Every great creation starts with a blueprint. In CNC grinding, the process begins long before the machine starts operating.Engineers use CAD software to craft a detailed model of the part. This digital blueprint includes all necessary specifications, dimensions, and tolerances. Imagine sketching out your dream home before it’s built—that’s essentially what CAD does for manufacturing.
Programming The Machine
A machine flawlessly interprets a design through effective programming, which serves as the link between concept and reality. The process begins with Computer-Aided Manufacturing (CAM), where a CAD model is converted into a CNC program that generates G-code—the language guiding the machine’s movements and operations. Operators then set crucial parameters like feed rate, spindle speed, and grinding wheel type, akin to preparing for a performance. These precise settings ensure smooth and efficient operation, enabling the machine to execute the design with accuracy.
Setting Up The Machine
Preparation is key to success. Before the grinding begins, the machine and materials must be precisely configured.
Mounting the workpiece involves securely clamping the material onto the machine’s table or fixture, akin to fastening a piece of wood before carving to ensure stability and accuracy. Following this, the appropriate abrasive wheel is selected based on the material and desired surface finish. Just as a chef chooses specific knives for various tasks, selecting the right grinding wheel is essential for achieving optimal results.
Grinding Process
Here’s where the magic happens. The machine brings the design to life with meticulous precision.
Automated grinding utilizes a CNC machine to follow programmed instructions for shaping the workpiece with precision. Operating along multiple axes (X, Y, and Z), the machine’s movements are comparable to a sculptor carving a statue, but with micrometer-level accuracy. The rotating grinding wheel removes material through abrasive action, achieving the desired dimensions and surface finish. Advanced sensors continuously monitor the process in real-time, allowing for immediate adjustments that ensure consistent quality and reduce the likelihood of errors.
Finishing And Inspection
Once grinding is complete, ensuring the part meets all specifications is crucial.
Surface finishing includes processes like polishing to improve the workpiece’s surface integrity. After this, the finished part undergoes inspection with precise measuring instruments or coordinate measuring machines (CMM). This quality control step is comparable to proofreading a document to catch any mistakes before finalization, ensuring the product meets the required standards.
Importance Of Grinding In Precision Manufacturing

Grinding is pivotal in precision manufacturing, ensuring exacting standards of accuracy, surface finish, and dimensional precision. Its significance spans industries, from aerospace to medical, where stringent specifications are paramount.
- Tight Tolerances: Grinding achieves micron-level tolerances critical for precision industries like aerospace and medical devices, ensuring flawless performance and product integrity.
- Superior Surface Finish: With unmatched smoothness and minimal roughness, grinding delivers impeccable surface quality crucial for high-performance components in engines, instruments, and medical devices.
- Dimensional Precision: Precision grinding produces components with precise dimensions and complex geometries, guaranteeing seamless fit and optimal functionality in intricate designs.
- Versatility Across Materials: Grinding handles diverse materials, from metals to ceramics and composites, enabling consistent precision and quality across industries.
- Efficiency and Productivity: Advancements like high-speed grinding and CNC systems enhance efficiency without compromising precision, meeting tight deadlines and cost targets.
Advantages Of CNC Grinding
Why has CNC grinding become a cornerstone in modern manufacturing? Let’s explore the benefits that make it indispensable.
In industries where precision is crucial, Exceptional Precision and Accuracy is paramount. CNC grinding achieves tight tolerances within micrometers—imagine slicing a human hair into a thousand pieces; that’s the level of precision we’re talking about. Additionally, computer control ensures consistent results, making each part identical and enhancing reliability. On the other hand, in manufacturing, time is money, and High Efficiency and Productivity is another focus of CNC grinding optimization. With automated operation, machines can run continuously with minimal supervision, producing more parts in less time. This complements reduced cycle times, as optimized machining paths and speeds increase throughput without compromising quality.
Versatility is a key advantage of CNC grinding, allowing the creation of complex shapes from tough materials. It can produce complex geometries, crafting intricate shapes and contours that traditional methods struggle with. Additionally, it offers material diversity, being suitable for a wide range of materials, including metals, composites, and ceramics—whether it’s stainless steel or advanced alloys, CNC grinding has you covered. On the financial side, being cost-effective is crucial for any business. Automation reduces labor costs by minimizing the need for manual intervention, and precision machining lowers waste by reducing scrap rates and material wastage, contributing to both cost savings and environmental sustainability. Finally, CNC grinding provides improved surface quality; a smooth finish is not only aesthetically pleasing but can also enhance a part’s performance. It achieves smooth finishes, which are essential for components like bearings and seals, and allows for customization of surface properties to meet specific requirements, such as increasing wear resistance or reducing friction.
Enhanced Safety is always a top priority in manufacturing environments. Automation reduces the potential for human error and accidents, leading to risk mitigation and creating a safer workplace. Additionally, enclosed systems effectively manage dust and debris, protecting both workers and equipment. On the production side, scalability is another significant advantage of CNC grinding. Whether you need a single prototype or mass production, it can easily adapt to meet demand. This flexible production capability allows for seamless switching between different parts and batch sizes without significant setup changes, making it ideal for industries with varying production needs.
What Types Of Components Commonly Need CNC Grinding?

In CNC machining, grinding serves as a versatile process capable of shaping a wide array of components with precision and accuracy. Some common components frequently subjected to grinding operations include:
- Shafts: Precision-ground shafts are vital components in various mechanical systems, providing rotational motion and transmitting power. Grinding ensures the desired diameter, surface finish, and concentricity required for optimal performance.
- Gears: Gears play a crucial role in power transmission systems, requiring precise tooth profiles and surface finishes to ensure smooth and efficient operation. Grinding allows for the precise shaping of gear teeth, ensuring proper meshing and minimizing noise and wear.
- Molds: Grinding is indispensable in mold manufacturing for producing intricate cavities, cores, and inserts with high precision and surface finish. Precision-ground molds are essential for manufacturing precision components in industries such as automotive, aerospace, and medical devices.
- Dies: Dies used in metal forming processes, such as stamping and forging, often undergo grinding to achieve precise dimensions, smooth surfaces, and sharp edges. Grinding ensures that dies maintain tight tolerances and produce high-quality parts consistently.
Applications Of CNC Grinding
CNC grinding isn’t just about creating parts—it’s about advancing industries. Let’s see how this technology plays a vital role across different sectors.
CNC grinding is integral to industries where precision and quality are paramount. In the aerospace industry, it produces engine components such as turbine blades and shafts, which require high accuracy, as well as complex assemblies with intricate geometries essential for aircraft systems. Similarly, the automotive industry relies on CNC grinding for transmission parts, including gears, shafts, and bearings that demand tight tolerances, as well as precision components for fuel systems like injectors and pumps.
In the medical device manufacturing sector, CNC grinding is crucial for creating surgical instruments that require meticulous precision and smooth finishes. It also plays a vital role in producing custom orthopedic implants and prosthetics tailored to patient specifications. Moreover, in tool and die making, CNC grinding is used to manufacture cutting tools such as end mills, drills, and reamers with precise cutting edges, as well as dies and molds for stamping and molding processes.
The energy sector benefits from CNC grinding through the production of power generation components, including parts for turbines and generators, as well as high-pressure valves and fittings used in oil and gas equipment. In the electronic industry, it handles micro-components for devices and circuits, along with tools and dies utilized in semiconductor manufacturing. Lastly, in general manufacturing, CNC grinding produces various machine parts and hardware, such as fasteners, connectors, and fittings with precise dimensions.
What Materials Are Suitable for Grinding

Grinding is suitable for a variety of materials, depending on the application and desired finish. Common materials include metals such as steel, stainless steel, aluminum, and titanium, which are frequently ground for precision machining. Additionally, ceramics and advanced ceramics are ground for applications in electronics and aerospace. Various plastics, including polycarbonate and acrylic, are also suitable for grinding.
Moreover, composites like carbon fiber and fiberglass are often ground to create lightweight, high-strength components. Glass, particularly optical glass and glass ceramics, is ground for precision optics and specialized applications. Each material may require specific grinding techniques and tool choices to achieve optimal results, making it essential to consider the characteristics of the material when selecting the grinding process.
Future Of Grinding Technology
The future of grinding technology is poised at the intersection of innovation and necessity, where advancements in materials, automation, and sustainability converge to redefine the landscape of precision manufacturing. As industries continue to demand higher efficiency, tighter tolerances, and enhanced sustainability, grinding processes are undergoing rapid transformation to meet these evolving needs. Here are some potential trends of grinding technology
Emerging technologies: Advancements in abrasives, nanotechnology, and hybrid methods promise higher efficiency and precision.
• Automation integration: Robotics streamline operations, reduce setup times, and enable lights-out manufacturing for enhanced productivity.
• Sustainability focus: Grinding evolves with energy-efficient practices, eco-friendly materials, and waste reduction measures.
• Future predictions: AI-driven optimization, real-time monitoring, and proactive maintenance enhance efficiency and precision in CNC grinding.
Conclusion
Throughout this exploration, we’ve uncovered the pivotal role of grinding in precision manufacturing. From its ability to achieve micron-level tolerances to its unmatched surface finish capabilities, grinding emerges as a vital process for producing components that drive innovation and excellence across industries. The integration of automation, sustainability considerations, and emerging technologies further underscore the importance of grinding in shaping the future of CNC machining.
As technology continues to evolve and industries demand greater precision and efficiency, there has never been a more critical time to delve deeper into the realm of grinding techniques and advancements in CNC machining. By staying abreast of the latest developments, exploring new technologies, and embracing innovative approaches, manufacturers can unlock new levels of productivity, quality, and sustainability in their operations. If are interested in more about manufacturing tech, subscribe Ultirapid Blogs to get more updates!
Final Thoughts
CNC grinding is an indispensable process in manufacturing, especially in aerospace and automotive sectors. It precisely removes material using a rotating wheel, ensuring tight tolerances and superior surface quality. Common types include surface grinding and cylindrical grinding, catering to various machining needs.
At Ultirapid, we have successfully applied these techniques in the aerospace field, particularly in machining titanium components. For example, our CNC grinding services significantly improved the performance and reliability of a specific aerospace part, meeting stringent industry standards. With 15 years of CNC machining service experience, our team delivers high-quality, customized solutions that enhance our clients’ competitiveness.
Faqs
What Are The Methods Of Grinding?
Grinding methods include surface grinding for flat surfaces, cylindrical grinding for external and internal cylinders, centerless grinding for parts without a spindle, internal grinding for hole finishing, tool and cutter grinding for sharpening tools, creep feed grinding for deep cuts, and Blanchard grinding for larger workpieces.
What Are The Differences Between Wet Grinding And Dry Grinding?
The differences between wet grinding and dry grinding are:
Cooling: Wet grinding uses coolant to reduce heat, while dry grinding generates more heat.
Material Removal: Wet grinding offers faster removal and smoother finishes; dry grinding can create dust.
Applications: Wet grinding is for heat-sensitive materials; dry grinding suits harder materials.
Equipment: Wet grinding requires coolant management, while dry grinding is simpler and cheaper to maintain.
What Are The Disadvantages Of CNC Grinding Machines?
The disadvantages of CNC grinding machines include:
High Initial Cost: Expensive to purchase and set up.
Complex Operation: Requires skilled operators for programming.
Maintenance Needs: Regular upkeep is necessary.
Limited Flexibility: Time-consuming to change setups.
Overheating Risk: Can overheat without proper cooling.
Material Limitations: Not suitable for all materials.
