What Is Drilling In CNC Machining? – Complete Guide

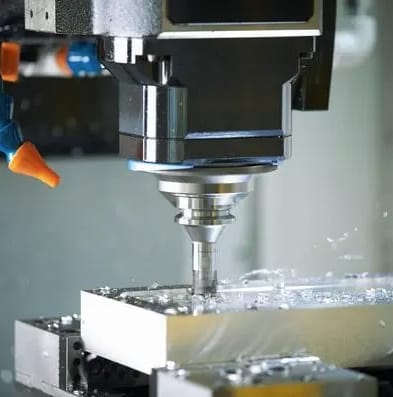

CNC-drilling-pictures
Contents
    Add a header to begin generating the table of contents

    In the realm of manufacturing precision parts with unparalleled accuracy and efficiency, CNC machining stands as a cornerstone technology, with drilling playing a pivotal role. Drilling in CNC machining isn’t just about boring holes; it’s about unlocking the potential for intricate designs, seamless assembly, and optimized functionality across a myriad of industries. The importance of drilling in CNC machining cannot be overstated, as it serves as the gateway to unleashing the full capabilities of this cutting-edge manufacturing process. In this article, we aims to delve into the multifaceted significance of drilling in CNC machining.

    What Is Drilling?

    In general, drilling refers to a machining method where holes are processed on the surface of a product using a drill bit. Typically, when drilling on a drilling machine, two motions should be synchronized:

    1. Primary motion, which involves the rotation of the drill bit around its axis (cutting motion).
    2. Secondary motion, which involves the linear motion of the drill bit along the axis direction towards the workpiece (feed motion).

    During drilling, due to the structural shortcomings of the drill bit, traces may be left on the processed area of the product, affecting the quality of workpiece machining. The machining accuracy is generally below IT10 level, with a surface roughness of around Ra12.5μm, falling into the category of rough machining.

    CNC Drilling: Precision Techniques and Applications for Optimal Performance

    Why Drilling Important?

    Drilling plays a pivotal role in the landscape of Computer Numerical Control (CNC) manufacturing, holding significance that extends far beyond merely creating holes. Here are several key reasons why drilling is indispensable in CNC manufacturing:

    1. Hole Creation: At its core, drilling is essential for creating precise and accurate holes in workpieces. These holes serve various purposes, such as accommodating fasteners, facilitating assembly, or enabling fluid flow pathways in components.
    2. Feature Addition: Beyond simple hole creation, drilling enables the addition of intricate features to components. Whether it’s counterbores, countersinks, or chamfers, drilling operations can incorporate diverse features into workpieces, enhancing their functionality and versatility.
    3. Surface Finishing: Drilling also contributes to surface finishing processes in CNC manufacturing. By employing specialized drills and techniques, manufacturers can refine the surface quality of components, achieving smoother finishes and tighter tolerances.
    4. Efficiency and Precision: In the realm of CNC machining, efficiency and precision are paramount. Drilling operations offer a balance of speed and accuracy, allowing manufacturers to achieve high throughput while maintaining stringent quality standards.
    5. Versatility: Drilling encompasses a wide range of applications and materials. From metals and plastics to composites and ceramics, drilling operations can be tailored to suit diverse materials and geometries, making it a versatile machining process.
    6. Integration with Automation: In modern CNC manufacturing environments, drilling seamlessly integrates with automation systems, enabling unmanned operation and lights-out machining. This automation enhances productivity, reduces labor costs, and ensures consistent machining quality.
    7. Complex Part Production: Drilling is often a crucial step in the production of complex parts and assemblies. By accurately drilling holes at precise locations and orientations, manufacturers can achieve the dimensional accuracy required for intricate components.

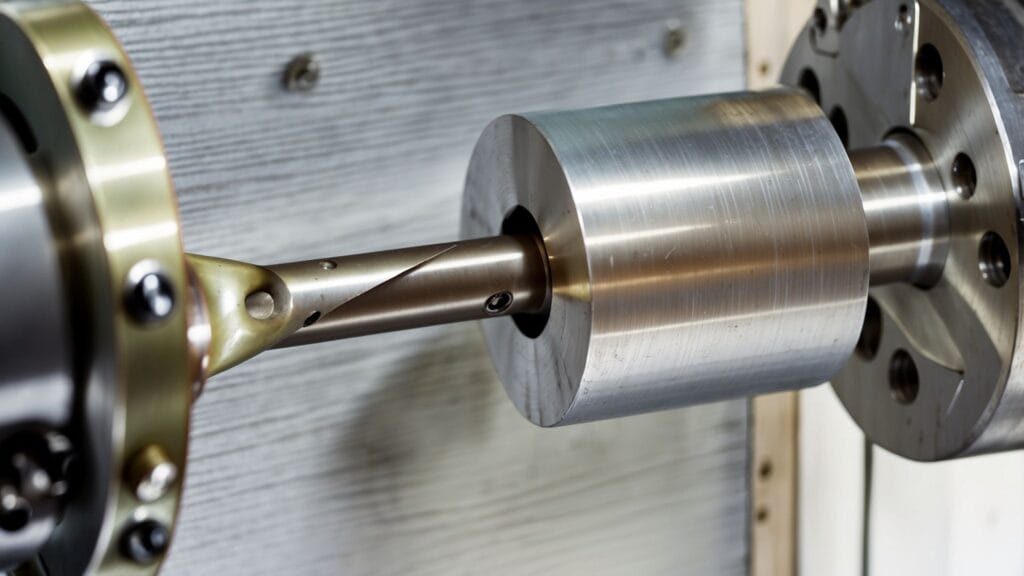

    What is the CNC Drilling Process?

    From marking the initial positions to the meticulous drilling operation, each step requires attention to detail and adherence to best practices. Let’s delve into the intricacies of the CNC drilling process, exploring each stage and its significance in ensuring accurate and reliable results.

    1. Marking the Drill Points: Before diving into drilling, meticulous preparation is key. Understanding the pattern requirements and accurately marking the drill points sets the foundation for a successful drilling operation. Learn how to mark the centerlines with precision and verify their accuracy using reliable measuring tools.
    2. Establishing Checking References: Once the drill points are marked, it’s essential to establish checking references to guide the drilling process. Discover the importance of drawing checking squares or circles symmetrically centered on the hole centerlines, facilitating inspection and correction during drilling.
    3. Perfecting Sample Punching: Punching sample holes is a critical step in ensuring alignment and accuracy before proceeding with drilling. Master the technique of carefully punching sample holes, verifying their alignment with the checking references, and adjusting as necessary for precise alignment.
    4. Securing Workpiece Fixtures: Proper workpiece fixturing is crucial for stability and accuracy during drilling operations. Explore the steps involved in cleaning and securing workpiece fixtures, ensuring flatness, reliability, and convenience for inspection and measurement.
    5. Conducting Trial Drills: Before committing to full-scale drilling, conducting trial drills is essential for verifying alignment and orientation. Learn how to align drill bits with sample holes, drill shallow pits, and visually inspect and correct any deviations to ensure precise alignment.
    6. Executing the Drilling Operation: With preparations complete, it’s time to execute the drilling operation with precision and finesse. Understand the manual feeding process and how to avoid bending of drill bits, ensuring straight and accurate drilling without skewing the hole axis.

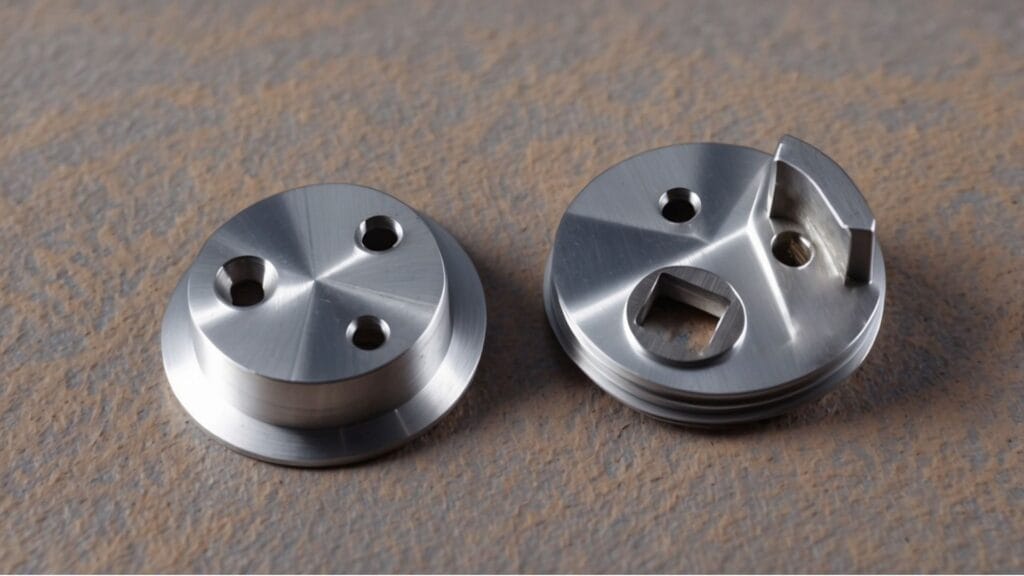

    Hole types in CNC Drilling

    Understanding different hole geometries is essential in various machining and manufacturing processes. Each type of hole serves specific purposes and requires distinct machining techniques. In this , we’ll explore four primary types of hole geometries: through-hole, blind hole, counterbore, and countersink.

    Through-Hole: Penetrating with Precision

    A through-hole, as the name suggests, traverses entirely through the workpiece, from one side to the other. It is commonly used for applications where fasteners need to pass completely through the material, allowing for easy assembly from both ends. Machining a through-hole involves drilling straight through the workpiece with precision, ensuring alignment and dimensionality across the entire length.

    Blind Hole: Concealing Depth with Accuracy

    In contrast to through-holes, blind holes do not penetrate through the entire thickness of the workpiece. Instead, they have a finite depth, terminating within the material. Blind holes are often utilized when fasteners need to be inserted to a specific depth without protruding from the opposite side. Machining blind holes requires careful control of drilling depth and may involve additional operations such as tapping or reaming to achieve the desired specifications.

    Counterbore: Expanding Possibilities with Precision

    Counterbores are cylindrical recesses machined into the surface of a workpiece around a hole. They serve to provide a flat-bottomed seat for fasteners, such as bolts or screws, allowing their heads to sit flush with or below the surface. Counterbores are commonly used to enhance the appearance of assemblies or to accommodate socket head cap screws. Machining a counterbore involves drilling a through-hole followed by enlarging the opening to the desired diameter and depth.

    Countersink: Enhancing Functionality with Elegance

    Countersinks are conical recesses machined into the surface of a workpiece around a hole. Similar to counterbores, they allow fastener heads to sit flush with or below the surface, but with a tapered shape for a more gradual transition. Countersinks are often employed to improve the appearance of assemblies, reduce snagging, or facilitate seating of flat-head screws. Machining a countersink involves drilling a through-hole followed by widening and tapering the opening to the desired angle and depth.

    Overview Of Drilling Strategy

    Drilling strategies are essential in modern machining. We’ll explore three key techniques: peck drilling, high-speed drilling, and deep-hole drilling.

    Peck Drilling: Precision in Steps

    Peck drilling is a method for drilling deep holes or hard materials. It involves drilling short depths at a time, retracting periodically to clear chips and cool the cutting edge. This strategy maintains hole quality, reduces heat buildup, and extends tool life.

    High-Speed Drilling: Efficiency and Precision

    High-speed drilling uses increased cutting speeds and feed rates for shorter cycle times and improved productivity. It achieves tight tolerances, reduced burrs, and optimized chip evacuation, ideal for industries requiring rapid material removal and precise hole creation.

    Deep-Hole Drilling: Precision in Depth

    Deep-hole drilling machines holes with a high depth-to-diameter ratio. It requires specialized equipment and techniques for effective chip evacuation and cooling. This technique is vital in industries like oil and gas, firearms, and mold making.

    How to raise Precision in CNC Drilling

    Precision is key in CNC drilling to ensure high-quality machined components. From sharpening drill bits to centering, each step contributes to accuracy and reliability. Let’s explore essential techniques for precision in CNC drilling.

    Sharpening Drill Bits: Essential Foundation

    Properly sharpened drill bits are crucial for effective drilling. Maintaining precise angles and symmetrical cutting edges ensures accuracy. Grinding edges appropriately enhances centering and reduces wall roughness for optimal drilling performance.

    Accurate Marking: Building the Base

    Accurate marking lays the foundation for successful drilling. Using a height gauge, maintain precision in marking lines for clear and uniform results. Carefully selecting a reference surface ensures flatness and perpendicularity, facilitating subsequent drilling processes.

    Correct Clamping: Ensuring Stability

    Proper workpiece clamping is vital for stability during drilling. For smaller holes, hand or flat-nose pliers may suffice. Larger holes require secure clamping with pressure plates to prevent misalignment and achieve accurate results.

    Accurate Centering: Essential Alignment

    Accurate centering is crucial for alignment during drilling. Whether static or dynamic methods are used, aligning the drill press spindle centerline with workpiece cross lines is critical. Prioritizing accurate centering ensures successful drilling operations.

    Thorough Inspection: Guaranteeing Quality

    Thorough inspection verifies hole accuracy and ensures quality. For precise holes, drilling, reaming, and tapping processes are employed. Using calipers to measure deviations and implementing compensatory measures during reaming ensures precise alignment and consistency in CNC drilling operations.

    Applications Of CNC Drilling And Examples

    CNC drilling plays a vital role in numerous industries and sectors, revolutionizing the precision and efficiency of hole-making processes. Here’s an overview of some key industries and sectors where CNC drilling is indispensable:

    1. Manufacturing Industry: CNC drilling is extensively used in the manufacturing sector for creating precise holes in various materials such as metals, plastics, and composites. It is crucial for producing components and parts used in automotive, aerospace, machinery, and consumer goods manufacturing.
    2. Aerospace and Aviation: In the aerospace and aviation industry, CNC drilling is essential for fabricating aircraft components, including fuselage panels, wing structures, engine mounts, and landing gear assemblies. These components require precise holes for fastener installation, structural integrity, and aerodynamic performance.
    3. Oil and Gas Exploration: CNC drilling plays a critical role in the oil and gas sector for drilling boreholes in exploration and production operations. It is used for creating wells, extracting hydrocarbons, and installing casing and tubing in drilling rigs and offshore platforms.
    4. Construction and Infrastructure: CNC drilling is vital in construction and infrastructure projects for creating holes in concrete, steel, and other building materials. It is used for anchoring, doweling, pile installation, and utility installations in buildings, bridges, roads, and tunnels.
    5. Medical Device Manufacturing: In the medical sector, CNC drilling is essential for fabricating medical devices and implants used in orthopedic, dental, and surgical applications. It is used for creating precise holes in materials such as titanium, stainless steel, and biocompatible polymers for implant integration and assembly.
    6. Electronics and Semiconductor Industry: CNC drilling is indispensable in the electronics and semiconductor industry for manufacturing printed circuit boards (PCBs) and semiconductor wafers. It is used for creating holes for component mounting, interconnection, and microelectronic device fabrication.
    7. Defense and Military: CNC drilling is crucial in the defense and military sector for producing weapons, munitions, and military equipment. It is used for creating precise holes in firearm components, armor plates, vehicle armor, and aircraft structures.
    8. Automotive Manufacturing: In the automotive industry, CNC drilling is essential for producing engine blocks, transmission housings, chassis components, and other automotive parts. It is used for creating holes for bolt installation, fluid passage, and component assembly in vehicles. Final

    Final Thoughts

    Thank you for taking the time to read this article, exploring the pivotal role of drilling in CNC machining within the realm of precision manufacturing. Beyond mere hole-making, CNC drilling is the key to unlocking intricate designs, seamless assembly, and optimized functionality across diverse industries.

    Throughout this piece, we’ve delved into the multifaceted significance of drilling in CNC machining service. From its fundamental principles to its wide-ranging applications, we’ve highlighted how drilling shapes the landscape of modern manufacturing. Whether creating precise holes, adding intricate features, or refining surface finishes, drilling is indispensable for achieving high-quality machined components demanded by industries such as aerospace, automotive, medical devices, and electronics.

    As technology continues to evolve, CNC drilling remains at the forefront of precision manufacturing, enabling the creation of complex parts with unparalleled accuracy and reliability. Thank you once again for your readership, and Ultirapid hope this exploration of CNC drilling has provided valuable insights into its essential role in shaping the future of manufacturing.
