What Is Taper Turning?

What Is Taper Turning
Contents
    Add a header to begin generating the table of contents

    Taper turning is an important machining operation used to generate the conical shape on a workpiece by progressively changing its diameter over a defined length. The operation is widely carried out on a lathe, and it is quite critical during the manufacturing process for parts requiring high accuracy in taper, such as shafts, spindles, and tool holders. With the angular dimension correctly achieved, taper turning enhances the fitting, alignment, and functioning of components in various mechanical systems. It is a very versatile and accurate process that is indispensable in the automotive, aerospace, and general engineering industries.

    What Is Taper Turning?

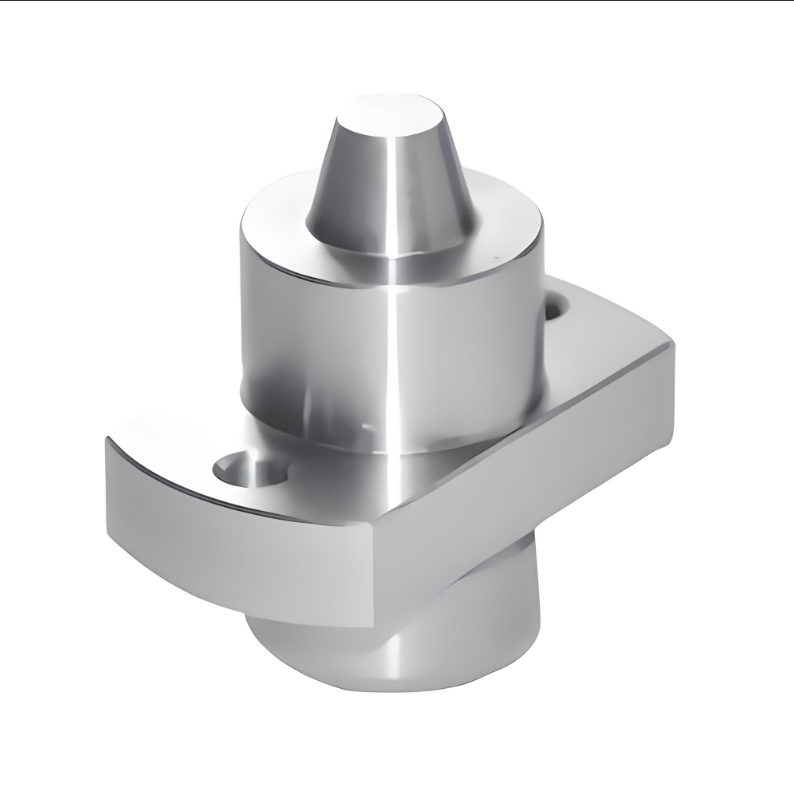

    Taper turning is a method of machining for producing a conical surface on a workpiece by steadily decreasing or increasing the diameter in a specific length. This is a basic operation in lathe work, which enables a certain angular profile or profile to be given in a job. Taper turning is very essential in the manufacture of such parts as shafts, spindles, and fittings where tapers are needed for assembly, alignment, or some other functional reasons.

    The Machinists change the relative motion of a cutting tool with respect to a workpiece, resulting in tapers of different angles and lengths. This is an extremely versatile process and, as luck would have it, highly essential when manufacturing precision parts for the automotive, aerospace, and engineering industries.

    How Does It Work?

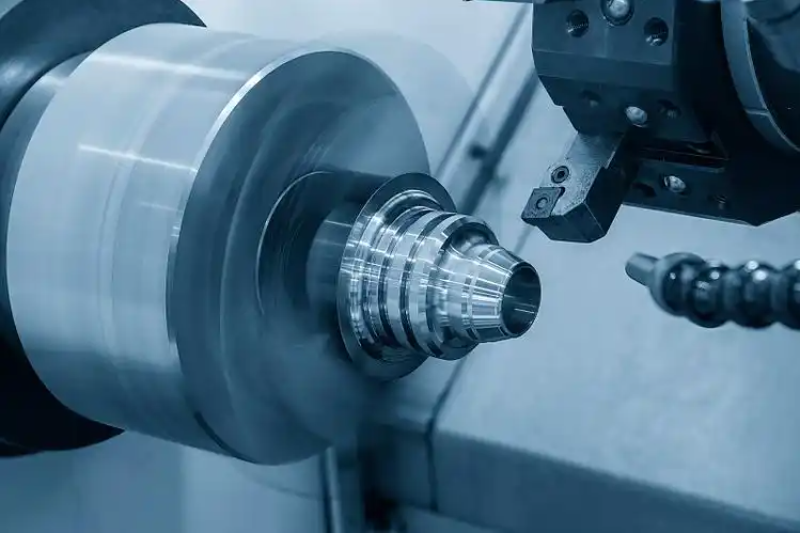

    Taper turning is a turning operation where the material is removed from the workpiece with the help of a lathe, which gives a gradual change in diameter. The workpiece is mounted on the spindle of the lathe and rotated, while the cutting tool moves along a path in such a way that it produces the desired angle of the taper. The angle of the taper may be steeper for certain fittings, while it is shallow in the case of gradual transitions.

    Precision in taper turning is very important, as the angle of the taper has to be exactly according to specification. It usually requires a combination of accurate measurement, careful setup, and skillful operation. If you currently lack this capability, Ultirapid’s taper turning can do this project.

    Materials That Can Be Used For Taper Turning

    Do you know that taper turning can be performed on so many types of materials? From metals to plastics, even woods-the process adapts to different materials when the need arises. Let’s explore the possibilities and see what is usable.

    Metals

    By far, the most common material used in taper turning are metals due to their strength, durability, and resistance to corrosion. They can also address a wide range of applications in both industry and engineering:

    • Aluminum:Lightweight, corrosion-resistant, and easy to machine, aluminum is a preferred choice for aerospace, automotive, and consumer electronics industries. Its excellent thermal conductivity and versatility make it ideal for precision tapered parts like shafts and fittings.
    • Steel: Steel is a hard and wear-resistant material, including stainless steel and carbon steel, which is widely used in manufacturing heavy-duty components such as axles, spindles, and mechanical tools. Machinability for steel varies with its grade and requires the right choice of tool and cutting speed.
    • Brass: Brass is noted for outstanding machinability and attractive appearance, hence widely used in decorative components, plumbing fixtures, and precision instruments. Its corrosion resistance makes it acceptable for marine applications and electrical fittings.
    • Copper: Excellent electrical and thermal conductivity of copper makes it the best choice for electrical system components like tapered connectors and conductors. It is a relatively soft material, hence requires extra care while handling during machining.
    • Titanium: Lightweight but very strong, titanium is widely used in aerospace, medical, and automotive applications. It is harder to machine because of its toughness and tendency to retain heat, but it’s great for making high-performance, corrosion-resistant tapered parts.

    Plastics

    Plastics also find wide application in taper turning for applications that require lightweight, cost-effectiveness, or specific performance properties:

    • Acrylic: Translucent and easy to machine, acrylic is in wide demand for optical components, displays, and decorative items, where accurate machining for tapered surfaces with an excellent surface finish is needed.
    • Polycarbonate: This tough, impact-resistant material is in great demand for uses involving rugged service along with clarity, such as protective covers, lenses, and machine guards. Its machinability and strength make it suitable for creating complex tapered parts.
    • Other Machinable Plastics: Other engineering materials include nylon, Delrin ® (acetal), and polyethylene. These plastics provide a good balance of strength, flexibility, and wear resistance that makes them suitable for bushings, gears, and other functional components with tapered surfaces.

    Wood

    Taper turning is one of the widely used woodworking techniques from which functional or decorative components in wood can be produced, showing off the natural beauty and workability of the material. Tapers are most often applied to table, chair, and sofa legs in an attempt to meet both aesthetic demands and stability of function. Spindles and balusters are other ornamented features that often go through the process of taper turning in order to give them a touch of elegance and character added in their design. Also, the tool handles, being from taper turning, yield ergonomic grips, which combine comfort with a classic, timeless appearance. This is the reason for finding such wide applicability in woodwork.

    Composites

    A few composite materials are also suited to taper turning and provide remarkable properties such as high strength related to weight and heat resistance. Most of the common fiber-reinforced composites used in aerospace industries, sports equipment, and car manufacturing include fiberglass and carbon fiber-reinforced polymers. These materials are very durable, light, yet highly abrasive; therefore, specific tooling and techniques are used for their good machining. Again, wood-composite materials-both plywood and MDF-are also capable of being turned and taper-turned through lathe applications, which lets them stand good for cabinetry, constructional, and such related structures.

    Different Methods Of Taper Turning

    Not all methods of taper turning are born equal, and the perfect taper can be done several ways: from a simple tool to the programming of a CNC machine. Which method is best for my needs? Let’s break it down.

    Form Tool Method

    This is the easiest method whereby a cutting tool in the form of a taper to be required is used to machine the workpiece. The tool is fed in a straightforward motion into the workpiece to get the conical surface. It is more suitable for short tapers and involves no special adjustment on the lathe, hence suitable for quick and simple operations. However, it is not that accurate and is not suitable for long tapers.

    Combining Feeds Method

    In this method, the taper is produced by simultaneously combining the longitudinal and cross-feed of the cutting tool. These feeds when integrated at proper rates result in the movement of the tool diagonally with respect to the axis of the work and hence the taper. This method is generally used in the case of smaller angles of tapers. For accuracy, it essentially requires careful synchronization.

    Compound Rest Method

    The taper to be given is set on the compound rest of the lathe, which is then fed by hand along the workpiece. This method gives very accurate results and is usually employed for machining short steep tapers. This attachment enables a machinist to obtain any customized taper angle accurately because of the adjustability in the compound rest.

    Taper Turning Attachment Method

    A taper turning attachment is a special device mounted on the lathe for the purpose of producing tapers without readjustment of the toolpost. The attachment moves the cutting tool at a predetermined angle relative to the workpiece axis, enabling a uniform and accurate taper. This method is particularly suitable for long and gradual tapers, offering a high degree of accuracy and repeatability.

    Tailstock Set Over Method

    In this method, the required taper is provided by offsetting the tailstock of the lathe through a certain amount. The work is then mounted between the centers, and with the longitudinal movement of the cutting tool, the taper is produced because of the offset. This method is very good for long tapers but involves calculations for determining the amount of offset of the tailstock and requires careful alignment of the setup.

    Types Of Holding Tapers

    Holding tapers are conical connections used to secure tools, machine components, or workpieces with precise alignment. They rely on the principle of taper fits, where friction and mechanical force create a secure hold. Holding tapers are broadly classified into two categories based on their functional characteristics: self-holding tapers and self-releasing tapers.

    Self-holding tapers

    Self-holding tapers are a design that holds the components in place without the need for an additional locking device. The frictional force developed at the mating surfaces is enough to keep the taper from loosening out under normal operating conditions. These tapers usually have a shallow taper angle less than 7°, which provides strong frictional contact, ensuring that the components stay firmly locked during operation. However, due to the strong grip, self-holding tapers often require a knockout tool or light tapping for removal after use. Such tapers are very common in machine tools, especially for holding drill bits, reamers, and other cutting tools.

    Examples include the Morse taper, which is common in lathe spindles and drill presses, and the Brown & Sharpe taper, which is common in milling machines and grinders. The key features that make self-holding tapers advantageous are that they provide great holding power, thus giving stability, and their design is simple and inexpensive. However, they cannot be driven out without using a tool, and heavy loads can cause them to become excessively tight, making disassembly difficult.

    Self-Releasing Tapers

    Self-releasing tapers are designed for applications requiring easy removal. These tapers have a larger taper angle, typically greater than 7°, which prohibits friction alone from causing the taper to lock. The more extreme angle provides for smooth disengagement when axial force is applied, without the need for additional tools. These tapers, on the other hand, can easily be withdrawn but still ensure safety in their holding under ordinary working conditions provided correct axial pressure is applied to them. Such self-releasing tapers will find their applications in cases requiring frequent changes or adjustments, such as drill chucks with Jacobs tapers and CNC machines or tool holders with ISO tapers.

    The major benefits of self-releasing tapers are that they can be removed more quickly and easily without the use of additional tools, which makes them ideal for high-productivity environments. They can loosen if proper axial pressure is not maintained and generally provide less holding power compared to self-holding tapers. In spite of these limitations, self-releasing tapers are preferred in dynamic settings where convenience and speed are crucial.

    Self-Holding Vs. Self-Releasing Tapers

    FeatureSelf-Holding TapersSelf-Releasing Tapers
    Taper AngleLess than 7°Greater than 7°
    Frictional GripHighLow
    Ease of RemovalRequires toolsEasy, no tools needed
    Common ExamplesMorse, Brown & SharpeJacobs, ISO
    ApplicationsDrills, reamers, lathesCNC machines, drill chucks

    Basically, self-holding and self-releasing tapers depend on application needs where a choice between secure holding and easy quick tool change has to be made. Both the types are fundamental to machining and manufacturing processes in respect of precision and efficiency.

    Industries That Use Taper Turning

    From automotive to aerospace, taper turning is everywhere. These industries depend on precise tapers to build reliable and efficient products. You might be surprised to learn just how widespread this process is!

    Taper turning in the automotive industry is one of the most important manufacturing methods for producing critical components such as shafts, axles, and parts related to engines. These parts often require a tapered design for secure fits, proper alignment, and smooth functioning in mechanical systems.

    The aerospace industry also heavily depends on taper turning in the manufacture of precision-engineered components for aircraft, including turbine blades, parts of the undercarriage, and other structural elements, which have to meet exacting tolerances that ensure safety and performance under extreme conditions.

    In manufacturing, taper turning is one of the important processes used to manufacture machine tool components, such as tool holders, spindles, and bushings. Most of these parts have to be given tapered surfaces to provide for proper fit, alignment, and attachment to machinery for smooth operations in an industry.

    Taper turning plays a major role in the fabrication of parts for heavy machinery in the construction sector. Tapered components manufactured include gears, shafts, and pins that are made to ensure mechanical efficiency and stability in the operation of construction equipment.

    A final domain where taper turning is being applied involves woodworking, particularly in fashioning wooden items for decoration and functionality. The furniture components that may be subjected to taper turning could be table legs, spindles, and handles for aesthetic appeal and functional design.

    Advantages And Disadvantages

    Like any process, taper turning has its pros and cons. While it offers versatility and precision, it also comes with challenges like setup complexity. Let’s weigh the good and the not-so-good to see how it stacks up.

    Advantages

    One of the major advantages of taper turning is versatility. The working methodology can be done on various metals, plastics, wood, and composites, thus finding a very wide application in industries such as automotive, aerospace, and woodworking. The flexibility of taper turning means that it can be used to manufacture everything from highly engineered components to decorative items, thus meeting the requirements of many different needs.

    Another important advantage of taper turning is precision. When done with the right setup and equipment, taper turning offers accuracy and tight tolerances. This makes it ideal for applications that require exacting specifications, such as the manufacturing of shafts, tool holders, and other critical parts where precise conical shapes are necessary for proper fit and function. Consistent production of these precise features ensures that the resulting parts perform reliably and meet stringent industry standards.

    Finally, efficiency is a great advantage in taper turning. The process is compatible with both manual lathes and modern CNC machines for flexibility in production. While manual taper turning will suffice in smaller production or custom work, CNC operations allow high-volume manufacturing with automation accuracy. The combination of skillful handling and automated capabilities has made taper turning find perfect use in anything from the smallest-scale to high-volume production economically viable, with the ability to sustain quality.

    Disadvantages

    Taper turning is effective and widely used, but there are also some disadvantages and limitations that have to be put into consideration to get the best results. The disadvantages include setup complexities,for it to be accurate, setting up needs to be highly accurate, where the cutting tool, workpiece, and machine components should be set carefully. This sort of preparation may be time-consuming and mostly calls for skilled operators, especially in intricate designs or custom taper angles.

    Tool wear is another challenge that may be quicker in harder materials such as steel or titanium. The continued contact of the cutting tool with the sloping surface of the workpiece may result in uneven wear and hence a reduction in tool life, compromising the quality of the finished product. This may involve frequent maintenance or replacement of the tools, adding to production costs.

    Finally, the taper turning process is limited to cylindrical geometries only because the nature of the process itself has been designed to realize conical features on cylindrical workpieces. This makes it unsuitable for machining non-cylindrical components or those with complex geometries. Applications of this sort may require different machining methods.

    These disadvantages bring out that even though taper turning allows for precision and versatility, it is proper planning, material selection, and complementary machining techniques that can give the best results.

    Applications For Taper Turning

    What do drill bits, spindles, and pipe fittings have in common? They all rely on taper turning for their functionality. This technique has endless applications—some might even surprise you. Let’s explore its uses.

    Taper turning has its applications in a wide range of industries due to the precision and functionality of the conical shapes it produces. Its applications range from essential mechanical parts to decorative items, showcasing its versatility.

    A common example is the fabrication of drill bits, whereby taper turning is used to provide the tapered end that increases the effectiveness and speed with which drilling is accomplished. This allows smooth entry into materials and thus secures stability during operation.

    Another important application is in the making of spindles, which are critical parts of rotating machinery, while taper turning gives them perfect dimensions and alignment for their optimum performance in machines like lathes, milling machines, and industrial equipment.

    Taper turning also finds wide applications in pipe fittings, especially in the manufacture of tapered threads. These threads are necessary for making tight, leak-proof joints in plumbing, gas lines, and industrial pipelines. The precision in tapering allows for a proper fit and seal under pressure.

    Besides functional items, another important application of taper turning is in ornament making. This is very common in ornamental works of wood and metals, which are used as furniture legs, spindles, and candlesticks for added beauty. Hence, this is an application area that puts in light the more artistic use of taper turning apart from its technical use.

    Conclusion

    One of the basic machining processes, taper turning, is applied to produce conical shapes with very good accuracy. Its versatility and adaptability for a wide range of materials and applications make it a priceless technique in the world of modern manufacturing and craftsmanship. Whether done manually or on advanced CNC machines, taper turning remains a vital part of industries requiring good-quality tapered parts.

    How Can Ultirapid Help You?

    Ultirapid’s taper turning services specialize in producing high-precision conical shapes for a wide range of applications. With advanced CNC technology and expert machinists, Ultirapid ensures consistent, accurate tapers on components such as shafts, spindles, and pipe fittings. Our tailored approach adapts to both small-scale custom projects and large-volume production, offering solutions that meet the highest industry standards. Whether for intricate designs or functional parts, Ultirapid guarantees top-quality results with efficiency and precision.

    Final Thoughts

    Taper turning is a fundamental process in CNC machining, allowing for the creation of conical shapes essential for components like shafts, drill bits, and pipe fittings. With 15 years of experience in CNC machining service, I’ve seen firsthand how taper turning is indispensable across industries such as automotive, aerospace, and construction. For example, manufacturing Morse-tapered spindles for machine tools demands not only precision but also repeatability—an area where advanced CNC setups excel. Similarly, crafting tapered threads for pipe fittings ensures leak-proof connections in high-pressure systems, a critical requirement for industrial pipelines.

    At Ultirapid, we specialize in high-precision taper turning with state-of-the-art CNC equipment and expert machinists. Whether it’s small-scale custom parts or high-volume production, our solutions deliver unparalleled quality and efficiency. Let us partner with you to meet your taper turning needs, ensuring components that exceed expectations in performance and durability.

    Faqs

    What Is The Taper Turning Method In Lathe Machine?

    Taper turning on a lathe creates conical shapes by gradually altering a workpiece’s diameter along its length. It’s essential for producing components like shafts, spindles, and pipe fittings. Methods include the form tool method for short tapers, tailstock set-over for long, gradual tapers, compound rest adjustment for precision, and taper turning attachments for automated accuracy. Each method caters to specific taper requirements, ensuring versatility and precision in machining.

    What Is The Principle Of Taper Turning?

    The principle of taper turning involves creating a conical shape by varying the diameter of a cylindrical workpiece along its length. This is achieved by moving the cutting tool at an angle to the workpiece’s axis, instead of parallel. The angular motion can be achieved using methods like tailstock offset, compound rest adjustment, or taper attachments. This process ensures precise production of tapered components, essential for applications like shafts, spindles, and machine tool parts.

    What Is Taper Turning Used For?

    Taper turning is used to create conical shapes on cylindrical workpieces, which are essential in various industries. It is commonly used to manufacture components such as shafts, spindles, drill bits, and pipe fittings that require tapered surfaces for proper fitting, alignment, or connection. Taper turning is also applied in the production of ornamental items like furniture legs or decorative spindles, where precise tapering enhances both functionality and aesthetics. It ensures smooth operation, secure fits, and reliable performance in many mechanical systems.

    What Are The Challenges In Taper Turning?

    Taper turning presents several challenges, including setup complexity, where precise alignment of the tool and workpiece is crucial for accurate results. Tool wear is another concern, especially when machining hard materials, leading to reduced tool life. The method is also limited to cylindrical shapes, making it unsuitable for more complex geometries. Additionally, achieving consistent taper angles over long lengths can be difficult, particularly in manual operations, affecting the overall quality of the workpiece.
