Injection molding flash—a common manufacturing defect—can compromise part quality, increase costs, and delay production. This comprehensive guide explores the causes, prevention strategies, and fixes for flash in injection molding, empowering manufacturers to achieve flawless results. Flash, the unwanted excess plastic that seeps out of mold cavities, often stems from issues like improper mold design, material inconsistencies, or incorrect processing parameters. Understanding and addressing these factors is critical for producing high-quality, precise components used in industries like automotive, medical, and consumer electronics. This article delves into the technical nuances of flash, offering practical solutions to prevent and fix it, from optimizing mold design to fine-tuning injection parameters. Whether you’re an engineer, designer, or manufacturer, this guide provides actionable insights to minimize flash, enhance efficiency, and ensure consistent part quality. Discover expert tips and choose reliable injection molding services like Ultirapid to elevate your production process.
What Is Injection Molding Flash?
Injection molding flash is excess plastic that escapes the mold cavity, forming thin, unwanted protrusions on parts, often requiring costly post-processing to achieve desired quality and functionality.

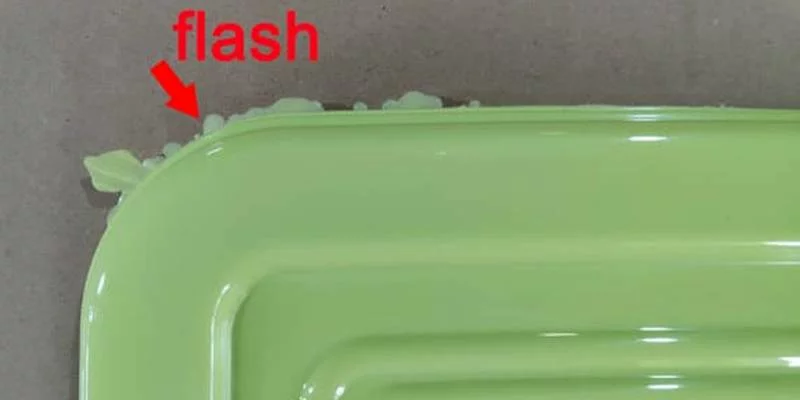

Injection molding flash refers to the thin layer of excess plastic that forms along the parting line or seams of a molded part, where the mold halves meet. This defect appears as a burr or unwanted flange, compromising the part’s aesthetics, functionality, and dimensional accuracy. Flash occurs when molten plastic seeps into gaps between mold components during the injection process, often due to high pressure, mold wear, or improper clamping.
Flash is a common issue in injection molding, affecting industries like automotive, medical, and consumer goods, where precision is critical. For example, flash on a medical device housing can hinder assembly or compromise sterility, while in automotive parts, it may affect fit and performance. While minor flash can sometimes be trimmed, severe cases may render parts unusable, increasing scrap rates and costs.
The severity of flash varies, from barely noticeable to significant protrusions requiring extensive rework. Identifying flash early in the production process is essential to minimize waste and ensure high-quality parts. Understanding its causes and implementing preventive measures can significantly improve manufacturing outcomes.
The severity of flash varies, from barely noticeable to significant protrusions requiring extensive rework. Identifying flash early in the production process is essential to minimize waste and ensure high-quality parts. Understanding its causes and implementing preventive measures can significantly improve manufacturing outcomes.
What Causes Injection Molding Flash?
Injection molding flash results from multiple factors, including mold design flaws, material properties, and processing errors, each contributing to plastic seepage during the molding cycle.Several factors contribute to injection molding flash, each rooted in the interplay of mold design, material behavior, and processing conditions.
Improper Mold Design
Gaps or misalignments in the mold’s parting line, often due to poor machining or wear, allow molten plastic to escape. Inadequate venting can also increase internal pressure, forcing plastic into unintended areas.
Insufficient Clamping Force
If the clamping force is too low, the mold halves may not seal tightly, enabling plastic to seep out. This is common with high-viscosity materials or high injection pressures.
Material Properties
Low-viscosity plastics, like polyethylene, flow more easily and are prone to flashing if not properly controlled. Inconsistent material properties, such as varying melt flow rates, can exacerbate the issue.
Excessive Injection Pressure
Overly high pressure can force plastic into small gaps, especially in worn or poorly designed molds, leading to flash formation.
Mold Wear and Damage
Over time, molds degrade, creating micro-gaps or surface imperfections that allow plastic to escape. Regular maintenance is critical to prevent this.
Incorrect Processing Parameters
Improper settings, such as excessive injection speed, high melt temperature, or inadequate cooling time, can increase the likelihood of flash by affecting material flow and mold stability.
Understanding these causes is the first step toward effective prevention. By addressing mold design, clamping force, material selection, and process parameters, manufacturers can significantly reduce flash occurrences.
How To Prevent Flash In Injection Molding?
Preventing injection molding flash requires proactive measures, from optimizing mold design to fine-tuning processing parameters, ensuring high-quality parts and efficient production processes.Preventing flash in injection molding involves addressing its root causes through careful design, material selection, and process optimization.
Optimize Mold Design
Ensure precise mold machining with tight tolerances to eliminate gaps in the parting line. Incorporate proper venting to manage internal pressure and prevent plastic seepage. Use robust materials like hardened steel for high-wear molds.
Increase Clamping Force
Match the clamping force to the material’s viscosity and injection pressure. Calculate the required force based on the projected area of the part and ensure the molding machine can deliver sufficient tonnage to keep the mold sealed.
Select Appropriate Materials
Choose resins with suitable viscosity for the mold and application. For example, high-viscosity materials like polycarbonate are less prone to flashing than low-viscosity ones like polyethylene. Ensure consistent material quality to avoid variations.
Adjust Injection Parameters
Optimize injection pressure, speed, and melt temperature to prevent over-pressurization. Use a gradual injection profile to control material flow and avoid forcing plastic into gaps. Ensure adequate cooling time to stabilize the part before mold opening.
Regular Mold Maintenance
Inspect and maintain molds regularly to repair wear, polish parting lines, and address surface imperfections. Implement a maintenance schedule to prevent degradation that could lead to flash.
Use Advanced Simulation Tools
Employ mold flow analysis software to predict material behavior and identify potential flash risks before production. This allows for design adjustments to optimize resin flow and pressure distribution.
Implement Automation And Monitoring
Use sensors and real-time monitoring systems to detect pressure or alignment issues during molding, enabling immediate adjustments to prevent flash.
By combining these strategies, manufacturers can proactively reduce flash, improving part quality and reducing post-processing costs. Collaboration with experienced molding partners can further enhance prevention efforts.
How To Fix Injection Molding Flash?
Fixing injection molding flash involves addressing existing defects through post-processing techniques and correcting underlying issues to prevent recurrence, ensuring high-quality, functional parts.When flash occurs, manufacturers must address both the defective parts and the root causes to prevent future issues.
- Post-Processing Techniques:
Trimming: Minor flash can be removed manually or with automated tools like knives, grinders, or laser cutters. This is suitable for low-volume runs but can be labor-intensive.
Deflashing Machines: For high-volume production, cryogenic deflashing or vibratory tumbling can remove flash efficiently without damaging parts.
Surface Finishing: After flash removal, polishing or sanding may be needed to restore aesthetics and functionality, especially for visible components like consumer goods.
- Correct Mold Issues:
Inspect the mold for wear, misalignment, or damaged parting lines. Repair or re-machine the mold to restore tight tolerances.
Add or improve venting to manage internal pressure, reducing the likelihood of plastic seepage.
Upgrade to more durable mold materials if wear is a recurring issue.
- Adjust Clamping Force: Increase clamping force to ensure a tight seal between mold halves. Verify that the molding machine’s tonnage capacity matches the part’s requirements.
- Optimize Processing Parameters: Fine-tune injection pressure, speed, and temperature to prevent over-pressurization. Adjust cooling time to ensure proper part solidification before mold opening.
- Material Adjustments: If flash persists, consider switching to a higher-viscosity resin or ensuring consistent material quality to reduce flow into gaps.
- Retrofitting With Technology: Implement sensors to monitor mold pressure and alignment in real-time, allowing immediate corrections during production. Use mold flow simulation to identify and address flash-prone areas before re-running parts.
Fixing flash requires a balance of immediate defect correction and long-term process improvements. While trimming can address existing parts, addressing mold design, clamping, and parameters prevents recurrence, ensuring consistent quality and cost efficiency.
Choose Ultirapid For Injection Molding Services
Ultirapid offers expert injection molding services, leveraging advanced technology and precision engineering to deliver flash-free, high-quality parts tailored to your project’s needs.
Ultirapid is a trusted partner for injection molding, providing comprehensive solutions to produce high-precision, flash-free components for industries like automotive, medical, electronics, and consumer goods. With state-of-the-art facilities and a team of experienced engineers, Ultirapid ensures optimal mold design, material selection, and process control to minimize defects like flash.
Conclusion
Injection molding flash, while a common challenge, can be effectively managed through proper design, process optimization, and expert manufacturing, ensuring high-quality, defect-free parts.
Injection molding flash is a preventable defect that impacts part quality and production efficiency. By understanding its causes—such as mold misalignment, insufficient clamping force, or improper material selection—manufacturers can implement targeted prevention strategies. Optimizing mold design, adjusting processing parameters, and maintaining equipment are critical to minimizing flash. When flash occurs, post-processing techniques like trimming or deflashing, combined with process corrections, restore part quality and prevent recurrence. Partnering with experienced providers like Ultirapid ensures access to advanced technology, expert mold design, and comprehensive support, delivering flash-free components tailored to industries like automotive, medical, and electronics. As manufacturing demands precision and efficiency, mastering flash prevention and fixes is essential for producing high-performance parts. By adopting the strategies outlined in this guide, manufacturers can enhance quality, reduce costs, and stay competitive in the fast-evolving world of injection molding.
