Plastic Welding: Definition And Their Types

Ever had any plastic part broken and tried hard to find an effective method of repairing it? Alternatively, looking for an effective technique of joining the plastic materials? Plastic welding may be what you are looking for. What is plastic welding and what kinds of plastic welding techniques are out there in response to various needs and applications? Plastic welding can be, in some sense, a somewhat variable process depending on the person’s perception.

This paper does depict what plastic welding precisely is, and it does go further to discuss the most common types employed in today’s manufacture of materials.

What Is Plastic Welding?

Plastic welding is a technique where heat and pressure are applied to melt and join two or more plastic materials at the molecular level. This yields a joint that is as strong and durable as the surrounding material, hence quality and durable joints. This can be done on a wide range of plastics: PVC, PE, ABS, PMMA, PET, PP, and PC-a very versatile use for the manufacturer’s products.

Plastic welding is widely used in several industries, such as automotive, aerospace, construction, medical devices, and manufacturing. It represents one of the most realistic ways of joining plastic parts. Several variations in plastic welding techniques exist, all based on a similar principle-heating the plastic up to its melting point and fusing the materials together with applied pressure. Due to this adaptability and strength, plastic welding continues to be the preferred method for industries requiring durable, efficient, and accurate plastic connections.

Plastic Welding Steps

Plastic welding is a process in which plastic surfaces are heated up to a molten state and are joined by the application of pressure between the parts. The technique insinuates in a smooth, solid bond. Understanding this process is important when trying to choose the right welding method for specific needs.

Step 1: Surface Preparation

Before the actual welding of the plastic parts together, cleaning of the surfaces to be welded should be performed. Cleaning can be performed with soap and water to remove dirt and contaminants from the surface. After cleaning, it should be wiped dry using a lint-free cloth. Where there is a stubborn stain or residue on the thermoplastic material, cleaning can be performed with solvent or sandpaper. Proper surface preparation will provide a quality weld with strong bonds between the materials.

Step 2:Application Of Heat And Pressure Step 2

The welding of plastic parts is done by heating the surfaces to be joined. Normal welding equipment required to generate such heat includes a hot air gun, soldering iron, welding gun, or welding rods. Almost all the welding processes also require certain equipment to hold the parts in place during heating. During this process, the operator should wear protective gear against burning or heat injury, such as wearing heat-resistant gloves and safety goggles from flying debris.

Step 3: Cooling

The final stage is allowing the plastic melt to cool down and attain room temperature. This is critical because, as it starts cooling down and solidifying, it forms a very strong and permanent joint between the materials, thus forming a firm and secure connection.

What Are The Types Of Plastic Welding?

Plastic welding is a technique of joining heat and pressure or a combination to plastic materials. Various techniques are available, and each is best fitted to specific uses and materials. There are several variations for welding plastics, each serving different uses and other materials.

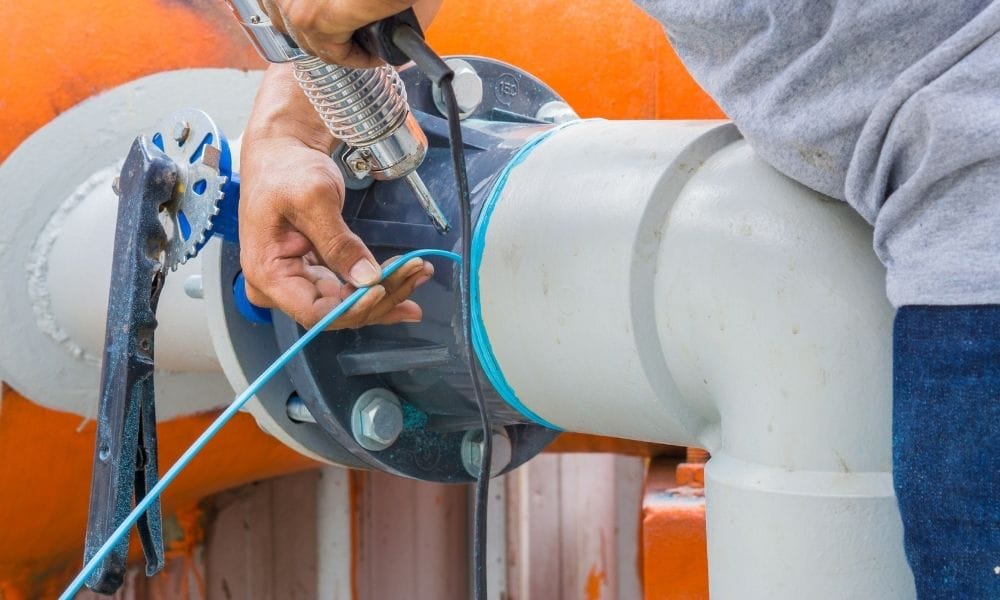

Hot Air Welding

Hot air welding makes use of a hot air gun that blows heated air onto the plastic parts, which softens them. The parts melded together under pressure, and a filler rod can be used. It is best for thermoplastics like PVC and polyethylene.

Ultrasonic Welding

The use of high-frequency sound waves characterizes the friction that, in turn generates heat in ultrasonic welding. Consequently, the vibrations melt the interface of two plastic parts to join them with no need for filler material. It is largely used for small and intricate components.

Spin Welding

Both parts are rotated, one against the other, while one of them is in a stationary position. The friction that is developed melts the material at the interface and results in a strong bond. Examples of cylindrical plastic parts which can be joined by this technique include pipes and caps.

Friction Welding

This process relies on mechanical motion to provide heat by rubbing together the two plastic parts. The resultant heat melts the material at the joint and thus fuses the parts. Quite effective for large, thicker plastic components requiring durable bonds.

Laser Welding

Laser welding: It involves melting the interface of two plastic parts by a focused laser beam, thus bonding them. This technique is highly accurate; it can be used for transparent plastics also. It has applications in industries ranging from medical to automotive.

Solvent Welding

The action of a solvent involved in solvent welding dissolves the surface of the plastic parts, serving to soften them. While evaporating, the parts fuse together, forming a strong bond. It is used widely in joining PVC pipes and fittings.

Vibration Welding

Vibration welding applies high-frequency mechanical vibrations to plastic components, causing friction at the contacting surfaces. This friction causes heat to be generated that softens the material to the extent that allows fusion. This technique is used for larger components and represents a commonly used technique within the automobile and appliance industries.

Induction Welding

Induction welding uses electromagnetic induction for heating up the plastic parts. A high-frequency electromagnetic field causes heating, which induces melting of the material. It finds use in welding metal parts coated with plastic or where finicky accuracy is needed.

Hot Plate Welding

In the hot plate welding process, a heated metal plate is brought into contact with the surfaces of two plastic parts. The softened parts are pressed together and a strong bond is achieved. It’s normally used on larger plastic components such as automotive body panels.

Butt Fusion Welding

The heated plate is brought into contact to heat the ends of thermoplastic pipes with the intent of joining them by a process known as butt fusion welding. The parts, after softening, are pressed together, thereby making the joint without seams applied in building and plumbing industries.

Each of the plastic welding methods has its own set of advantages based on materials, part sizes, and the requirements of production. Understanding the differences in methodologies and applications aids the manufacturer in selecting the proper technique to suit their needs-bestowing efficiency and quality in welding.

Plastic Welding Advantages

Plastic welding offers several considerable advantages over conventional joining techniques, like adhesives or mechanical fasteners. It can create strong, dependable bonds and can also eliminate the need for additional material. The following section enumerates the key advantages of plastic welding.

Plastic welding has a number of important advantages to make it desirable for the joining of plastic materials. First, in most instances the joints are stronger compared to the parent material and thus guarantee durability and long performance. For the strength and durability that welding creates in pieces, plastic welding can be used on applications involving robust, high-performance parts. Similarly, many welding techniques produce airtight and watertight joints, which are recommended for containers, tanks, and pipes, where leak prevention is critical.

The other big advantage of plastic welding is the cost-effectiveness. For volume applications, this is often a much lower-cost process than conventional methods of adhesives or mechanical fasteners due to lower material waste and lower labor costs. The clean, seam-free joints from the welded processes improve the appearance of the product. Plastic welding is versatile; it can be applied to a wide range of materials and is used across industries from small components to large structures.

Applications Of Plastic Welding Parts

Plastic welding is a diversified and essential technology joining plastic materials throughout industries. In aerospace, this is used in fabricating highly accurate and strong parts, interior panels, storage tanks, and trays. The joints should be strong enough to resist extreme conditions of the weather. Agricultural plastic welding produces very dependable parts like gaskets, PVC fences, water storage tanks, and irrigation pipes. It gives out long service in outdoor exposure.

Plastic welding in the automotive sector involves assembling components such as grilles, radiators, battery boxes, and bumpers. Stronger bonds mean increased safety and better performance. Plastic welding is widely applied in marine industries for the fabrication of corrosion-resistant parts like ship hulls, ballast tanks, and water containers, all requiring durability and leak-proof performance. The last but not least is piping; plastic welding can easily construct leak-proof junctions in pipes, faucets, and drainage systems with guaranteed long-time reliability.

Conclusion

Plastic welding is a very versatile and effective technique that has a wide application in industries for strong, durable, and accurate joints between plastic materials. In aerospace, automotive, agriculture, marine, and even plumbing, plastic welding became a reliable method of joining plastic components with superior strength and durability. Depending on the material requirements and the application, various welding techniques are chosen, including hot air, ultrasonic, and spin welding, to give a wide choice to the manufacturer. Plastic welding continually plays a major role in improving product reliability, safety, and efficiency through strong, leak-free, and corrosion-resistant bonding within a wide array of industries. As technology is improving day by day, more and newer welding techniques and materials will make plastic welding all the more powerful, thereby deluging its position in today’s manufacturing.

Final Thoughts

As a professional with 15 years of experience in injection molding, I understand the critical role plastic welding plays in production. For example, when working on a precision plastic component for an aerospace client, we combined hot air welding and ultrasonic welding techniques to seamlessly join complex parts, ensuring both strength and reliability. By carefully selecting the right welding methods, we were able to optimize production efficiency and maintain the highest quality standards.

At Ultirapid, we bring extensive experience in plastic welding and are skilled at choosing the most suitable technique for each project. Whether for medical, automotive, or aerospace applications, we offer tailored plastic welding solutions that guarantee precision, durability, and exceptional results.
