What Are Semi-Open Impellers?
Ever wondered what makes semi-open impellers a standout in fluid machinery? These hybrid components combine efficiency with solids-handling capabilities. Curious about their structure and purpose? This section explores their definition, design, and why they’re a go-to choice for diverse applications.

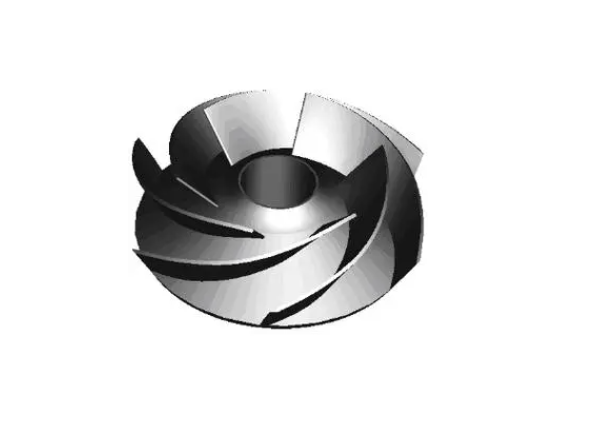

Semi-open impellers feature blades mounted on a single rear shroud, leaving the front exposed. This design, crafted from materials like stainless steel, cast iron, or polymers, balances efficiency and solids handling. Used in centrifugal pumps and mixers, they manage fluids with moderate solids, such as wastewater or slurries, without clogging. Their partially enclosed structure reduces leakage compared to open impellers, offering higher efficiency while maintaining ease of maintenance. Advanced manufacturing, like five-axis machining, ensures precise blade geometry for optimal fluid dynamics in industries like agriculture, mining, and chemical processing.
How Does A Semi-Open Impeller Work?
Semi-open impellers blend the features of open and closed designs, offering a balance between solids handling capability and hydraulic efficiency. Their partially shrouded structure allows fluid to flow efficiently while accommodating suspended solids, making them versatile for a wide range of pumping applications.
Operating Principle
A semi-open impeller consists of curved vanes attached to a central hub with a back shroud but no front cover. As the impeller rotates, fluid enters axially at the center and is pushed outward by centrifugal force through the vane channels. The back shroud supports the vanes structurally, reducing mechanical stress and maintaining shape.
Fluid Flow And Solids Handling
The partial enclosure guides fluid smoothly, improving hydraulic efficiency compared to open impellers while allowing larger solids to pass without clogging. This design is effective for handling slurries, wastewater, and liquids containing fibrous or abrasive particles.
Efficiency And Maintenance
Semi-open impellers achieve moderate hydraulic efficiency, higher than open impellers but lower than fully closed ones. Their open front design simplifies inspection and cleaning, reducing downtime and maintenance costs in applications where fluid contamination or wear is common.
Materials Used For Semi-Open Impellers
Selecting the right material for semi-open impellers is crucial to ensure durability, corrosion resistance, and optimal performance in various pumping conditions. Material choice depends on factors like fluid type, temperature, abrasive content, and mechanical stress. Below are common materials used in semi-open impeller manufacturing.
Cast Iron
Cast iron is a popular choice for general-purpose semi-open impellers due to its good wear resistance, machinability, and cost-effectiveness. It works well in clean or mildly abrasive fluids but is less suitable for highly corrosive environments.
Stainless Steel
Stainless steel offers superior corrosion resistance and strength, making it ideal for aggressive fluids and sanitary applications. Grades like 304 and 316 stainless steel are commonly used, especially where hygiene and durability are priorities.
Bronze
Bronze is favored in marine and chemical applications for its corrosion resistance, especially against seawater and certain chemicals. Its good machinability and moderate strength make it suitable for semi-open impellers exposed to harsh conditions.
Duplex And Super Duplex Stainless Steels
These high-performance alloys provide exceptional strength and corrosion resistance, particularly in chloride-rich or highly corrosive environments. They are often used in demanding industrial or offshore pumping applications.
Engineering Plastics And Composites
In specific applications requiring lightweight and corrosion-resistant impellers, materials like reinforced plastics or composite polymers are used. These offer excellent resistance to chemical attack but have limited mechanical strength compared to metals.
Aluminum Alloys
Aluminum alloys are sometimes chosen for lightweight applications with low corrosion risk. They provide ease of manufacturing and reduced pump weight but may wear faster under abrasive conditions.
Advantages And Disadvantages Of Semi-Open Impellers
Semi-open impellers offer a balanced design combining moderate efficiency with solids handling capabilities. Understanding their advantages and limitations helps engineers and operators select the best impeller type for specific pumping challenges.
Advantages
Why choose semi-open impellers for fluid-handling systems? Their blend of efficiency and adaptability offers compelling benefits.
- Good Solids Handling: Semi-open impellers handle suspended solids and fibrous materials better than closed impellers, reducing clogging risks.
- Moderate Hydraulic Efficiency: They provide better efficiency than open impellers, offering a practical compromise in performance.
- Easier Maintenance: The open front design allows easier inspection, cleaning, and repair compared to fully closed impellers.
- Structural Strength: The back shroud adds rigidity and protects vanes from mechanical damage.
- Versatility: Suitable for a wide range of fluids including slurries, wastewater, and mildly abrasive liquids.
Disadvantages
- Lower Efficiency Than Closed Impellers: While better than open types, their hydraulic efficiency is still below that of fully closed impellers.
- Moderate Solids Limitations: They cannot handle very large or highly abrasive solids as effectively as open impellers.
- Wear And Corrosion Risks: The exposed vane surfaces can be more susceptible to erosion and corrosion, requiring careful material selection.
- Potential For Imbalance: Semi-open impellers require careful balancing to avoid vibration and premature wear.
Common Applications Of Semi-Open Impellers
Semi-open impellers are favored in industries requiring a balance between efficient fluid handling and the ability to manage solids or fibrous content. Their versatile design suits a wide range of fluids, making them indispensable in many sectors with moderate contamination and abrasion challenges.
Wastewater Treatment
Semi-open impellers efficiently handle sludge, suspended solids, and fibrous materials commonly found in wastewater, making them ideal for municipal and industrial sewage treatment plants.
Pulp And Paper Industry
In pulp processing, semi-open impellers manage fibrous slurries and abrasive liquids, providing reliable operation in paper mills and related manufacturing facilities.
Chemical Processing
These impellers handle corrosive and viscous fluids, often containing suspended solids, used in chemical reactors, mixing tanks, and transfer pumps.
Mining And Mineral Processing
Semi-open impellers pump abrasive slurries, tailings, and thickened suspensions in mineral extraction and processing, balancing wear resistance and flow efficiency.
Food And Beverage Industry
Used for pumping liquids containing pulp, seeds, or fibers, semi-open impellers maintain hygienic standards while ensuring smooth flow in juice, dairy, and other food processing plants.
Marine Applications
Semi-open impellers are used in bilge, ballast, and cooling systems where water may contain debris or marine growth, offering robustness and reliability.
Agricultural Irrigation
In irrigation systems, semi-open impellers handle water with suspended solids like sand or plant matter, providing durable and efficient performance for crop watering.
Maintenance Tips For Semi-Open Impellers
Semi-open impellers are widely used due to their ability to handle liquids containing suspended solids and fibrous materials. However, their partially exposed design makes them more susceptible to wear, corrosion, and clogging. Regular and proper maintenance is essential to maintain pump efficiency, extend service life, and minimize unexpected downtime. Below are detailed maintenance tips to keep your semi-open impeller in top condition.
Regular Visual And Dimensional Inspection
Perform routine visual inspections to detect cracks, corrosion, erosion, or material loss on the impeller blades, back shroud, and hub. Use measuring tools like calipers to check for wear-related changes in blade thickness or clearance gaps that could affect performance.
Thorough Cleaning Procedures
Semi-open impellers tend to accumulate debris, sludge, and fibrous buildup. Regularly disassemble and clean the impeller using high-pressure water jets, brushes, or suitable solvents. Ensure the cleaning agents are compatible with the impeller material to prevent chemical damage.
Vibration And Noise Monitoring
Monitor the pump for increased vibration or unusual noises during operation. Excessive vibration often indicates imbalance, blade damage, or bearing wear. Use vibration analyzers periodically to detect issues early, and balance the impeller if necessary.
Lubrication And Seal Integrity Checks
Bearings and mechanical seals linked to the impeller shaft require regular lubrication per manufacturer recommendations to prevent overheating and wear. Inspect seals frequently for leaks, wear, or aging to avoid fluid ingress or egress that could impair pump function.
Corrosion And Wear Protection
Implement corrosion control measures based on the fluid type. For corrosive or saline fluids, consider applying protective coatings or surface treatments to the impeller. For abrasive applications, use wear-resistant alloys or surface hardening techniques to reduce blade erosion.
Post-Repair Dynamic Balancing
After any welding, blade repair, or machining, always perform dynamic balancing to restore smooth operation. Improper balance can increase vibration, accelerate bearing and seal wear, and cause premature equipment failure.
Five-Axis Machining In Semi-Open Impeller Production
How does advanced technology shape semi-open impellers? Five-axis machining delivers precision for complex designs. Want to know its impact? This section examines the role of five-axis machining in crafting high-performance semi-open impellers.
Five-axis CNC machining enables multi-angle milling of semi-open impellers, achieving tolerances as low as ±0.01 mm. It minimizes setups, reducing errors and production time. Ideal for stainless steel or polymer impellers, it optimizes blade angles for wastewater and mining applications. Advanced CAM software, like PowerMILL, generates interference-free toolpaths, ensuring smooth surfaces and efficient flow channels, critical for industrial pumps and mixers.
Future Trends In Semi-Open Impeller Technology
What’s next for semi-open impellers? As industries demand versatility and sustainability, these components are evolving. Excited about the innovations ahead? This section highlights emerging trends shaping the future of semi-open impeller design.
New wear-resistant composites enhance durability in abrasive environments. Additive manufacturing enables rapid prototyping, cutting costs by 15%. Smart impellers with sensors monitor performance, reducing maintenance by 20%. Sustainable manufacturing, using recyclable polymers and energy-efficient processes, aligns with green goals. These trends ensure semi-open impellers remain vital in wastewater, renewable energy, and smart industrial systems.
Conclusion
Semi-open impellers are engineering marvels, blending efficiency and solids-handling capabilities to power diverse fluid systems. From wastewater treatment to food processing, their half-shrouded design delivers reliability and versatility. With advancements in materials, five-axis machining, and smart technology, semi-open impellers are poised for a sustainable, high-performance future. Whether you’re an engineer or industry enthusiast, these components offer innovative solutions. Embrace their potential and elevate your fluid systems with semi-open impellers today.
