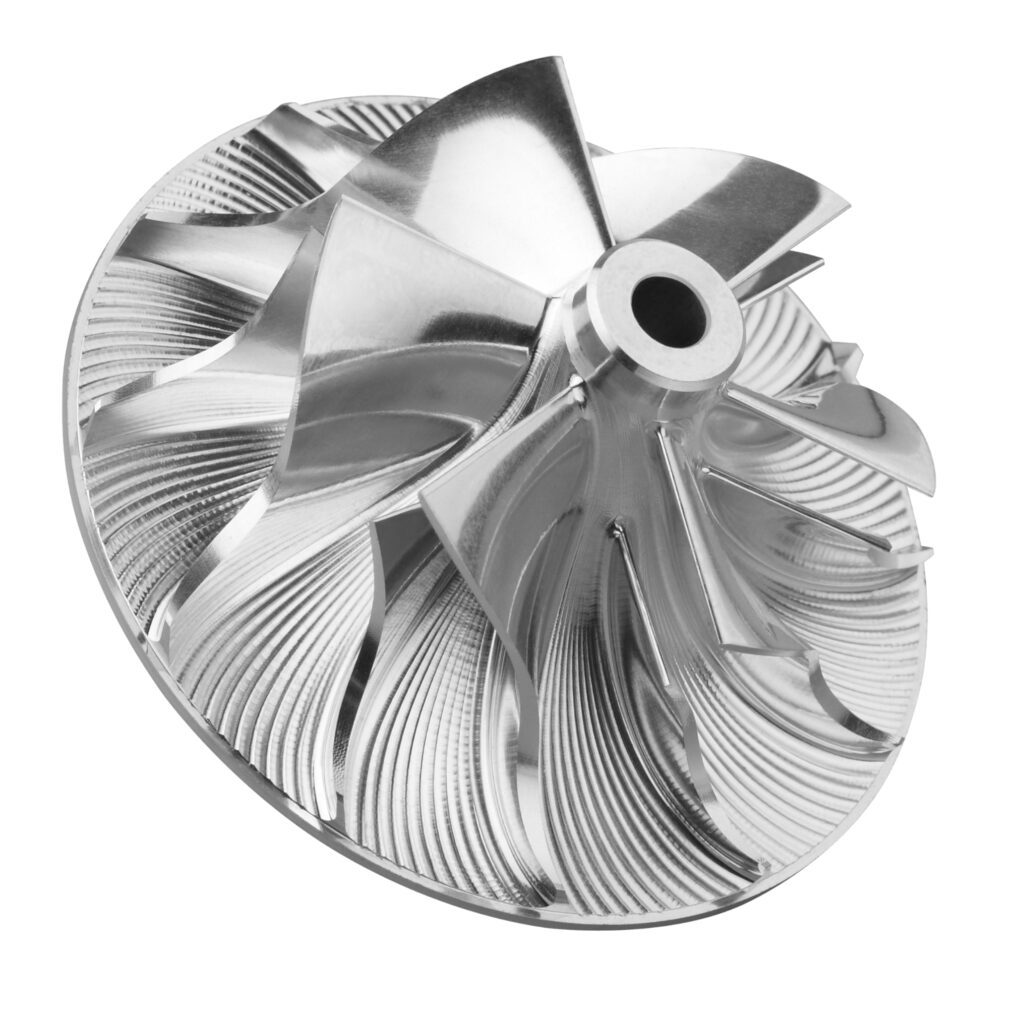

Turbomolecular pumps are vital in creating ultra-high vacuum environments necessary for advanced scientific research, semiconductor fabrication, and aerospace applications. At the core of these pumps lies the impeller—a precision-engineered rotating component that directly affects pumping efficiency, reliability, and operational lifespan. The impeller’s structural design and machining quality are paramount; even minor deviations can drastically reduce pump performance. This article explores essential structural details of turbomolecular pump impellers, focusing on how their design intricacies influence manufacturing and assembly. We will analyze key factors such as blade arrangement, geometric parameters, materials selection, machining precision, and process optimization. Understanding these details ensures superior pump performance and longevity, making the complex impeller machining process more manageable and effective.
Turbine Molecular Pump Impeller Structure Characteristics
Understanding the impeller’s intricate structure is fundamental for effective machining and subsequent pump performance optimization. The unique blade arrangement and geometric precision play vital roles in pump efficiency.
Alternating Arrangement Of Rotating And Stationary Blades
Turbomolecular pump impellers feature a multi-stage design, achieved by the alternating arrangement of rotating blades (rotors) and stationary blades (stators). This configuration enables efficient molecular momentum transfer.
- The sequence follows: rotor blade → stator blade → rotor blade, creating multiple compression stages.
- Rotor and stator blades have nearly identical sizes but with opposite blade inclination angles to control gas flow direction.
- Stationary blades are mounted between rotor blades with an outer ring securing them, maintaining a critical clearance gap of approximately 1 mm to prevent mechanical contact while allowing optimal gas passage.
Blade Geometric Parameters
Blade geometry profoundly impacts pumping efficiency and compression ratio, necessitating precise control over multiple parameters:
- Blade angle: Suction-stage blades generally have angles of 30° to 40°, while compression-stage blades are closer to 20°.
- Chord-to-spacing ratio: Typically 1 for suction stages, and between 0.7 and 0.8 for compression stages.
- Blade Thickness: Approximately 0.15 mm for suction blades, slightly thicker for compression blades to maintain strength.
- Blade Spacing: 1 mm for suction stages, and around 1.4 mm for compression stages.
These dimensions influence gas flow velocity and molecular collision frequency, directly affecting pump performance.
Blade Structural Form And Connection
Blades feature complex curved surfaces designed to optimize aerodynamics and mechanical stability.
- Shapes include circular arcs, second-order, or even third-order curved surfaces, improving gas dynamic efficiency.
- Blade roots and tips require careful design to maintain balance and surface finish quality, critical to reducing vibration.
- Blade attachment methods include welding or T-shaped locks, ensuring firm connection without compromising rotational accuracy.
- Precise mating of blade roots to impeller disks improves assembly integrity and operational stability.
Machining Challenges And Requirements For Turbine Molecular Pump Impellers
Manufacturing turbomolecular pump impellers demands advanced machining capabilities due to their intricate structure, thin blades, and strict performance criteria. This section highlights the challenges and critical machining requirements.
Material Selection
Selecting appropriate materials is foundational to ensuring the performance of turbine molecular pump impellers. The materials must balance strength, corrosion resistance, and machinability to meet the demanding operating environment. Common materials include high-strength aluminum alloys such as 7075-T6 and titanium alloys, valued for their excellent strength-to-weight ratio and corrosion resistance.
Moreover, the materials must be compatible with heat treatment processes, which help improve fatigue life—a critical factor given the high rotational speeds of the impellers. Thermal stability and resistance to deformation during machining are also essential to maintain dimensional accuracy and mechanical integrity.
Precision Machining Requirements
High-precision machining is required to meet stringent dynamic balance and surface finish standards. To minimize vibration, the impellers must maintain vibration amplitudes below 5 microns at speeds up to 6000 rpm, which is crucial for bearing longevity and stable operation.
Additionally, the surface roughness needs to be controlled below Ra 1.6 microns to reduce gas flow resistance and improve pump efficiency. The gap between rotor and stator blades must be tightly controlled around 1 mm to ensure optimal flow performance while avoiding mechanical contact or damage.
Machining Processes And Tooling
Due to the complex 3D geometry and thin-wall structure of the blades, five-axis CNC machining is typically employed, allowing multi-axis simultaneous movement to reduce repositioning errors.
Special cutting tools designed specifically for thin-wall machining minimize deflection and vibration, preventing part deformation during the cutting process. Fixture design is critical as well, requiring rigid, low-force clamping systems that avoid distorting delicate blade structures. Post-machining heat treatment is often applied to relieve residual stresses and enhance material properties.
Dynamic Balancing And Vibration Control
Rigorous dynamic balancing procedures are key to reducing vibration and noise during high-speed rotation. Excessive vibration can cause bearing damage and accelerate blade fatigue, significantly shortening pump service life.
Fine balancing adjustments during assembly and testing are crucial to ensure stable and reliable operation. This not only enhances pump performance but also reduces maintenance costs and extends equipment longevity.
Surface Quality And Edge Treatment
Blade edges must be free of burrs and scratches to ensure smooth airflow and prevent flow disturbances. Surface finishes must meet design roughness requirements to reduce friction losses and improve gas pumping efficiency.
Edge rounding and polishing help minimize stress concentration points, preventing crack initiation and propagation, thereby improving the structural strength and durability of the impeller.
Structural Design And Machining Optimization
Optimizing impeller design and machining processes enhances pump performance and manufacturing efficiency.
Blade Structure Optimization
Finite element analysis (FEA) is a crucial tool used to analyze and optimize the stress distribution across turbine impeller blades. By identifying areas of high localized stress, engineers can modify blade geometry to reduce these stress concentrations, thereby enhancing the overall durability and fatigue life of the impeller. This proactive approach minimizes the risk of premature failure under high rotational speeds and complex loading conditions.
Additionally, blade angles and chord length ratios are meticulously adjusted to strike a balance between aerodynamic efficiency and mechanical strength. This fine-tuning maximizes the impeller’s pumping efficiency and compression ratio, ensuring superior performance without compromising structural integrity. Optimized blade designs therefore deliver both high aerodynamic performance and long-term reliability.
Machining Path Planning
Advanced digital twin technology is leveraged to create virtual simulations of the entire machining process. This enables engineers to plan and verify machining paths in a risk-free environment, preventing costly tool collisions, material overcuts, and errors that could damage delicate blade geometries. Such simulations also help optimize tool movements for maximum efficiency.
Segmented machining strategies are employed to ensure each blade is machined with consistent geometry and surface finish. By breaking down the complex impeller structure into manageable sections, manufacturers can maintain tight tolerances and uniform quality across all blades. This systematic approach reduces trial-and-error during production, significantly cutting down machining time and costs.
Process Trials And Validation
Before full-scale production, prototype impellers undergo rigorous machining trials and performance testing. These trials validate critical parameters such as dynamic balance, surface quality, and aerodynamic efficiency to ensure the final product meets stringent specifications.
Machining parameters—including cutting speed, feed rate, and depth of cut—are refined based on data collected from these prototype runs. Continuous feedback loops between machining trials and design adjustments enable ongoing process optimization, enhancing production efficiency and ensuring consistent, high-quality output throughout manufacturing.
Conclusion
The structural details of turbomolecular pump impellers directly influence the pump’s vacuum performance, operational stability, and lifespan. Attention to blade geometry, material choice, machining precision, and post-processing ensures superior pump quality. Future advancements in materials, multi-axis machining, and intelligent manufacturing will further improve impeller production. Emerging technologies like additive manufacturing and AI-driven process control promise enhanced design flexibility and machining accuracy, driving turbomolecular pump performance to new heights.
| Structural Detail | Machining Requirement | Description |
| Blade Angle | 30°–40° (suction stage); 20° (compression stage) | Influences pumping efficiency and compression ratio |
| Chord-to-Spacing Ratio | 1 (suction stage); 0.7–0.8 (compression stage) | Balances aerodynamic performance and structural strength |
| Blade Thickness | 0.15–0.2 mm (suction stage); 0.2 mm (compression stage) | Affects dynamic balance and mechanical integrity |
| Blade Spacing | 1 mm (suction stage); 1.2–1.4 mm (compression stage) | Controls gas flow dynamics and compression |
| Surface Roughness | Ra ≤ 1.6 μm | Ensures smooth gas flow, reduces friction |
| Dynamic Balance | Vibration amplitude < 5 μm at 6000 rpm | Maintains stable high-speed operation |
| Clearance Gap | ~1 mm | Prevents contact, ensures efficient flow |
| Material | 7075-T6 aluminum alloy or titanium alloy | Provides strength, corrosion resistance, machinability |
| Machining Method | Five-axis CNC machining | Enables complex geometry and thin-wall processing |
| Cutting Tools | Thin-wall-specific tooling | Prevents deformation and tool interference |
| Heat Treatment | Residual stress relief | Enhances fatigue resistance and dimensional stability |
