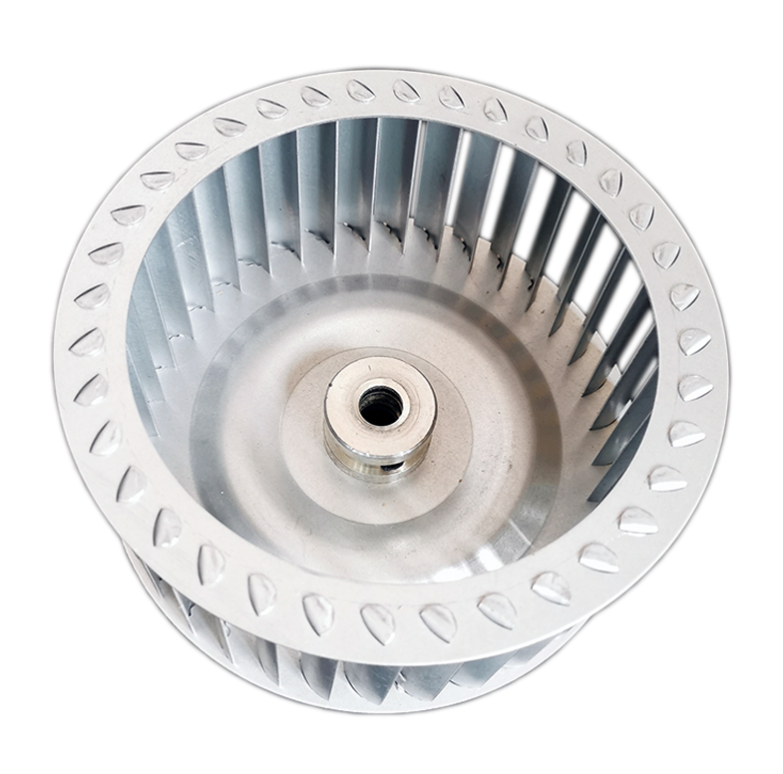

The Ultimate Guide To High-Temperature Impellers

High-temperature impellers are critical components in industries such as aerospace, energy, and chemical processing, with their market demand surging. According to market research, the global high-temperature impeller market reached $5 billion in 2024 and is projected to exceed $7 billion by 2028, with a compound annual growth rate (CAGR) of over 8%. Yet, a pressing challenge persists: how can materials withstand temperatures beyond 800°C while maintaining performance in extreme conditions? This comprehensive guide delves into the materials, design optimization, testing standards, industry applications, and future trends of high-temperature impellers. Packed with high-temperature impeller selection tips and practical solutions, it empowers engineers and manufacturers to excel in demanding environments.

Core Material Technologies For High-Temperature Impellers

Selecting the right high-temperature impeller material is foundational to ensuring performance and longevity. Nickel-based alloys, titanium alloys, and ceramic composites are the primary contenders. Below is a comparison of their temperature limits and characteristics:

Impact of Material Choice On Impeller Lifespan

Nickel-based alloy impellers excel in applications like aerospace engines and gas turbines due to their superior creep resistance and oxidation resistance, often achieving lifespans exceeding 10,000 hours. However, their high cost can be a barrier. Titanium alloy impellers are ideal for medium-temperature environments, such as automotive turbochargers, where their lightweight properties reduce shaft loads, but they risk fatigue failure above 800°C. Ceramic-coated impellers, combining a metal base with ceramic coatings, push temperature limits to 1200°C, though coating delamination remains a concern. Material selection must consider operating temperature, budget, and expected service life to optimize performance and cost-effectiveness.

Structural Design Optimization For High-Temperature Environments

High-temperature impeller design is critical to stability in extreme conditions. Centrifugal and axial-flow impellers exhibit distinct behaviors under high temperatures, necessitating tailored design approaches:

• Centrifugal Impellers: These drive fluid radially, suiting high-pressure, low-flow applications like chemical pumps. Their compact structure is vulnerable to thermal distortion, requiring anti-thermal deformation structures, such as thickened blade roots or enhanced cooling channels.
• Axial-Flow Impellers: These move fluid axially, ideal for high-flow, low-pressure systems like gas turbines. High temperatures increase creep risks, necessitating blade twist optimization and material reinforcement.

Design Optimization Strategies

• Cooling Channel Design: Incorporating micro-cooling channels within the impeller, using air or liquid cooling, reduces blade temperatures by 100-200°C. For instance, aerospace impellers often combine nickel-based alloys with internal cooling for enhanced performance.
• Blade Geometry Optimization: Computational Fluid Dynamics (CFD) simulations refine blade angles and curvature, minimizing thermal stress concentrations and improving resistance to deformation.
• Five-Axis Machining: Five-axis CNC machines enable precise machining of complex geometries, achieving surface roughness (Ra<0.4μm), which optimizes fluid efficiency and reduces wear.

Key Performance Indicators (KPIs) And Testing Standards

High-temperature impeller performance hinges on critical KPIs, including temperature resistance, creep resistance, and fatigue strength. Industry standards like ISO 1940 for dynamic balancing and ASTM high-temperature testing provide rigorous benchmarks.

Key KPIs

• Temperature Resistance: The ability to operate stably above 800°C, evaluated via ASTM E139 creep tests.
• Creep Resistance: Resistance to deformation under sustained high temperature and stress, compliant with ISO 204.
• Fatigue Strength: Durability under cyclic loads, verified through ASTM E466 fatigue tests.

High-Temperature Testing Process

• Thermal Shock Testing: Simulates rapid temperature cycles to assess crack formation risks.
• Dynamic Balance Testing: Ensures vibration-free operation at high speeds (>10,000 RPM) per ISO 1940 G2.5.
• High-Temperature Performance Testing: Operates at 800-1200°C, measuring fluid efficiency and structural integrity.

These high-temperature impeller tests guarantee compliance with aerospace, energy, and chemical industry requirements.

Industry Applications And Case Studies

High-temperature impellers serve critical roles across industries, with varying temperature demands:

A petrochemical plant using cast iron impellers faced a 15% failure rate due to high-temperature corrosion and thermal fatigue cracks. Switching to nickel-based alloy impellers with optimized cooling channels reduced the failure rate to 3%, boosted pump efficiency by 12%, and saved approximately $70,000 annually in maintenance costs. This case underscores the importance of material and design advancements in gas turbine impellers and chemical pump impellers.

Maintenance And Failure Prevention

High-temperature impellers are susceptible to failures like thermal fatigue cracks, oxidative corrosion, and blade wear. Below are five warning signs and preventive measures for high-temperature impeller maintenance:

• Unusual Vibration: Indicates imbalance or blade cracks; conduct immediate dynamic balance testing.
• Surface Discoloration: Suggests oxidation; inspect coating integrity promptly.
• Efficiency Drop: Caused by blade wear or blockages; clean or replace as needed.
• Abnormal Noise: Signals thermal deformation or loose blades; requires shutdown inspection.
• Temperature Spikes: Indicates cooling system failure; check cooling channels.

Infrared Thermal Imaging Detection Steps

• Equipment Setup: Use a high-resolution infrared thermal imager (e.g., FLIR T-series), calibrated for 0-1500°C.
• Operating Conditions: Test during normal impeller operation for stable conditions.
• Impeller Scanning: Focus on blade roots and flow channels, capturing temperature distribution maps.
• Data Analysis: Identify hotspots (>design temperature +50°C) or abnormal temperature differences (>20°C).
• Report Generation: Document potential cracks or corrosion areas, outlining maintenance plans.

Regular impeller crack detection and maintenance can reduce failure rates by 30%, extending service life significantly.

Future Trends In High-Temperature Impeller Technology

High-temperature impeller technology is advancing toward higher performance and intelligence, with two high-potential trends:

3D-Printed High-Temperature Impellers

Additive manufacturing, such as Selective Laser Melting (SLM), enables the production of 3D-printed high-temperature impellers with complex cooling hole structures, cutting machining costs by 20%. NASA research indicates that 3D-printed nickel-based alloy impellers improve cooling efficiency by 15%, achieving temperature limits of 1300°C NASA Technical Report. This technology will drive the adoption of customized impellers.

AI-Powered Predictive Maintenance

AI predictive maintenance leverages real-time sensor data on vibration, temperature, and stress, using machine learning to forecast failure risks. An airline implementing AI systems reduced maintenance costs by 25% and downtime by 40%. Integrated with IoT, AI will redefine high-temperature impeller operations.

Challenges And Solutions In High-Temperature Impeller Machining

High-temperature impellers, often made from materials like nickel-based alloys or ceramic composites, present unique machining challenges due to their high hardness, thermal resistance, and complex geometries.

High Tool Wear

Challenge: Nickel-based alloys are abrasive, causing rapid tool wear and increasing costs.

Solutions:

• Use PCD tools for finishing to resist wear and maintain precision.
• Apply TiAlN-coated carbide tools for roughing to reduce friction.
• Optimize five-axis machining tool paths to minimize cutting forces.

Thermal Deformation

Challenge: High cutting temperatures deform thin-walled blades, affecting tolerances.

Solutions:

• Implement high-pressure coolant systems (70-100 bar) to dissipate heat.
• Use cryogenic cooling (e.g., liquid nitrogen) for ultra-high-temperature alloys.
• Adjust cutting parameters (e.g., 50-100 m/min speed, 0.1-0.2 mm/rev feed).

Surface Quality Issues

Challenge: Achieving smooth flow channels (Ra<0.4μm) is difficult due to material hardness.

Solutions:

• Employ five-axis CNC machining for continuous, smooth cuts.
• Use polishing post-processing (chemical or ultrasonic) for mirror-like finishes.
• Monitor tool conditions in real-time to prevent surface defects.

Complex Geometry Machining

Challenge: Intricate blade shapes and cooling holes require high precision.

Solutions:

• Leverage five-axis machining with CAM software for interference-free tool paths.
• Use additive manufacturing for near-net-shape blanks, reducing machining time.
• Simulate machining processes with digital twins to optimize parameters.

Manufacturing High-Temperature Impellers

High-temperature impellers are critical components in gas turbines, jet engines, and high-efficiency industrial pumps. Manufacturing them demands not only cutting-edge materials but also advanced engineering and precision production methods. Below is a detailed breakdown of each manufacturing stage in paragraph form to provide a deeper technical understanding.

Material Preparation

The manufacturing journey begins with selecting the right material capable of withstanding extreme heat and mechanical stress. Nickel-based superalloys such as Inconel 718, Hastelloy X, or Rene 88 are widely used due to their high creep resistance and structural integrity at elevated temperatures. Ceramic matrix composites are also employed in ultra-high-temperature environments, particularly in aerospace. Once selected, the raw materials undergo thorough testing using ultrasonic and eddy current inspections to detect any internal defects or impurities. Purity is critical, as microstructural inconsistencies can compromise the impeller’s performance under thermal cycling. Vacuum induction melting (VIM) and vacuum arc remelting (VAR) are commonly used to refine alloy composition and eliminate gas porosity, ensuring a high-quality base material before shaping begins.

Casting Or Additive Manufacturing

Once materials are ready, the impeller can be shaped using either investment casting or metal additive manufacturing, depending on complexity and production volume. Investment casting involves creating a wax model of the impeller, coating it in ceramic, and then pouring molten alloy into the ceramic mold. This method is ideal for producing complex geometries with high repeatability, especially in medium-to-high volumes. Alternatively, additive manufacturing—such as direct metal laser sintering (DMLS) or electron beam melting (EBM)—offers greater design freedom. Engineers can create internal cooling channels or lattice structures that are impossible to achieve through casting. Moreover, 3D printing often reduces tooling and prototyping costs by 15–20%, making it especially advantageous in low-volume or custom production settings.

Five-Axis CNC Machining

Post-casting or printing, the impeller undergoes fine machining to achieve precise aerodynamic profiles and assembly tolerances. Five-axis CNC machining is the gold standard in this stage, allowing the impeller to be rotated and milled from multiple angles without repositioning. This capability is essential for accurately shaping curved vanes, flow channels, and complex hub geometries. With tolerances as tight as ±0.01 mm, this process ensures optimal fluid dynamics and mechanical balance. Advanced CAM software simulates toolpaths to avoid tool collisions and optimize cutting speeds, particularly important when machining hard-to-cut alloys like Inconel. Specialized ceramic or carbide tools are used to handle the intense cutting forces and heat generated during this stage.

Heat Treatment

To enhance mechanical properties and thermal stability, impellers are subjected to tailored heat treatment cycles. Annealing helps relieve residual stresses and refine the grain structure, making the component more ductile and stable under cyclic loading. Quenching followed by aging, especially in precipitation-hardened alloys, significantly increases tensile strength and resistance to creep deformation. These treatments are conducted in controlled-atmosphere or vacuum furnaces to prevent oxidation and contamination. Each heat treatment cycle is custom-designed based on the specific material and its target operating temperature, ensuring that the impeller performs reliably under real-world thermal loads and rotational speeds.

Surface Finishing

Surface finishing plays a crucial role in ensuring both aerodynamic performance and longevity of high-temperature impellers. A smooth surface minimizes turbulence and flow separation, improving efficiency. Electropolishing or fine mechanical polishing is commonly employed to achieve low surface roughness. In aerospace or gas turbine applications, a thermal barrier coating (TBC) is often applied. These ceramic coatings, usually composed of yttria-stabilized zirconia, insulate the impeller surface from extreme heat, sometimes exceeding 1200°C. Anti-oxidation and corrosion-resistant coatings such as aluminide or MCrAlY (metal-chromium-aluminum-yttrium) are also used to combat the harsh chemical environment found in combustion systems.

Quality Inspection And Testing

The final stage involves rigorous quality assurance procedures to verify that the impeller meets performance, safety, and dimensional standards. Coordinate measuring machines (CMM) are used to check blade angles, radial clearances, and shroud symmetry with micron-level precision. For geometries with internal channels, 3D laser scanning or CT (computed tomography) imaging provides a non-invasive way to inspect for voids, inclusions, or incomplete builds. Dynamic balancing is performed to ensure the impeller rotates smoothly at high speeds, reducing stress on bearings and minimizing vibration. Additional hardness testing and microstructural analysis confirm that the heat treatments were successful and that the material properties align with design specifications.

Comparison Of Impeller Types For High-Temperature Applications

In high-temperature environments, pump systems require impellers with suitable material properties, structural strength, and hydraulic performance. Choosing the right type of impeller is crucial not only for operational efficiency but also for safety and maintenance. Below is a detailed comparison of closed, semi-open, and open impellers, along with the role of five-axis machining in their manufacturing.

Closed Impellers

Closed impellers feature blades that are fully enclosed between a front and back shroud, creating a sealed flow passage. This design significantly improves hydraulic efficiency by minimizing internal leakage and energy loss. Closed impellers are commonly used in high-pressure, high-temperature systems such as boiler feed pumps and steam circulation pumps because of their robust structure and ability to withstand thermal and mechanical stresses.

The main advantage of closed impellers lies in their high efficiency. The enclosed flow channels allow for smooth and stable fluid movement, reducing turbulence and improving overall system performance. However, they are sensitive to fluid cleanliness—if the liquid contains solid particles or fibers, blockages can occur, reducing reliability. Additionally, due to their complex internal geometry, closed impellers are challenging to manufacture and require high precision, especially in high-temperature environments where thermal expansion must be carefully controlled to avoid operational failure.

Semi-Open Impellers

Semi-open impellers have blades that are partially covered by a single shroud on one side, with the other side exposed. This structural design balances efficiency and adaptability, making it ideal for handling fluids with small amounts of solids or moderate viscosity. They are widely used in industries such as chemical processing and pharmaceuticals.

Compared to closed impellers, semi-open impellers offer better resistance to clogging. Their partially open design allows some particles to pass through more easily, making them more suitable for variable or less predictable operating conditions. Maintenance is also easier due to the simpler structure, allowing for easier inspection and cleaning. Although their efficiency is slightly lower than that of closed impellers, their versatility and maintainability make them a stable choice in dynamic environments. However, they are sensitive to the clearance between the impeller and the pump casing—excessive wear or widening of this gap can lead to a significant drop in performance.

Open Impellers

Open impellers have no shroud at all, leaving the blades completely exposed. This structure provides excellent solids-handling capability, making them ideal for pumping fluids with high viscosity, fiber content, or large solid particles. Typical applications include wastewater treatment, slurry transport, and pulp processing.

In operation, open impellers are highly resistant to clogging, even when the medium contains large impurities or fluctuates in composition. Their simple design also makes them easier and cheaper to maintain. However, they offer the lowest hydraulic efficiency of the three types, as the open flow paths cause greater turbulence and energy loss. Additionally, their mechanical strength is limited, making them unsuitable for high-pressure or high-speed applications. Under high-temperature conditions, they may also deform more easily due to thermal expansion.

Conclusion

The performance of high-temperature impellers is determined by the integrated interplay of three key factors: materials, design, and maintenance. Advanced materials such as nickel-based alloys and ceramic composites extend operational temperature limits, ensuring structural integrity under extreme conditions. Innovative design features, including optimized cooling channels and refined blade geometry, contribute to superior thermal stability and fluid dynamics. Meanwhile, modern maintenance practices—like infrared imaging and AI-driven predictive analytics—enhance operational reliability and reduce downtime. By combining these three pillars, manufacturers and operators can unlock high efficiency and durability in demanding applications across aerospace, energy, and chemical industries. Embracing smart impeller selection and cutting-edge technologies is essential to future-proofing high-temperature systems.
