Picture a component that drives fluid with precision, delivering unmatched efficiency in everything from jet engines to water pumps. Closed impellers, with their shrouded blades, are engineering marvels that excel in high-pressure, clean-fluid applications. Dive into this guide to uncover their design, benefits, and why they’re transforming industries worldwide.
What Are Closed Impellers?
What makes closed impellers a cornerstone of fluid machinery? These robust components, with blades enclosed by shrouds, are designed for efficiency and durability. Curious about their unique structure? Explore their definition, design, and why they’re a top choice for high-performance systems.

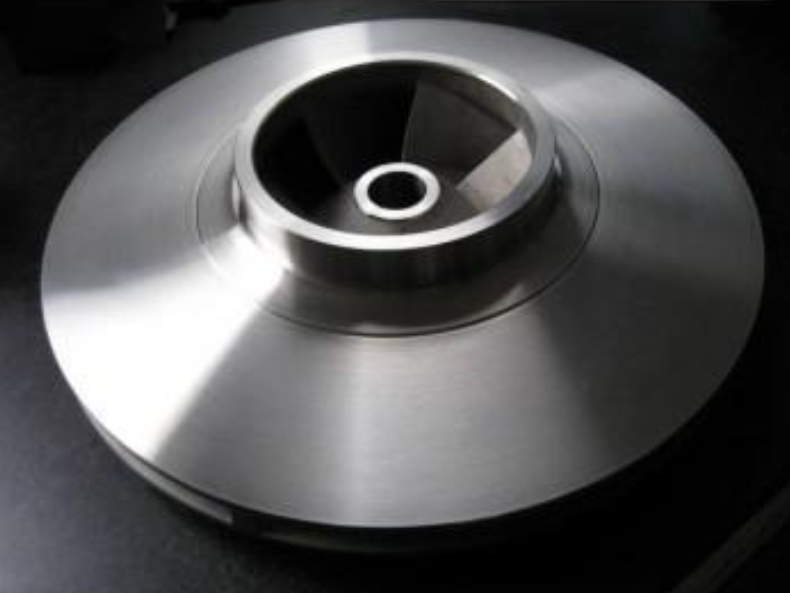

Closed impellers feature blades sandwiched between front and back shrouds, forming enclosed flow passages that enhance efficiency. Crafted from materials like stainless steel, titanium, or aluminum, they’re ideal for clean fluids in applications like centrifugal pumps, turbines, and compressors. The shrouds minimize fluid leakage, boosting pressure and flow control. Used in aerospace, energy, and water systems, closed impellers offer superior performance where precision and reliability are critical. Their complex design requires advanced manufacturing, ensuring optimal fluid dynamics and long-term durability.
Key Features Of Closed Impellers
Closed impellers are widely used in clean, high-pressure fluid systems. With both front and back shrouds enclosing the vanes, they deliver superior hydraulic efficiency, structural integrity, and consistent flow performance. Below are the most important features that define closed impeller technology.
Enclosed Vane Design
Closed impellers fully encase the vanes between front and back shrouds. This design minimizes fluid recirculation and improves efficiency by directing flow smoothly through the pump volute.
Superior Hydraulic Efficiency
The tight internal clearances and smooth pathways reduce turbulence and energy losses. Closed impellers typically deliver the highest efficiency among impeller types, making them ideal for energy-conscious operations.
Structural Rigidity
With shrouds reinforcing both sides of the impeller, this type offers excellent mechanical strength. It performs well under high-pressure and high-speed conditions without risk of vane deformation.
Reduced Leakage
The enclosed construction limits internal leakage from the discharge back to the suction side, improving net pump performance and reducing wear on seals and bearings.
Precision Balancing
Closed impellers require precise manufacturing and dynamic balancing to maintain alignment and minimize vibration. This ensures long service life and quiet operation in sensitive environments.
Limited Solids Tolerance
While efficient, closed impellers are not ideal for handling large or abrasive solids. Even small particulates can clog or damage the internal clearances, making them best suited for clean or lightly contaminated fluids.
Advantages Of Closed Impellers
Closed impellers are valued for their exceptional hydraulic efficiency, long-term durability, and stable performance under demanding conditions. These advantages make them ideal for clean fluid systems and high-head applications where energy savings, precision flow control, and structural strength are critical.
High Hydraulic Efficiency
Closed impellers offer the highest efficiency among impeller types. Their enclosed vanes reduce internal recirculation and fluid losses, allowing pumps to deliver maximum flow with minimal energy input.
Excellent Performance in Clean Systems
Because they function best with clear liquids, closed impellers are ideal for HVAC, water treatment, and petrochemical applications. Their efficiency remains consistent when handling non-abrasive, sediment-free fluids.
Superior Structural Integrity
The front and back shrouds add significant mechanical strength, making closed impellers resistant to warping or deformation in high-pressure or high-speed systems.
Longer Service Life
Due to reduced wear and minimal fluid turbulence, closed impellers experience less mechanical stress, resulting in longer operational life and fewer maintenance interventions.
Precise Flow Control
Tight clearances allow for more accurate flow rate regulation, especially useful in systems where exact pressure and volume parameters are crucial.
Lower Operational Costs
Although initial manufacturing and maintenance may be more costly, their high efficiency and reliability often translate into lower total cost of ownership over the pump’s lifespan.
Manufacturing Closed Impellers
The production of closed impellers demands precision engineering and rigorous quality control. Their enclosed design, high-efficiency performance, and tolerance for high-speed, high-pressure systems require advanced materials and complex machining processes. Here’s how manufacturers create closed impellers built for reliability and efficiency.
Material Selection
Closed impellers are commonly made from stainless steel, bronze, duplex alloys, or engineered composites—chosen based on the fluid’s temperature, corrosiveness, and pressure conditions. Stainless steel is preferred for durability and corrosion resistance in clean, aggressive environments.
Casting Or Forging
Most closed impellers are produced through investment casting for fine detail and surface quality. For higher strength applications, forging is used to enhance grain structure and mechanical properties. The closed geometry requires precise mold design to ensure dimensional accuracy.
Machining & CNC Finishing
After casting, the impeller undergoes CNC machining to define critical dimensions like vane thickness, shroud clearance, and shaft mounting holes. The tight tolerances of closed impellers demand multi-axis machines and high-speed tools to prevent distortion and ensure balance.
Vane Channel Shaping
Special attention is paid to the shape and smoothness of internal flow channels between the shrouds. Smooth transitions reduce turbulence, improve hydraulic performance, and prevent cavitation. EDM (electrical discharge machining) may be used in complex geometries.
Dynamic Balancing
Because closed impellers operate at high RPMs, they must be dynamically balanced. Imbalance can cause vibration and premature wear. Manufacturers use precision balance machines and make micro-adjustments to ensure perfect symmetry.
Heat Treatment & Surface Enhancement
Heat treatment processes like annealing or quenching and tempering may be applied to strengthen the metal. In some cases, surfaces are polished or coated (e.g., with ceramic or polymer layers) to reduce friction and improve wear resistance.
Inspection & Quality Testing
Each closed impeller is subject to dimensional inspection, material analysis, and hydraulic performance testing. This ensures the impeller meets strict industry standards before being approved for installation in pumps.
Applications Of Closed Impellers Across Industries
Closed impellers are widely utilized in industries demanding high efficiency, precision, and reliability with clean or lightly contaminated fluids. Their robust design and superior hydraulic performance make them essential components in systems requiring stable pressure, low maintenance, and long service life.
Water Treatment And Supply
Closed impellers are ideal for municipal and industrial water treatment plants, offering efficient pumping of clean water, filtration systems, and distribution networks with minimal energy consumption and reliable performance.
HVAC Systems
Heating, ventilation, and air conditioning systems rely on closed impellers in their centrifugal pumps to maintain consistent flow rates, high efficiency, and quiet operation, critical for commercial and residential climate control.
Petrochemical And Chemical Processing
In these sectors, closed impellers handle clean, corrosive liquids with high precision. Their durability and resistance to chemical attack ensure safe, continuous operation in pipelines, reactors, and cooling systems.
Power Generation
Closed impellers are used in power plants for boiler feedwater pumps, condensate pumps, and cooling water circulation. Their high efficiency contributes to overall plant performance and energy savings.
Food And Beverage Industry
When pumping clear liquids such as water, juices, or oils, closed impellers help maintain hygiene standards and efficient processing, minimizing product contamination and operational downtime.
Pharmaceutical Manufacturing
Precision and cleanliness are paramount here. Closed impellers provide consistent flow rates in pharmaceutical fluid transfer and processing systems, supporting strict regulatory requirements.
Marine Applications
In marine environments, closed impellers are used in ballast, cooling, and bilge systems where reliable, efficient pumping of relatively clean water is essential to vessel safety and performance.
Challenges And Solutions In Closed Impeller Design
Are closed impellers without challenges? Their complex design presents unique hurdles that engineers must tackle. Interested in how these are overcome? This section examines the limitations and innovative solutions that keep closed impellers at the forefront of fluid technology.
Closed impellers are prone to clogging with solids, limiting their use to clean fluids. Their complex geometry increases manufacturing costs and precision requirements. Engineers address clogging by optimizing flow paths using CFD simulations, ensuring smooth fluid movement. Advanced manufacturing, like additive manufacturing, reduces costs while maintaining accuracy. Wear-resistant coatings combat erosion in high-speed applications. These solutions enhance efficiency and longevity, making closed impellers viable for aerospace, energy, and industrial systems.
Clogging Risks And Mitigation
Clogging occurs if impurities enter the fluid, disrupting flow. CFD simulations optimize blade spacing to minimize blockages. Regular maintenance, including fluid filtration systems, prevents debris buildup, ensuring consistent performance in clean-fluid applications like HVAC or turbines.
Manufacturing Complexity
The shrouded design requires precise alignment of blades and shrouds, increasing production costs. Five-axis machining and additive manufacturing streamline assembly, reducing errors and costs while achieving complex geometries for high-performance impellers.
Material Wear In High-Speed Systems
High-speed rotation can erode blades, especially in abrasive environments. Wear-resistant coatings, like titanium nitride, and hardened alloys extend lifespan, ensuring durability in demanding applications like jet engines or industrial compressors.
Comparing Closed Impellers To Open And Semi-Open Designs
How do closed impellers measure up against other impeller types? Each design serves distinct purposes. Ready to understand their differences? This section compares closed impellers with open and semi-open variants to highlight their unique strengths.
Closed Impellers
- Feature shrouds on both sides of the blades, fully enclosing the vanes.
- Offer higher hydraulic efficiency due to better flow control and reduced leakage.
- Provide superior mechanical strength and rigidity, making them well-suited for high-pressure and high-speed applications.
- Require cleaner fluids, as debris or solids can get trapped between the shrouds and cause damage.
- Typically more complex and costly to manufacture and maintain.
Open Impellers:
- Have no shrouds, with blades fully exposed.
- Better handle fluids with solids, fibers, or slurry, reducing clogging issues.
- Easier to inspect, clean, and maintain but generally less efficient hydraulically than closed designs.
- More susceptible to mechanical wear and damage due to lack of protection around blades.
Semi-Open Impellers
- Have one shroud (usually on the back side) with blades exposed on the other side.
- Offer a balance between handling solids like open impellers and maintaining better efficiency and strength similar to closed impellers.
- Commonly used in applications with moderate solids content or where some debris tolerance is needed without sacrificing too much efficiency.
Conclusion
Closed impellers are engineering powerhouses, delivering efficiency, precision, and reliability in high-performance fluid systems. From aerospace turbines to industrial pumps, their shrouded design ensures optimal fluid dynamics for clean-fluid applications. With advancements in materials, five-axis machining, and smart technology, closed impellers are evolving to meet the demands of sustainable, high-efficiency industries. Whether you’re an engineer or industry professional, these components offer a glimpse into a future of innovation and performance. Embrace their potential and power your systems with closed impellers today.
