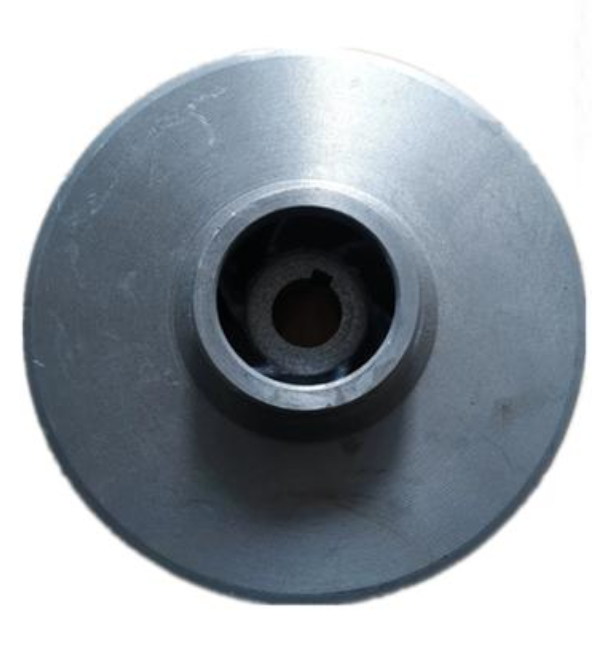

Cast iron impellers are vital components in centrifugal pumps, fans, and other fluid machinery, valued for their durability, cost-effectiveness, and ability to handle demanding applications in industries such as water treatment, agriculture, and industrial manufacturing. However, the casting process for cast iron impellers is inherently challenging due to their complex geometries, thin-walled blade structures, and the material’s metallurgical properties. Issues like blade deformation, white cast formation, cold shuts, surface roughness, and porosity significantly reduce yield rates, driving up production costs.
Why Is Cast Iron Impeller Casting So Complex?
Cast iron impellers, with their intricate blade designs and narrow flow channels, are essential for ensuring efficient fluid dynamics in centrifugal pumps and other machinery. Their robust mechanical properties and affordability make them a preferred choice for applications in water treatment, irrigation, and industrial systems. However, casting cast iron impellers presents significant challenges due to the material’s high carbon content, susceptibility to metallurgical defects, and the complex geometries required for optimal performance. Common issues include blade deformation, white cast formation in thin walls, cold shuts, poor surface finish, and porosity, all of which lower yield rates and increase production costs.
These difficulties are compounded by the need for precise dimensional accuracy and smooth surfaces to meet the performance requirements of fluid machinery. Traditional casting methods, such as resin sand molding, often struggle to address these issues, necessitating innovative process adjustments. This article analyzes the specific challenges encountered in cast iron impeller casting, based on real-world production experiences, and provides practical solutions to improve quality, efficiency, and cost-effectiveness, ensuring high-performance impellers for industrial applications.
What Causes Blade Deformation In Cast Iron Impeller Casting?
Blade deformation is a critical issue in cast iron impeller casting, particularly in the thin, curved blade structures that are prone to stress and uneven cooling. Deformation occurs when the casting process fails to maintain uniform solidification, leading to warping or distortion that compromises the impeller’s hydraulic performance and dimensional accuracy. In the referenced facility’s initial resin sand molding process with horizontal pouring, deformation was a frequent problem due to improper core removal timing. Extracting the resin sand core too early caused mold collapse before solidification, resulting in internal blade shape distortion. Conversely, delayed extraction damaged the mold, exacerbating deformation.
Cast iron’s relatively high shrinkage rate (1-2%) during cooling, combined with its thermal conductivity, intensifies these issues in thin-walled sections, where uneven cooling rates create residual stresses. Deformation not only affects the impeller’s functionality but also increases scrap rates, driving up production costs and failing to meet customer specifications.
Solutions:
- Adopt Covered Sand Cores And Vertical Pouring: Transitioning to covered sand (coated sand) cores and vertical pouring, as implemented by the facility, reduces deformation by improving mold stability and ensuring uniform metal flow. Vertical pouring minimizes turbulence, allowing molten cast iron to fill blade sections evenly, reducing stress-induced warping.
- Segmented Core Design: Using split or segmented covered sand cores enables precise control over extraction timing, preventing mold collapse or damage and ensuring consistent blade geometry during solidification.
- Controlled Cooling Systems: Implementing cooling jackets or chills around thin blade areas promotes uniform solidification, minimizing thermal stresses and deformation. Preheating molds to 200-300°C further reduces thermal gradients.
- Post-Casting Machining With Five-Axis CNC: For minor deformations, five-axis CNC machining refines blade shapes post-casting, achieving tight tolerances and restoring hydraulic performance without compromising structural integrity.
- Simulation Software: Using casting simulation tools like MagmaSoft or ProCAST to predict shrinkage and stress distribution allows for mold design optimization, reducing deformation risks before production begins.
These strategies significantly mitigate blade deformation, enhancing impeller quality and yield rates for cast iron components.
Why Does White Cast Form In Thin-Walled Impeller Sections?
White cast, a hard and brittle microstructure, is a common defect in cast iron impeller casting, particularly in thin-walled blade sections. This issue arises from rapid cooling rates in thin areas, which promote the formation of cementite (Fe₃C) and suppress graphite formation, resulting in a white, brittle surface layer. White cast reduces the impeller’s ductility, increases the risk of cracking, and complicates post-casting machining, leading to higher scrap rates and production costs. In the referenced facility, white cast was prevalent in thin blade sections due to the high cooling rates of resin sand molds, which lacked sufficient insulation to slow solidification.
White cast not only compromises mechanical properties but also hinders achieving the smooth surfaces required for efficient fluid flow. For cast iron impellers used in water pumps, this defect can lead to premature wear or failure under operational stress, necessitating robust solutions to ensure quality.
Solutions:
- Adjust Melt Composition: Increasing the carbon-to-silicon (C:Si) ratio in the melt (e.g., C: 3.2-3.5%, Si: 2.0-2.5%) promotes graphitization, suppressing cementite formation and reducing white cast. Careful alloying with elements like magnesium or cerium further enhances graphite nucleation.
- Post-Casting Heat Treatment: Annealing at 850-900°C for 2-4 hours transforms brittle cementite into ductile graphite, improving machinability and mechanical properties. This step, as adopted by the facility, effectively mitigates persistent white cast issues.
- Insulated Mold Coatings: Applying refractory coatings (e.g., zircon-based) or using ceramic shells around thin blade areas slows cooling rates, promoting a gray cast microstructure with improved ductility.
- Preheated Molds: Preheating molds to 250-350°C minimizes thermal gradients, reducing rapid cooling and white cast formation in thin sections.
- Inoculation Techniques: Adding inoculants like ferrosilicon during melting enhances graphite formation, counteracting white cast tendencies in thin-walled areas.
These measures eliminate white cast, ensuring robust, high-quality cast iron impellers suitable for demanding applications.
How Do Cold Shuts And Pouring Insufficiency Impact Impeller Quality?
Cold shuts and pouring insufficiency are significant defects in cast iron impeller casting, where molten metal fails to fuse properly or fill the mold completely. Cold shuts occur when two metal streams meet but solidify before bonding, creating weak seams that compromise structural integrity and increase the risk of leakage or failure. Pouring insufficiency, often seen in thin blade tips, results from inadequate metal flow, leaving incomplete sections that render the impeller unusable. In the facility’s initial resin sand process with horizontal pouring, these defects were prevalent due to turbulent flow and premature solidification, exacerbated by the high viscosity of molten cast iron.
These issues drastically reduce yield rates, as defective impellers fail to meet performance or durability requirements, particularly in high-pressure applications like industrial pumps. Cold shuts and pouring insufficiency also necessitate costly rework or scrapping, driving up production expenses.
Solutions:
- Vertical Pouring System: Adopting vertical pouring, as implemented by the facility, ensures smoother, more uniform metal flow, reducing turbulence and improving mold filling. Optimized gating systems direct molten cast iron to thin blade areas first, preventing premature solidification.
- Covered Sand Cores: Covered sand cores provide better thermal stability, maintaining mold integrity during pouring and minimizing cold shuts by ensuring consistent temperatures.
- Increased Pouring Temperature: Raising the pouring temperature by 50-100°C (e.g., to 1350-1400°C) enhances metal fluidity, ensuring complete mold filling and reducing cold shuts and pouring insufficiency.
- Enhanced Gating And Risers: Designing multiple gates and risers improves metal flow and compensates for shrinkage, ensuring thin blade sections are fully filled.
- Vacuum-Assisted Casting: Implementing vacuum or low-pressure casting techniques improves mold filling by removing air pockets, particularly in complex blade geometries.
These solutions enhance mold filling, eliminating cold shuts and pouring insufficiency for higher-quality cast iron impellers.
Why Is Surface Roughness A Concern In Cast Iron Impeller Casting?
Cast iron impellers require smooth surfaces to optimize fluid flow, reduce friction, and enhance pump efficiency, critical for applications in water treatment and industrial systems. However, achieving high surface finish in casting is challenging, particularly with resin sand molds, as experienced by the referenced facility. The inability to apply coatings to internal blade surfaces in resin sand cores resulted in high surface roughness (e.g., Ra 6.3 or higher), degrading hydraulic performance and increasing wear. Rough surfaces also accumulate debris, reducing operational efficiency and lifespan.
The high carbon content and viscosity of molten cast iron further complicate surface quality, as the metal may not fully conform to mold surfaces, leading to irregularities. These issues necessitate robust strategies to achieve smooth, functional surfaces.
Solutions:
- Covered Sand Core Process: Switching to covered sand cores, as adopted by the facility, allows for smoother mold surfaces and enables the application of refractory coatings, significantly improving surface finish to Ra 1.6 or better.
- Refractory Mold Coatings: Applying zircon-based or graphite-based coatings to core surfaces enhances smoothness, reduces metal-mold reactions, and ensures cleaner cast surfaces.
- Five-Axis Machining Post-Casting: For critical flow channels, five-axis CNC machining refines surfaces post-casting, achieving Ra 0.8 or better for optimal fluid dynamics and efficiency.
- Post-Casting Polishing: Abrasive blasting or chemical polishing removes surface irregularities, delivering the required smoothness for high-performance impellers.
- Mold Surface Preparation: Sandblasting or polishing mold surfaces before casting ensures finer surface textures, reducing roughness in the final product.
These approaches deliver high-quality surface finishes, enhancing impeller performance and durability.
How Does Porosity Affect Cast Iron Impeller Integrity?
Porosity, including gas holes and pinholes, is a significant defect in cast iron impeller casting, often occurring in blade sections due to excessive gas generation during pouring. In the facility’s initial resin sand process, inconsistent resin and hardener ratios in core production led to high gas evolution, causing porosity and pinholes that weakened impeller structures. These defects reduce mechanical strength, increase the risk of leakage, and compromise durability, particularly in high-pressure or abrasive environments like industrial pumps.
Porosity also affects surface quality, creating voids that require additional finishing or lead to scrap, further increasing costs. The high gas content in resin sand cores, combined with cast iron’s sensitivity to gas entrapment, makes porosity a persistent challenge.
Solutions:
- Covered Sand Core Process: Adopting covered sand cores, as implemented by the facility, reduces gas generation by using pre-coated sand with controlled resin content, minimizing porosity and pinholes.
- Precise Resin Control: Standardizing resin and hardener ratios through automated mixing systems ensures consistent core quality, reducing gas evolution during pouring.
- Enhanced Mold Ventilation: Optimizing venting and riser designs improves gas escape, preventing trapped gases from forming pores in blade sections.
- Vacuum-Assisted Casting: Implementing vacuum or low-pressure casting techniques removes gases from the mold cavity, significantly reducing porosity in critical areas.
- Degassing Treatments: Treating the melt with argon or nitrogen degassing before pouring removes dissolved gases, further minimizing porosity risks.
These measures eliminate porosity, ensuring robust, high-quality cast iron impellers.
How Can Process Optimization Enhance Cast Iron Impeller Casting Efficiency?
Effective process control is essential to overcome the challenges of cast iron impeller casting, ensuring consistent quality, reduced costs, and improved efficiency in high-volume production environments. The facility’s transition from resin sand to covered sand cores and vertical pouring exemplifies the impact of process optimization on yield and quality, addressing defects like deformation, white cast, and porosity.
Solutions:
- Advanced Mold Design: Using CAD and simulation software (e.g., MagmaSoft, ProCAST) to optimize gating, venting, and riser systems ensures uniform metal flow and minimizes defects like cold shuts and porosity. Simulations predict shrinkage and stress distribution, enabling pre-production adjustments.
- Five-Axis Machining Integration: Post-casting five-axis CNC machining refines complex geometries and surfaces, correcting minor defects and achieving tight tolerances for high-performance impellers. This is particularly effective for flow channel finishing.
- Automated Core Production: Automated systems for covered sand core manufacturing ensure precise resin and hardener ratios, reducing gas-related defects and improving consistency across batches.
- Real-Time Process Monitoring: Sensors monitor pouring temperature, mold stability, and gas pressure, enabling immediate adjustments to prevent defects like deformation or porosity. Data-driven insights optimize process parameters.
- Quality Inspection Technologies: Coordinate measuring machines (CMM), X-ray inspection, and ultrasonic testing verify impeller dimensions and internal integrity, ensuring compliance with design specifications and detecting hidden defects.
- Lean Manufacturing Principles: Implementing just-in-time material handling, waste reduction, and standardized workflows optimizes resource use, minimizing production delays and costs.
- Training And Standardization: Training foundry workers on precise core-making and pouring techniques ensures consistent execution, while standardized procedures reduce variability in production outcomes.
These optimization techniques ensure high-quality impeller production while maintaining cost-effectiveness and scalability, critical for industries like water treatment and industrial manufacturing.
Conclusion
Casting cast iron impellers is a complex process, challenged by blade deformation, white cast formation, cold shuts, surface roughness, and porosity, driven by the material’s metallurgical properties and the intricate geometries of impeller designs. These issues, as experienced by the referenced facility, significantly reduce yield rates and increase production costs. Transitioning to covered sand cores, vertical pouring, and optimized melt compositions (higher C:Si ratios) effectively addresses these defects, improving surface finish and structural integrity.
Five-axis CNC machining further refines post-casting surfaces and geometries, ensuring precision for high-performance applications. Complementary strategies, including insulated molds, heat treatment, precise resin control, vacuum-assisted casting, and advanced process monitoring, enhance quality and efficiency. By integrating these innovative solutions, manufacturers can produce high-quality cast iron impellers that meet the stringent demands of water treatment, agriculture, and industrial applications, delivering durability, efficiency, and reliability in critical fluid machinery systems.
