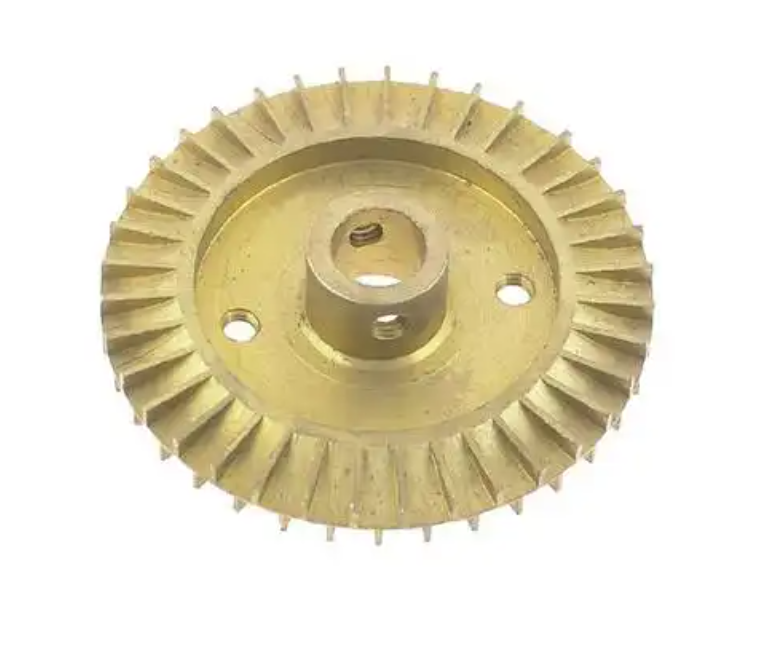

Brass alloy impellers, valued for their excellent thermal conductivity, corrosion resistance, and mechanical strength, are essential components in fluid machinery such as water pumps, marine propellers, chemical processing equipment, and industrial fluid systems. However, the CNC machining of brass alloy impellers presents significant challenges due to the material’s unique properties—softness, ductility, and stickiness—combined with the complex geometries of impellers, including twisted blades, narrow flow channels, and thin-walled structures. Common issues include work hardening, tool wear, poor surface finish, vibration, thermal management, oxidation, and dimensional inaccuracies, which reduce efficiency, increase costs, and compromise quality. Drawing on insights from brass impeller defect analysis and CNC machining challenges, this 3000-word article explores these difficulties in depth, detailing machining processes, influencing factors, and practical solutions, with a focus on the transformative role of five-axis machining technology. Optimized for SEO, it features nine reader-focused H2 headings, natural keyword integration, and a structured format to provide actionable insights for engineers, manufacturers, and researchers, ensuring search engine visibility and user engagement.
Why Is Brass Alloy Impeller CNC Machining So Challenging?
Brass alloy impellers, typically made from alloys like C36000 or C46400, are critical for efficient fluid dynamics in applications ranging from marine propulsion to industrial pumps. Their corrosion resistance and thermal conductivity make them ideal for harsh environments, but machining these components is fraught with difficulties. Brass’s softness (HB 80-100) and high ductility facilitate cutting, but they also lead to work hardening, tool sticking, and surface quality issues. The intricate geometries of impellers—twisted blades, narrow flow channels, and thin-walled structures—demand high precision, often at the micrometer level, which is challenging with traditional three-axis CNC machines. Additionally, defects like poor surface finish, dimensional inaccuracies, vibrations, and post-machining oxidation mirror issues seen in brass casting, such as porosity or inclusions, further complicating production.
Five-axis CNC machining, with its multi-axis linkage, offers a breakthrough by enabling precise navigation of complex geometries. This article delves into the machining challenges, processes, and influencing factors, proposing solutions through advanced tooling, optimized parameters, and cutting-edge technologies to meet the rigorous demands of marine, chemical, and industrial applications.
How Does Work Hardening Impact Brass Impeller Machining?
Brass’s softness and ductility make it prone to work hardening, where excessive cutting forces or improper parameters cause surface hardness to increase, hindering subsequent cuts. This phenomenon, driven by plastic deformation, accelerates tool wear, induces surface defects, and risks deforming thin-walled impeller blades, compromising flow channel accuracy and fluid efficiency. In marine pumps, such deformations can lead to turbulence, reduced efficiency, or premature wear, similar to casting defects like shrinkage cavities caused by improper cooling.
Solutions:
- Optimized Cutting Parameters: Use low feed rates (0.05-0.15 mm/rev) and shallow depths of cut (0.1-0.5 mm) to minimize plastic deformation, reducing work hardening. Cutting speeds of 80-150 m/min balance efficiency and surface quality.
- Five-Axis Machining: Five-axis machines adjust tool angles dynamically, optimizing cutting paths to reduce stress on thin-walled blades, preventing hardening.
- Sharp, Coated Tools: Employ sharp carbide tools with TiN or AlTiN coatings to reduce friction, minimizing work hardening and ensuring clean cuts.
- Real-Time Monitoring: Cutting force sensors detect hardening signs, enabling parameter adjustments to protect workpieces and tools.
- Pre-Machining Annealing: Anneal brass blanks at 400-500°C to restore ductility, mitigating hardening risks before machining.
- Incremental Cutting: Use multi-pass strategies with light cuts to distribute stress evenly, preserving blade integrity.
These measures ensure stable machining, maintaining impeller geometry and performance.
How Does Tool Wear And Sticking Affect Machining Efficiency?
Brass’s ductility and stickiness cause tool wear and chip adhesion, forming built-up edges (BUE) on tools, akin to inclusions in brass casting. BUE degrades surface finish (targeting Ra 0.8-1.6), increases cutting forces, and leads to dimensional inaccuracies in flow channels. Rapid tool wear, driven by abrasive and adhesive mechanisms, necessitates frequent replacements, raising costs and extending production times, particularly for complex impeller geometries.
Solutions:
- Carbide And HSS Tools: Use carbide or high-speed steel (HSS) tools with TiN, AlTiN, or DLC coatings to reduce friction and adhesion, extending tool life. Polycrystalline diamond (PCD) tools are ideal for finishing, ensuring high surface quality.
- Five-Axis Path Optimization: CAM software (e.g., PowerMill, NX) generates smooth tool paths, minimizing tool stress and BUE formation, enhancing efficiency.
- Optimized Tool Geometry: Tools with large rake angles (10-15°) and polished cutting edges improve chip flow, reducing sticking.
- Tool Condition Monitoring: Real-time monitoring of cutting forces and vibrations predicts wear, optimizing replacement schedules and minimizing downtime.
- Minimum Quantity Lubrication (MQL): MQL reduces friction and heat, mitigating adhesion and wear, especially in finish machining.
- Tool Maintenance: Regular regrinding and recoating extend tool life, reducing costs.
These strategies enhance tool durability, ensuring consistent surface quality and precision.
How Does Cutting Heat Influence Surface Quality?
Despite brass’s high thermal conductivity (approximately 150 W/m·K), CNC machining generates significant cutting heat, particularly at high speeds or deep cuts. Excessive heat causes surface burns, roughness (Ra >1.6), and thermal deformation in thin-walled blades, reducing flow channel efficiency. This mirrors brass casting issues, where high temperatures lead to porosity. In chemical pumps, poor surface finish increases friction, accelerating corrosion and wear.
Solutions:
- High-Pressure Coolants: Use 50-70 bar water-based emulsions or synthetic oils, delivered to the cutting zone, to dissipate heat, improving surface finish and tool life.
- Moderate Cutting Speeds: Set speeds at 80-150 m/min with feed rates of 0.1-0.2 mm/rev to minimize heat buildup, preventing burns and deformation.
- Five-Axis Thermal Control: Continuous tool paths reduce dwell time in hot zones, lowering thermal impact on blades.
- Dry or MQL Machining: For finishing, explore dry machining or MQL to reduce coolant use while controlling heat, enhancing sustainability.
- Thermal Simulation: Use machining software to predict heat distribution, optimizing parameters to prevent surface defects.
- Cryogenic Cooling: In high-heat scenarios, cryogenic cooling (e.g., CO₂) maintains low temperatures, preserving surface integrity.
These approaches ensure smooth, defect-free surfaces for optimal impeller functionality.
How Does Vibration Impact Machining Accuracy?
Vibration is a major challenge in brass impeller machining, particularly for thin-walled blades and narrow flow channels, where it causes surface waviness, dimensional errors, and reduced flow accuracy. Vibrations stem from high cutting forces, improper parameters, insufficient machine rigidity, or unbalanced tools, akin to brass casting defects caused by poor mold design or uneven cooling. In marine applications, precision errors lead to fluid turbulence, lowering pump efficiency and increasing energy consumption.
Vibration is especially problematic in high-speed machining or when machining delicate features, where even minor chatter can compromise micrometer-level tolerances required for flow channels.
Solutions:
- High-Rigidity Five-Axis Machines: Use machining centers with high-torque spindles (>500 Nm) and stable beds to absorb vibrations, ensuring stability for thin-walled structures.
- Optimized Parameters: Low feed rates (0.05-0.1 mm/rev) and shallow depths of cut (0.1-0.3 mm) reduce cutting forces, minimizing vibrations.
- Damping Fixtures: Design high-rigidity fixtures with damping materials (e.g., polymer inserts) to distribute clamping forces evenly, preventing blade deformation.
- Dynamic Balancing: Calibrate tools and spindles for dynamic balance, reducing vibrations at high speeds (up to 20,000 RPM).
- Five-Axis Path Smoothing: CAM-generated smooth tool paths avoid sudden force changes, protecting flow channel precision.
- Vibration Monitoring: Sensors track vibrations in real-time, enabling parameter adjustments to maintain accuracy.
- Machine Calibration: Regular calibration of CNC machines ensures alignment and rigidity, reducing vibration risks.
These measures ensure dimensional accuracy and flow channel integrity, critical for high-performance impellers.
What Are The Key Processes In Brass Alloy Impeller CNC Machining?
Machining brass alloy impellers requires a systematic process to address material properties and geometric complexity, ensuring precision and quality. Below is a detailed workflow tailored for high-performance impellers:
Material Preparation
Select high-quality brass alloy blanks (e.g., C36000 or C46400), using ultrasonic testing or X-ray inspection to detect internal defects like inclusions or voids, ensuring material integrity.
Rough Machining
Use carbide end mills on a five-axis CNC machine to remove bulk material, shaping the impeller’s basic geometry. Parameters: cutting speed 100-150 m/min, feed rate 0.1-0.2 mm/rev, depth of cut 1-2 mm. High-pressure water-based coolant (50-70 bar) controls heat and chip adhesion.
Semi-Finish Machining
Employ TiN-coated carbide tools to refine blade contours and flow channels, improving surface accuracy. Parameters: depths of cut 0.5-1 mm, speeds 80-120 m/min, feed rates 0.08-0.15 mm/rev.
Finish Machining
Use PCD or polished carbide tools for high-precision milling, achieving Ra 0.8-1.6 surface finish. Parameters: depths of cut 0.1-0.3 mm, speeds 60-100 m/min, feed rates 0.05-0.1 mm/rev. MQL or dry machining minimizes coolant residue.
Drilling And Tapping
Use HSS or carbide drills and taps for mounting or threaded holes, with low speeds (20-50 m/min) and high-pressure coolant to prevent chip adhesion and ensure thread accuracy.
Surface Treatment
Apply chemical polishing, mechanical buffing, or electrochemical polishing to achieve Ra 0.4-0.8 finish, enhancing aesthetics and corrosion resistance. Optional nickel plating or clear lacquers prevent oxidation.
Quality Inspection
Utilize coordinate measuring machines (CMM), laser scanners, and surface roughness testers to validate dimensions, geometric tolerances (e.g., ±0.01 mm), and finish, ensuring compliance with design specifications. X-ray or dye penetrant testing detects subsurface defects.
Five-Axis Integration
Perform all stages on five-axis machines to minimize setups, using CAM software to optimize tool paths for complex flow channels and thin-walled blades, reducing cycle times by up to 30%.
Post-Machining Storage
Package finished impellers in moisture-proof materials with desiccants, storing in controlled environments (20-25°C, <60% humidity) to prevent oxidation and preserve appearance.
This process ensures efficiency, precision, and quality, meeting the demands of marine and industrial applications.
How Do Surface Treatment And Oxidation Affect Finished Impeller Quality?
Brass impellers require exceptional surface finish (Ra 0.4-0.8) and aesthetic appeal, but their susceptibility to oxidation poses a significant challenge. Exposure to air, moisture, or chemicals causes tarnishing or corrosion, forming oxide layers that degrade appearance and corrosion resistance, similar to casting inclusions from impurities. In chemical or marine environments, oxidation accelerates wear, reducing impeller lifespan. Achieving consistent surface texture and dimensional accuracy during finishing is also difficult due to brass’s softness, which can lead to over-polishing or dimensional drift.
Solutions:
- Polishing Techniques: Use chemical polishing (acid-based solutions), mechanical buffing (with fine abrasives), or electrochemical polishing to achieve mirror-like finishes, enhancing aesthetics and corrosion resistance.
- Protective Coatings: Apply clear lacquers, nickel plating, or chromium coatings post-machining to create a barrier against oxidation, maintaining long-term performance and shine.
- Five-Axis Finishing: Five-axis machines ensure uniform surface finish across complex flow channels, minimizing manual post-processing and preserving tolerances.
- Proper Storage: Store finished impellers in moisture-proof packaging with desiccants, avoiding chemical exposure to preserve shine and prevent tarnishing.
- High-Precision Inspection: CMM, laser scanners, and surface roughness testers verify finish quality and dimensional accuracy, ensuring compliance with specifications.
- Environmental Control: Maintain clean, humidity-controlled workshops (relative humidity <60%) during machining and storage to minimize oxidation risks.
- Surface Passivation: Apply passivation treatments (e.g., citric acid cleaning) to remove surface contaminants, enhancing corrosion resistance.
These strategies ensure durable, visually appealing impellers with robust performance in harsh environments.
What Factors Influence Brass Alloy Impeller CNC Machining?
The quality and efficiency of brass impeller machining depend on several interconnected factors, each requiring meticulous management to achieve optimal results:
Material Properties: Brass’s softness, ductility, and stickiness cause work hardening, chip adhesion, and surface quality issues. Solution: Use sharp, coated tools (TiN/AlTiN) and optimized parameters to mitigate these effects.
Tool Performance: Tool material, coatings, and geometry impact wear, adhesion, and finish. Selection: TiN/AlTiN-coated carbide for roughing, PCD for finishing, with polished edges to reduce sticking.
Machine Rigidity: Low-rigidity machines cause vibrations, affecting precision and surface finish. Solution: High-rigidity five-axis machines with stable spindles (>500 Nm torque) and damping fixtures.
Cutting Parameters: Improper speeds, feeds, or depths increase hardening, heat, or vibrations. Optimization: Speeds of 80-150 m/min, feeds of 0.05-0.2 mm/rev, depths of 0.1-2 mm, tailored to geometry and stage.
Cooling System: Inadequate cooling leads to burns, sticking, and poor finish. Improvement: High-pressure (50-70 bar) coolants or MQL for effective heat dissipation and chip evacuation.
Workpiece Geometry: Thin-walled blades and complex flow channels are prone to deformation and vibrations. Support: Five-axis machining with smooth tool paths and damping fixtures stabilizes machining.
Environmental Factors: Humidity, dust, or temperature fluctuations affect oxidation and precision. Control: Clean, temperature-controlled workshops (20-25°C, <60% humidity).
Operator Expertise: Skill levels impact parameter settings, tool selection, and quality control. Training: Enhance proficiency in CAM programming, CNC operation, and defect analysis.
Machine Maintenance: Wear in spindles or guides reduces accuracy. Solution: Regular calibration and preventive maintenance ensure consistent performance.
Holistic management of these factors ensures high-quality machining outcomes, minimizing defects and costs.
How Can Advanced Technologies Enhance Machining Efficiency And Quality?
Brass alloy impeller machining benefits from advanced technologies to overcome the limitations of traditional three-axis methods, boosting efficiency, precision, and sustainability.
Solutions:
- Five-Axis Machining: Multi-axis linkage reduces setups, machines non-developable surfaces, and ensures flow channel precision, improving cycle times by 20-30%. CAM software optimizes tool paths for complex geometries.
- Smart Manufacturing: IoT and big data analytics monitor cutting forces, vibrations, and temperatures, optimizing parameters in real-time and predicting maintenance to minimize downtime.
- Adaptive Machining: Cutting force sensors and adaptive control systems dynamically adjust speeds and feeds, enhancing stability and surface quality, particularly for thin-walled blades.
- Green Machining: MQL and dry machining reduce coolant use, lowering environmental impact while controlling heat and adhesion, suitable for finishing operations.
- Laser-Assisted Machining: Laser preheating softens brass locally, reducing cutting forces and tool wear, ideal for intricate flow channel features.
- Additive Manufacturing Integration: 3D-printed brass blanks with near-net shapes reduce roughing material, paired with five-axis machining for efficient finishing of complex geometries.
- Ultrasonic-Assisted Machining: Ultrasonic tool vibrations (20-40 kHz) reduce cutting forces and chip adhesion, improving surface finish for micro-structures and narrow channels.
- Digital Twin Technology: Virtual models simulate machining processes, predicting defects, vibrations, and heat, enabling pre-emptive optimization of parameters and tool paths.
These technologies ensure high-performance impellers with cost-effective, sustainable production, meeting the demands of modern industries.
Conclusion
CNC machining of brass alloy impellers is challenged by work hardening, tool wear, chip adhesion, cutting heat, vibrations, poor surface finish, and oxidation, compounded by the complex geometries of twisted blades and narrow flow channels. These issues, akin to brass casting defects like porosity or inclusions, demand advanced solutions to achieve precision and efficiency. Five-axis machining, with its multi-axis linkage and optimized tool paths, addresses thin-walled structures and intricate flow channels with micrometer-level accuracy.
Carbide and PCD tools with TiN/AlTiN coatings, high-pressure coolants, and adaptive parameters mitigate wear, heat, and adhesion, achieving Ra 0.8-1.6 surface finish. A structured process—from material preparation to finishing—supported by polishing, protective coatings, and proper storage, ensures aesthetics and corrosion resistance. Smart manufacturing, green machining, laser-assisted techniques, and additive integration enhance productivity and sustainability. By managing material properties, machine rigidity, environmental factors, and operator expertise, manufacturers can produce high-quality brass alloy impellers for marine, chemical, and industrial applications, meeting stringent performance and durability requirements.
