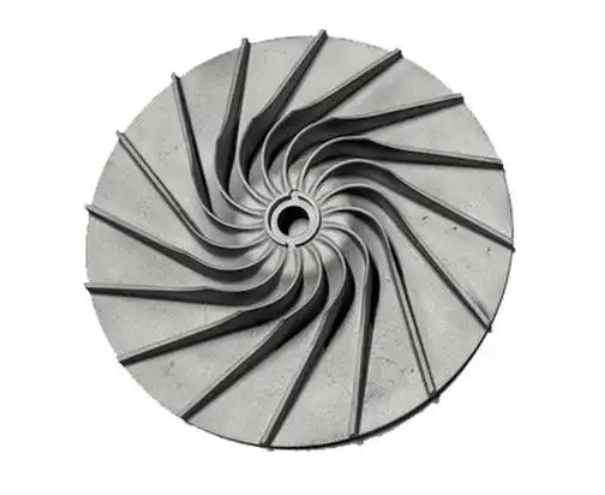

Aluminum alloy impellers are vital components in fluid machinery, such as aerospace turbines, water pumps, and automotive turbochargers, valued for their lightweight nature, corrosion resistance, and excellent machinability. However, machining these impellers is a complex task due to the material’s unique properties and the intricate geometries required for optimal performance. Challenges like tool wear, plastic deformation, surface roughness, burr formation, and thermal management issues pose significant hurdles, particularly in high-precision industries.
Why Is Aluminum Alloy Impeller Machining So Complex?
Aluminum alloy impellers, with their lightweight construction and corrosion-resistant properties, are critical for applications requiring high efficiency and durability, such as aerospace, automotive, and industrial pumps. Their complex geometries—featuring twisted blades, narrow flow channels, and thin-walled structures—demand exceptional precision to ensure hydraulic performance and structural integrity. However, machining aluminum alloys presents unique challenges due to their low elastic modulus, high ductility, and abrasive tendencies. Issues like tool wear, plastic deformation, surface roughness, and burr formation complicate the process, while stringent tolerances (often in the micrometer range) add further difficulty. Five-axis machining, with its ability to handle intricate shapes and multi-angle cuts, has emerged as a transformative solution, enabling manufacturers to overcome these obstacles and meet the exacting standards of modern industries.
The machining process must balance efficiency, cost, and quality, particularly for high-volume production in automotive or aerospace applications. Aluminum’s tendency to form built-up edges and its low thermal conductivity exacerbate tool wear and heat buildup, affecting surface quality and dimensional accuracy. This section sets the stage for a detailed exploration of these challenges and the innovative strategies, including five-axis machining, advanced tooling, and process optimization, that address them effectively.
How Does Tool Wear Affect Aluminum Alloy Impeller Machining?
Despite being softer than steel, aluminum alloys are surprisingly abrasive, causing rapid tool wear during impeller machining. The material’s tendency to form a built-up edge—where aluminum adheres to the tool—further accelerates wear, leading to frequent tool changes, increased costs, and compromised surface quality. For impellers, which often feature complex blade geometries and narrow flow channels, tool wear is particularly problematic, as it can result in dimensional inaccuracies and reduced hydraulic efficiency.
Solutions:
- Polycrystalline Diamond (PCD) Tools: PCD tools, with their superior hardness and low friction, are ideal for precision machining of impeller blades. They resist wear and maintain sharpness, ensuring consistent surface quality and extended tool life.
- Coated Carbide Tools: For roughing operations, carbide tools with coatings like TiN, TiAlN, or AlCrN reduce wear by enhancing heat resistance and minimizing material adhesion. These are cost-effective for initial material removal.
- Five-Axis Machining Optimization: Five-axis machines optimize tool paths, reducing cutting forces and heat generation by enabling precise, multi-angle cuts. This minimizes tool wear, particularly in intricate impeller geometries, and enhances overall efficiency.
- Tool Maintenance Strategies: Regular tool inspection and sharpening schedules prevent premature failure, while advanced tool management systems track wear in real-time, optimizing replacement intervals.
By adopting these solutions, manufacturers can mitigate tool wear, lower production costs, and maintain the high precision required for aluminum alloy impellers.
How Does Plastic Deformation Impact Impeller Machining Quality?
Aluminum alloys have a low elastic modulus, making them prone to plastic deformation during machining, especially in the thin-walled blade structures of impellers. This deformation leads to dimensional inaccuracies, surface defects, and challenges in meeting tight tolerances, critical for applications like aerospace turbines or automotive turbochargers. The material’s ductility exacerbates the issue, as it tends to stretch or bend under cutting forces, particularly in high-speed machining.
Solutions:
- Optimized Cutting Parameters: Reducing cutting speeds, feed rates, and depths of cut minimizes stress on thin impeller sections, preventing deformation while maintaining productivity.
- Five-Axis Machining Precision: Five-axis systems provide dynamic tool angle adjustments, reducing vibration and cutting forces. This ensures stable machining of complex impeller geometries, preserving dimensional accuracy.
- High-Rigidity Fixtures: Robust, custom-designed fixtures stabilize the workpiece, preventing movement or flexing during machining, especially for thin-walled or delicate impeller components.
- Adaptive Machining Strategies: Real-time adaptive control systems adjust parameters based on sensor feedback, compensating for deformation tendencies and ensuring consistent quality.
These strategies collectively enhance machining stability, ensuring impellers meet stringent dimensional and performance requirements.
Why Is Surface Roughness A Persistent Issue In Impeller Machining?
Aluminum alloy impellers require exceptionally smooth surfaces (e.g., Ra 0.1 or better) to optimize fluid flow, reduce turbulence, and enhance pump or turbine efficiency. However, the material’s low elastic modulus and tendency to form built-up edges result in surface roughness, particularly in intricate flow channels and curved blade surfaces. Heat buildup and material tearing further degrade surface quality, posing challenges for high-precision applications.
Solutions:
- Sharp PCD Tools: Maintaining sharp PCD tools is critical to minimize material tearing and achieve mirror-like finishes on impeller flow channels. Regular tool sharpening ensures consistent performance.
- High-Pressure Coolant Systems: High-pressure, water-based coolants reduce heat buildup, preventing thermal expansion and surface defects. Effective chip evacuation also minimizes scratches caused by re-cutting chips.
- Five-Axis Machining for Surface Finish: Five-axis machines enable continuous, smooth cuts along curved impeller surfaces, reducing tool marks and improving flow channel quality. Optimized tool paths eliminate the need for extensive post-processing.
- Polishing Techniques: For ultra-smooth surfaces, post-machining polishing with abrasive compounds or chemical treatments can achieve the required roughness levels, particularly for aerospace impellers.
These approaches ensure high-quality surface finishes, enhancing impeller performance and longevity.
How Do Burrs In Threaded Holes Affect Impeller Performance?
Threaded holes in aluminum alloy impellers, used for mounting or hydraulic connections, are prone to burr formation due to the material’s high ductility. Burrs compromise assembly precision, fluid sealing, and cleanliness, particularly in high-performance applications like aerospace or automotive systems. In hydraulic pumps, burrs can contaminate fluid systems, leading to operational inefficiencies or failures.
Solutions:
- Specialized Tool Design: Staggered-tooth or chamfered threading tools reduce burr formation by minimizing material extrusion during cutting. Custom tool geometries ensure clean thread profiles.
- Five-Axis Machining Accuracy: Five-axis systems provide precise tool alignment, reducing inconsistencies in threaded hole diameters and preventing burrs caused by misalignment.
- Deburring Processes: Post-machining deburring using abrasive brushes, tumbling, or chemical cleaning removes residual burrs, ensuring burr-free surfaces that meet stringent cleanliness standards.
- Process Control: Real-time monitoring of cutting forces and tool conditions prevents excessive material displacement, minimizing burr formation during threading operations.
These measures ensure reliable, high-quality threaded connections in impeller assemblies.
How Does Five-Axis Machining Revolutionize Aluminum Impeller Production?
Five-axis machining, with its ability to control three linear axes (X, Y, Z) and two rotational axes, is a game-changer for aluminum alloy impeller manufacturing, addressing the material’s machining challenges and the complexity of impeller geometries:
- Complex Geometry Handling: Five-axis systems navigate twisted blades, narrow flow channels, and non-developable surfaces, avoiding tool interference and ensuring precise machining of intricate impeller designs.
- Reduced Setup Times: Single-setup machining minimizes clamping errors and setup changes, improving efficiency and reducing production time for complex impellers.
- Enhanced Surface Quality: Optimized tool paths produce smoother flow channels, reducing turbulence and enhancing hydraulic performance. Continuous cuts eliminate tool marks, reducing post-processing needs.
- Tool Wear Reduction: Precise tool angle adjustments lower cutting forces and heat generation, extending tool life when machining abrasive aluminum alloys.
- Flexibility For Prototyping: Five-axis machining supports rapid prototyping of new impeller designs, allowing manufacturers to test and refine geometries without extensive retooling.
Advanced CAM software generates interference-free tool paths, while virtual simulations validate processes, ensuring high-quality production. Five-axis machining is particularly effective for closed and semi-open impellers, where precision and surface quality are paramount.
How Can Process Optimization Enhance Aluminum Impeller Machining Efficiency?
Effective process control is essential to overcome the challenges of aluminum alloy impeller machining, ensuring consistent quality, reduced costs, and improved efficiency in high-volume production environments.
Solutions:
- Advanced CAM Programming: CAM software optimizes tool paths for five-axis machining, reducing cycle times, minimizing tool wear, and improving precision for complex impeller geometries.
- Real-Time Monitoring Systems: Sensors track cutting forces, temperatures, and tool conditions, enabling immediate parameter adjustments to prevent defects like deformation or surface roughness.
- Coolant And Lubrication Strategies: High-pressure, water-based coolants manage heat, improve chip evacuation, and reduce built-up edges, enhancing surface quality and tool life. Oil-based lubricants are effective for threading operations.
- Quality Inspection Technologies: Coordinate measuring machines (CMM), laser scanning, and surface profilometers verify impeller dimensions, flow channel geometry, and surface roughness, ensuring compliance with design specifications.
- Automation Integration: Automated tool changers, robotic loading systems, and integrated five-axis machining centers streamline production, reducing manual intervention and boosting throughput.
- Lean Manufacturing Principles: Implementing lean strategies, such as just-in-time tool management and waste reduction, optimizes resource use and minimizes production delays.
These optimization techniques ensure high-quality impeller production while maintaining cost-effectiveness and scalability, critical for industries like aerospace and automotive.
Conclusion
Machining aluminum alloy impellers is a complex endeavor, fraught with challenges like tool wear, plastic deformation, surface roughness, and burr formation, driven by the material’s low elastic modulus, high ductility, and abrasive properties. These issues are particularly pronounced in high-precision applications, such as aerospace turbines and automotive turbochargers, where tight tolerances and smooth surfaces are non-negotiable. Five-axis machining stands out as a transformative solution, enabling precise, multi-angle cuts, reduced setup times, and superior surface finishes for complex impeller geometries.
Complementary strategies, including PCD tools, optimized cutting parameters, high-rigidity fixtures, advanced CAM programming, and robust coolant systems, address specific challenges like tool wear and deformation. Real-time monitoring, quality inspection, and automation further enhance efficiency and consistency. By integrating these innovative solutions, manufacturers can achieve high-quality, cost-effective production of aluminum alloy impellers, meeting the stringent demands of modern industries and driving advancements in fluid machinery performance.
