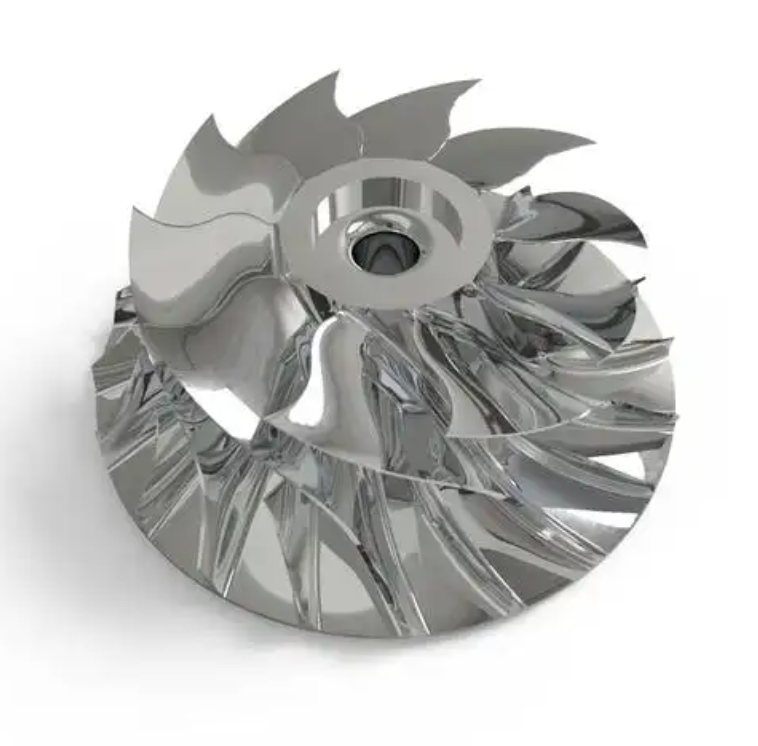

Aluminum alloy impeller is a workhorse in applications like HVAC, industrial fans, and aerospace, which have been singularly admired for low weight, corrosion resistance, high strength, and low noise. In this article, material properties, geometric structure, advanced manufacturing methods—five-axis machining being the most important among them—applications, market prices, merits and demerits, and outlook of aluminum alloy impellers are discussed at length. Whether you’re a manufacturer, an engineer, or simply a hobbyist, this book uncovers the secret function of the impeller in modern technology, offering glimpses into its design nuances, cutting-edge manufacturing methods, and emerging applications. From optimized energy efficiency to powering high-performance machinery, aluminum alloy impellers are driving innovation in industries. Join us as we explore their technical brilliance, industry context, and the revolutionary impact of advanced machining, so that you get a clearer picture of this essential component’s value and potential.
Material Properties Of Aluminum Alloy Impellers
Aluminum alloy impellers are usually constructed of alloys like 7075, 6061, and ZL101, possessing certain mechanical properties. The 7075 alloy with a tensile strength above 570 MPa is most suitable for heavy-load applications like aerospace due to its hardness and wear resistance. The 6061 alloy with superior machinability and corrosion resistance is economical for general industrial applications. ZL101, with its superior casting properties, is the material of choice for intricate impeller geometry. Aluminum alloys, with a density of approximately 2.7 g/cm³, are significantly lighter than steel, reducing equipment weight and increasing energy efficiency.
Their inherent corrosion resistance is further improved through the development of protective oxide coatings, offering extended life in aggressive environments such as in humid or chemically hostile environments. Also, aluminum’s superior thermal conductivity facilitates heat dissipation, which is ideal for HVAC and radiators. These characteristics combined provide improved impeller performance, durability, and efficiency in a wide range of applications.
Structural Design Of Aluminum Alloy Impellers
Aluminum alloy impeller design is dependent upon two basic components: blades and the hub. Blade number, blade shape, and blade angle are modified according to the specific application. Multi-bladed configurations for peak airflow are typical in axial flow fan impellers, while centrifugal fan impellers utilize forward- or backward-curved blades to attain peak pressure. The hub, on the other hand, needs to be strongly strengthened and concentrically accurate so that it can provide a firm attachment to the shaft to ensure stability. Streamlined hub designs minimize air drag, maximizing efficiency.
Variable blade pitches allow impellers to respond to varying operating conditions, enhancing flexibility. Computational Fluid Dynamics (CFD) modeling optimizes airflow pathways, reduces turbulence, and lowers noise. In aerospace environments, precise curvature of blades optimizes aerodynamic performance. Leading-edge designs also incorporate light concepts to minimize inertia, maximizing equipment longevity. This meticulous design procedure enables aluminum alloy impellers to provide high performance, low noise levels, and durability in demanding applications.
Manufacturing Processes Of Aluminum Alloy Impellers
Manufacturing of aluminum alloy impellers involves casting, die-casting, and CNC machining. Low-pressure casting, widely used for ZL101 alloys, ensures defect-free, high-quality impellers by injecting molten metal into molds under controlled pressure. Investment casting, such as lost-wax casting, is used for aerospace impellers that have high demands for precision. Die-casting suits mass production, offering cost-effectiveness with minimal sacrifice in precision.
CNC machining, particularly five-axis technology, achieves unparalleled precision for complex geometry. Surface treatments like anodizing enhance corrosion resistance and appearance. Advanced software like ProCAST simulates casting processes in order to optimize mold design and reduce defects like porosity. Such processes ensure that impellers meet high-performance requirements. For instance, low-pressure casting combined with controlled gating systems diminishes internal defects, while post-processing activities like polishing improve surface finish. The integration of these processes enables manufacturers to produce high-performance impellers for use in a broad spectrum of industrial applications.
Five-Axis Machining In Aluminum Alloy Impeller Production
Five-axis CNC machining has transformed the manufacturing of impellers by enabling the manufacturing of complex geometries with extreme accuracy. Unlike traditional three-axis machines, five-axis machines offer three linear axes (X, Y, Z) and two rotational axes (A, B), which facilitate simultaneous multi-angle machining. This prevents redundant setups, reducing errors and production time. Key benefits are:
High Precision: Offers micron-level accuracy, with surface finish as low as Ra 0.8, enhancing aerodynamic performance.
- Strong Geometries: Comfily handles non-linear blade surfaces, critical for aerospace and high-speed fans.
- Productivity: Reduces machining time to 1-2 hours for complex impellers, enhancing productivity.
- Material Efficiency: Optimized tool paths avoid aluminum waste, cutting costs.
For example, aerospace impellers require fine twist angles in the blades, which five-axis machining has precisely. CAM packages like UG NX generate complicated tool paths, and accurate control of cutting parameters prevents thermal deformation. The technology plays a key role in meeting the stringent requirements of high-end applications.
Applications Of Aluminum Alloy Impellers
Aluminum alloy impellers are integral to numerous sectors due to their lightweight and durable properties:
- Industrial Fans
Used in centrifugal, axial, and high-pressure fans for factory ventilation and dust extraction.
- HVAC Systems
Power radiators and fans in air conditioners, ensuring efficient heat exchange and air circulation.
- Environmental Equipment
Found in air purifiers, fume extractors, and dust collectors, leveraging corrosion resistance.
- Marine And Aerospace
Support ventilation in ships and fan systems in aircraft engines, demanding lightweight and high-strength materials.
- Building And HVAC
Employed in air curtains, exhaust fans, and HVAC units for low-noise, efficient operation.
Their adaptability stems from tailored designs and material properties, meeting diverse operational needs. For instance, in HVAC systems, impellers ensure quiet, efficient airflow, while in aerospace, they withstand extreme conditions, highlighting their critical role across industries.
Advantages And Disadvantages Of Aluminum Alloy Impellers
Weigh the pros and cons to understand why aluminum alloy impellers dominate industrial applications.
Advantages：
Lightweight and Strong: Low density and high strength reduce equipment weight, improving energy efficiency.
Corrosion Resistance: Natural oxide layers ensure durability in humid or corrosive environments.
Low Noise: Optimized blade designs minimize operational noise, enhancing user comfort.
Machinability: Aluminum’s ease of casting and machining supports complex impeller designs.
Disadvantages:
Higher Costs: Premium alloys and advanced processes like five-axis machining increase production expenses.
Deformation Risk: Under extreme heat or pressure, aluminum may deform slightly, affecting performance.
Welding Challenges: Aluminum welding often results in porosity or cracks, requiring specialized techniques like TIG welding.
Mitigating these drawbacks through advanced design and manufacturing techniques enhances impeller reliability, making them a preferred choice despite challenges.
Future Trends In Aluminum Alloy Impeller Development
The evolution of aluminum alloy impellers is driven by technological advancements and industry demands.
Smart Five-Axis Machining
AI-driven tool path optimization and real-time monitoring will enhance precision and reduce production costs by up to 20%.
Advanced Alloys: New alloys like 7075-T651 offer improved heat resistance and fatigue strength, ideal for aerospace and renewable energy.
Sustainable Manufacturing
Optimized casting and machining processes reduce material waste and energy consumption, aligning with eco-friendly goals.
Expanded Applications
Growing demand in renewable energy (e.g., wind turbines), drones, and smart HVAC systems fuels innovation.
Digital Twin Technology
Simulating impeller performance in virtual environments optimizes design and predicts maintenance needs.
These trends align with Industry 4.0, emphasizing automation, sustainability, and data-driven manufacturing. For instance, AI-integrated machining could streamline production, while eco-friendly processes appeal to environmentally conscious markets, ensuring aluminum alloy impellers remain at the forefront of industrial innovation.
How to Choose the Right Aluminum Alloy Impeller
Make informed decisions to select the perfect aluminum alloy impeller for your application.
Choosing an aluminum alloy impeller requires balancing performance, cost, and application needs.
Application Type: Select axial or centrifugal designs based on airflow and pressure requirements.
Performance Needs: Prioritize specifications like airflow volume, pressure, and noise levels.
Material Selection: Opt for 6061 for cost-effective applications or 7075 for high-performance needs.
Supplier Reliability: Choose vendors offering certifications, customization, and robust support.
Engaging with suppliers to discuss customization options ensures impellers meet specific operational demands. For instance, HVAC systems may prioritize low-noise 6061 impellers, while aerospace applications demand precision-crafted 7075 models. Thorough evaluation ensures optimal performance and value.
Challenges In Aluminum Alloy Impeller Manufacturing
Manufacturing aluminum alloy impellers presents several challenges:
- Precision Requirements: Complex geometries demand advanced equipment like five-axis CNC machines, increasing costs.
- Material Sensitivity: Aluminum’s susceptibility to thermal deformation requires precise control of machining parameters.
- Defect Management: Casting processes risk porosity or shrinkage, necessitating rigorous quality control.
- Cost Constraints: Balancing high-quality materials and processes with cost-effective production is challenging.
Solutions include adopting advanced simulation tools like ProCAST to predict defects and optimizing five-axis machining for efficiency. These strategies ensure manufacturers deliver reliable, high-performance impellers while managing production challenges effectively.
Conclusion
Aluminum alloy impellers are pivotal in driving efficiency and performance across industries like HVAC, industrial fans, and aerospace. Their lightweight, corrosion-resistant, and high-strength properties, combined with advanced manufacturing techniques like five-axis machining, make them indispensable. Despite challenges like higher costs and welding difficulties, innovations in materials, smart manufacturing, and sustainable practices are propelling their evolution. From optimizing energy efficiency to powering cutting-edge applications in renewable energy and drones, aluminum alloy impellers are poised for continued growth. By understanding their design, production, and market dynamics, stakeholders can harness their full potential, ensuring they remain a cornerstone of modern industrial technology.
