In present manufacturing, under the speeding up of innovation for advanced equipment sectors such as aerospace, energy and power, and automotive, more stringent requirements have been imposed on the machining of intricate parts. Particularly for three-dimensional integral impellers in turbomachinery with high performance—such as those for aircraft engines, gas turbines, and water pumps—its intricate structure and high accuracy requirement make it extremely challenging to manufacture. Conventional three-axis or five-face machining techniques are quite inadequate to address these requirements. Five-axis simultaneous machining centers have become a dominant solution in such scenarios because of their outstanding machining performance.
The following article will present an in-depth evaluation of the vital production technology by addressing four points: five-axis machining center application in impeller production, workflow of the process, challenges during machining, and tool selection.

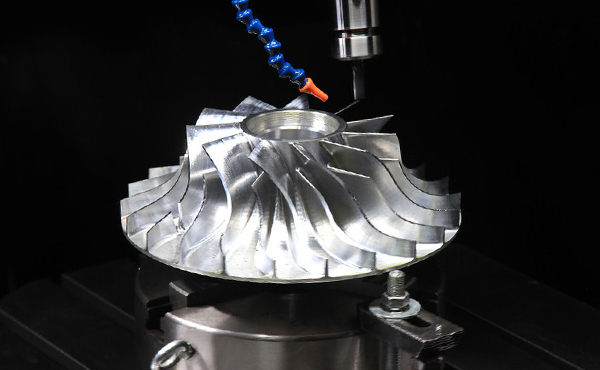

Key Advantages Of Five-Axis Machining Centers In Impeller Machining
Five-axis machining centers realize the simultaneous operation of three linear axes (X, Y, Z) and two rotary axes to position the tool at any spatial angle, making them highly suited to machine complex curved components such as impellers. Compared with three-axis or five-face machining centers, five-axis machining centers have the following key advantages:
- Multi-Angle Machining: Able to complete operations such as complex surface machining, slanted holes, and tilted surfaces in a single setup, reducing the number of times for clamping and improving efficiency.
- High Precision: Five-axis linkage ensures correct tool path and slight machining error, meeting the high-precision requirement of aerospace impellers.
- Adaptability to Complex Shapes: Able to process complex shapes such as non-developable surfaces and twisted blades with ease.
- Shortened Production Cycle: Enhanced tool paths and reduced process transitions significantly enhance production efficiency.
- Improved Surface Quality: Precise control over the orientation of the tool results in improved surface smoothness.
In impeller production, five-axis machining centers can efficiently perform roughing, semi-finishing, finishing, and flow channel machining processes, ensuring the performance and quality of the components.
Impeller Machining Process Overview
Impeller manufacturing is a multifaceted process with many steps, each having specific goals and requirements. Five-axis machining centers help simplify these steps, ensure smooth transitions, and enhance overall efficiency. Here’s an optimized and integrated overview of the typical impeller machining process utilizing five-axis technology:
Roughing
Rapid removal of excess material to establish the general shape of the impeller.
Five-axis machining centers minimize toolpaths to provide even cutting and reduce stress concentration locations. High-efficiency techniques are applied with large-diameter ball-end mills or barrel cutters, high feed rates, and deep cuts to achieve maximum material removal and cutting stability.
Semi-Finishing
Condition the workpiece for finishing by creating a precise shape and providing an even allowance.
This phase advances the blade profiles and flow channels near the final shape without allowing material for the finish pass. Cutting forces are strictly regulated to prevent deformation of thin-walled components. Smooth, uniform surfaces are created with the aim of minimizing the complexity of finish machining.
Finishing
Attain high surface quality and accurate geometric accuracy.
Finishing is related to detail of blade surfaces and flow passages. Through small-diameter ball-end mills and low feed rates and high spindle speed, the tool follows complicated spatial paths precisely. The five-axis simultaneous motion allows optimal tool orientation, which enables high contour fidelity and surface finish.
Flow Passage Machining
Shape complicated internal flow passages of the impeller accurately.
Because of the thin and highly elliptical shape of impeller flow paths, five-axis centers change tool position dynamically in real time to maintain smooth, continuous contact. It prevents overcutting and undercutting and ensures consistent surface quality within the channel.
Post-Processing And Polishing
Enhance functional performance, remove burrs, and improve surface quality.
To meet the stringent surface roughness requirements of companies like aerospace (e.g., Ra < 0.4 μm), additional operations such as precision polishing, deburring, and shot peening are performed. These operations not only improve surface finish of the impeller but also fatigue strength and aerodynamic efficiency.
The multiaxis common linkage of the five-axis machining centers ensures precise, efficient operation throughout all stages of impeller manufacture. From rough machining to finishing and polishing, it yields high-quality results with reduced cycle times and improved component integrity.
Technical Challenges In Machining Three-Dimensional Integral Impellers
Due to their complex shape and high requirement of precision, machining of three-dimensional integral impellers consists of numerous technical challenges. The main problems include the following:
Tool Interference
The proximity of closely packed impeller blades and the narrow flow passages make them susceptible to tool interference with adjacent or previously machined areas. In this scenario, very high accuracy of toolpath planning is required. Advanced CAM software such as NX, PowerMILL, and HyperMILL are employed in high-precision simulation, interference checking, and path optimization to provide safe tool motion in complex spatial environments.
Deformation Of Thin-Walled Structures
Impeller blades usually have wall thicknesses of less than 1.5 mm and, hence, are more susceptible to elastic or plastic deformation caused by cutting forces or heat. Effective measures are:
Minimizing feed forces and managing cutting temperature;
Employing high-rigidity tools and optimized toolpath;
Designing appropriate fixtures so that clamping forces are uniformly distributed and stress concentration is avoided.
Complex Toolpath Generation
The impeller surface is mainly composed of non-developable free-form curves with variable and high curvature in flow channels. Traditional path planning methods cannot generate interference-free and effective machining. Smooth, continuous, and precise toolpaths must be provided by five-axis simultaneous machining under various geometric constraints, which puts very stringent requirements on both the CAM software program and control systems.
Difficult-to-Machine Materials
Inegral impellers are typically made of high-strength material such as superalloys, titanium alloys, or stainless steel. These materials possess proper hardness and toughness and therefore develop higher cutting resistance and high tool wear. Adequate selection of tool material and coating and optimization of cutting parameters for tool life and process stability is therefore necessary.
Irrecoverable Machining Errors
Due to the monolithic nature of the impeller, toolpath deviation, overcut, or machining error is effectively unforgiveable and most often results in part rejection. Hence, first-pass success rate is one of the strongest measures of a manufacturing firm’s ability and process control.
In conclusion, the production of three-dimensional integral impellers must be a very harmonized activity of tool choice, machine operation, and strategy of programming. Systematic optimization of every step of process is required only by this means high-quality production of these complex parts can be ensured.
Tool Selection Strategy For Five-Axis Machining Centers
Tool selection directly affects the quality and efficiency of integral impeller machining. A reasonable tool configuration requires comprehensive consideration of tool type, structure, material, and geometric parameters.
Tool Type Selection
During roughing, large-diameter ball nose end mills or barrel tools are employed. Their multi-flute structure improves cutting efficiency, enabling quick removal of stock material and saving machining time. For completion, small diameter ball nose or tapered ball nose cutters are used to adapt to narrow flow passages and complex surfaces, with good surface quality and high precision. For flow channel machining, thin tools or special flow channel cutters are selected, combined with five-axis linkage simultaneous movement to realize flexible adjustment of tool orientation and effective avoidance of collision.
Tool Structure Design
To ensure tool rigidity and cutting stability, short overhang tools are usually used to reduce deflection. Tapered ball nose cutters are used to enhance overall rigidity, while tools with internal cooling designs provide good heat dissipation, allowing high-efficiency and continuous cutting. These structural optimizations allow for better machining efficiency and tool life, with the guarantee of process stability.
Tool Material And Coating Selection
Tool material and coatings are chosen based on the material of the impeller. For titanium alloys, coated carbide tools (e.g., TiAlN coatings) are recommended because they are resistant to wear and have anti-adhesion properties. For aluminum alloys, uncoated ultra-fine carbide tools are preferable in order to reduce built-up edge. For high-temperature alloys, PCBN or ceramic tools are advisable since they are suitable for high-speed cutting and their wear resistance is very good.
Tool Geometry Parameters
In consideration of tool geometry, roughing is done using large-diameter cutters to improve cutting efficiency, and small-diameter cutters are used for finishing to ensure machining accuracy. Tapered ball nose cutters have greater rigidity and lower vibration, leading to better surface quality. Considering the number of flutes, multi-flute tools are optimal for efficient roughing, but single- or double-flute tools allow better cutting force control during finishing.
By the rational matching of the types, structures, materials, and geometric parameters of tools, the five-axis center machining efficiency and quality of impellers can be significantly improved, with the tool life prolonged for stable and efficient production.
Future Trends In Five-Axis Impeller Machining
With the continuous development of digital and intelligent manufacturing, five-axis machining centers continue to integrate more advanced technologies, driving impeller machining towards higher precision and efficiency. Digital twin and virtual simulation technologies enable the simulation of machining routes and machine operation in advance, which can be used to inspect and avoid actual interference and errors, thereby improving process reliability and safety. Adaptive machining technology provides real-time monitoring of tool conditions and cutting loads, adjusting the machining process in real time to ensure stability and extend tool life maximally. Optimized tool path algorithms such as optimized constant stock removal path planning continuously enhance the consistency and quality of impeller surface machining continuously. Meanwhile, hybrid machining technologies integrating turning-milling composite with additive manufacturing improve the entire machining efficiency and process flexibility.
In the realm of intelligent manufacturing, AI-assisted programming is also emerging as a significant trend. Artificial intelligence calculates optimal cutting parameters and tool paths that reduce human intervention and maximize machining efficiency and accuracy. Big data analysis enables the collection and analysis of important parameters such as cutting forces and tool wear that enable ongoing optimization of the process. The combination of automation combines five-axis machining centers with robots and automatic loading/unloading to achieve full-process automation, significantly promoting production efficiency. At the same time, green manufacturing concepts are being incorporated through taking environmentally friendly cutting fluids and energy-saving machine tools in order to ensure less consumption of energy and reduced environmental pressure to propel sustainable development. The combined application of these technologies will greatly upgrade five-axis impeller machining to a smarter, more efficient, and greener future.
Conclusion
Five-axis machining centers, with their multi-axis linkage, accuracy, and efficiency, have become the first choice for machining complicated impeller surfaces. They significantly improve the machining efficiency and quality, and drive the development of complex surface processing technology continuously. In the entire machining process, from reasonable process planning and tool interference control to scientific tool selection, every step directly affects the success of the machining.
However, impeller machining faces some problems such as tool interference, deformation of thin-walled blades, complex tool path planning, and difficult material processing. These problems call for holistic optimization of tooling, CAM programming, machine tool capability, and machining environment. In order to satisfy future manufacturing’s higher technical and efficiency demands, continued development of five-axis machining processes and enhancement of system integration capabilities are required to remain competitive in the global high-end manufacturing industry.
In the future, the use of intelligent manufacturing technologies will push five-axis machining to achieve further automation and intelligence, providing stronger technical support for aerospace, automotive, and other high-end equipment manufacturing fields. Through the use of scientific tooling selection, process streamlining, and high-technology application, the quality and efficiency of five-axis impeller machining will be further improved, injecting new vitality and momentum into modern manufacturing.
